Unit · PUMP COMBINATION
LA11VO145L4S0APK/40MR+A4VG40DE4DT1/32RR902537011
Pump combination Bosch Rexroth series A11VO, type code LA11VO145L4S0APK/40MR+A4VG40DE4DT1/32R, material number R902537011. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902537011
- Type code
- LA11VO145L4S0APK/40MR+A4VG40DE4DT1/32R
- Group
- A11VO 145
- Edition
- 06/2020

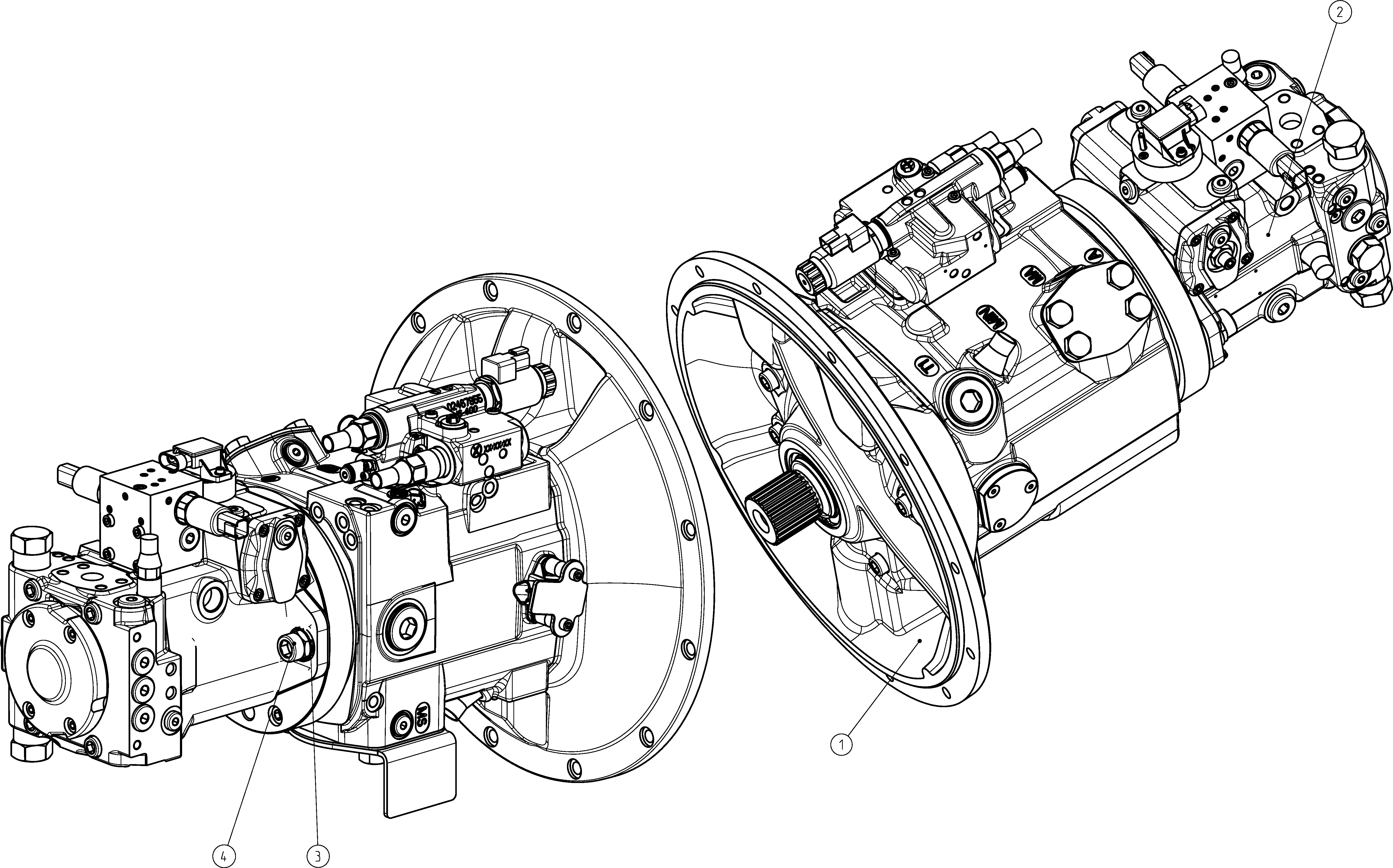

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902537053 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902204554 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650192 | WASHER | 2 | ||
| R910120472 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 145 | 145 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
