Unit · AXIAL-PISTON PUMP
LA15VSO110DRA0V/10MRVD4B11EU0000-0R902537139
Axial piston pump Bosch Rexroth series A15VSO, type code LA15VSO110DRA0V/10MRVD4B11EU0000-0, material number R902537139. Nominal size: NG 110. Axial piston unit: variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar (LA15V). Operating mode: pump, Without charge pump open circuit (SO). Depressurized basic position and external control pressure supply: basic position maximum swivel angle (Vg max), without external control pressure supply (standard for power and pressure controllers) (A). Connector for solenoids: without connector (without solenoid, only for hydraulic control) (0). Swivel angle sensor: optical swivel angle indicator (only for A15VSO) (V). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN (M). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fl uorocarbon rubber) (V). Mounting fl ange: SAE J744 152-4 (D4). Drive shaft: parallel keyed shaft DIN 6885 (not for A15VLO) ø45 (B1). Through drives: flange ISO 3019-2 Hub for splined shaft, prepared for through drive, with pressure-proof plugged cover (U000). Pressure sensors and other sensors: without sensor (0). Standard/special version: standard version (0).
- Number
- R902537139
- Type code
- LA15VSO110DRA0V/10MRVD4B11EU0000-0
- Group
- A15VSO 110
- Edition
- 06/2020

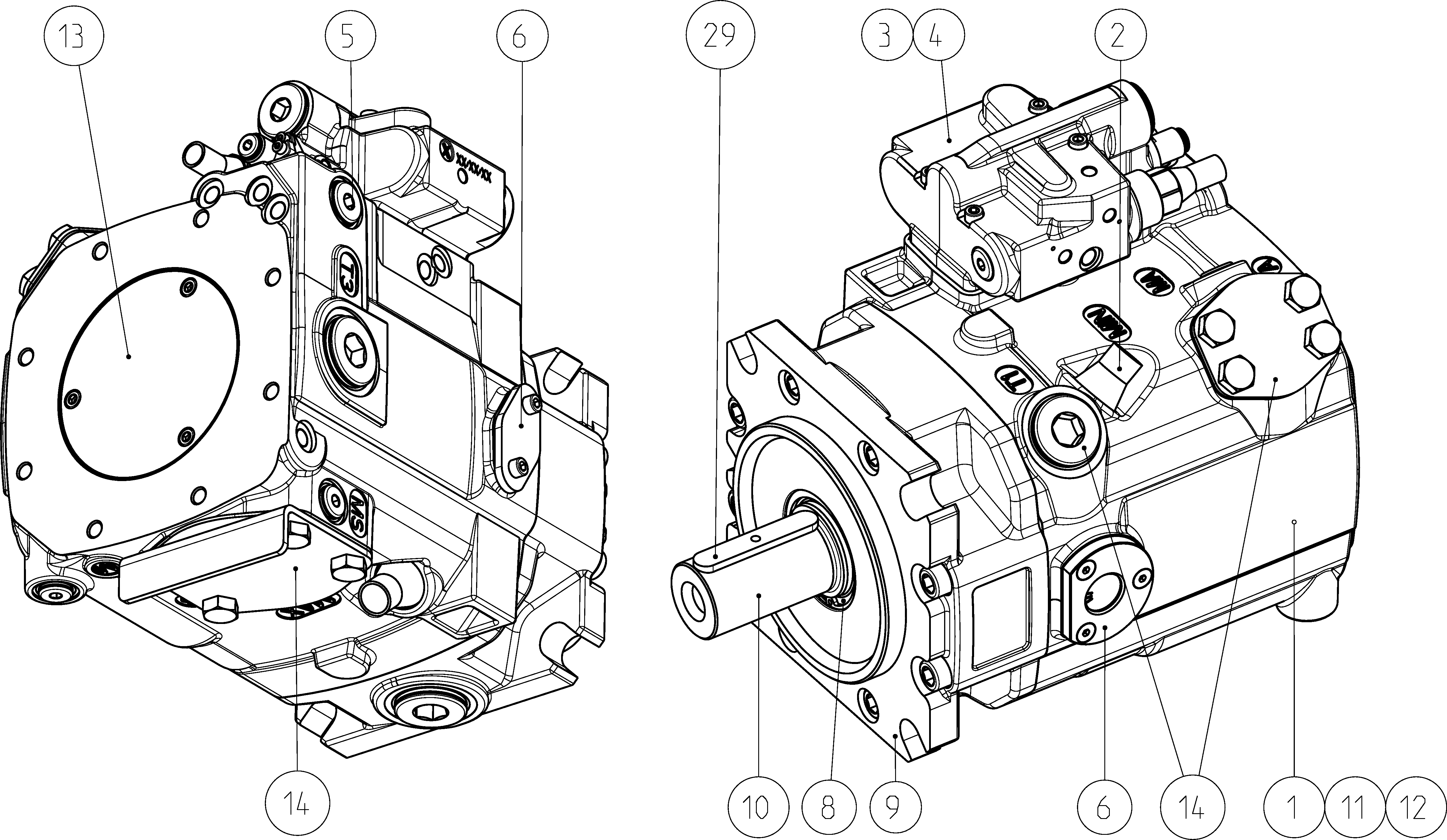

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902537140 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar | LA15V |
| Operating mode | Pump, Without charge pump open circuit | SO |
| Size (NG) | 110 | 110 |
| Depressurized basic position and external control pressure supply | Basic position maximum swivel angle (Vg max), without external control pressure supply (standard for power and pressure controllers) | A |
| Connector for solenoids | Without connector (without solenoid, only for hydraulic control) | 0 |
| Swivel angle sensor | Optical swivel angle indicator (only for A15VSO) | V |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN | M |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fl uorocarbon rubber) | V |
| Mounting fl ange | SAE J744 152-4 | D4 |
| Drive shaft | Parallel keyed shaft DIN 6885 (not for A15VLO) ø45 | B1 |
| Through drives | Flange ISO 3019-2 Hub for splined shaft, prepared for through drive, with pressure-proof plugged cover | U000 |
| Pressure sensors and other sensors | Without sensor | 0 |
| Standard/special version | Standard version | 0 |
