Unit · ADJUSTING PIECE

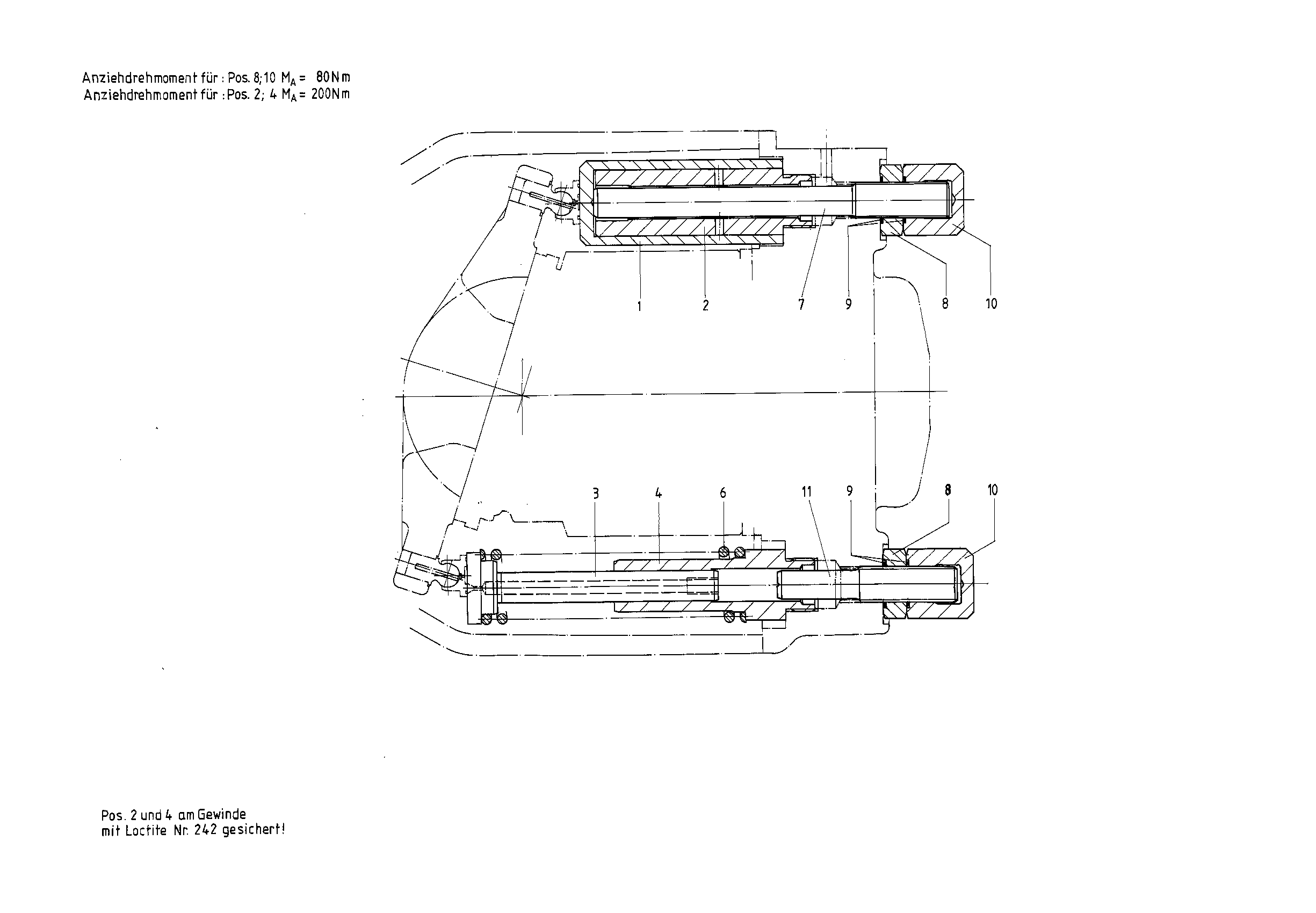

ADJUSTING PIECE A10V140/31 MA -VR902538158
Adjusting piece Bosch Rexroth series A10V, type code ADJUSTINGPIECEA10V140/31MA-V, material number R902538158.
- Number
- R902538158
- Type code
- ADJUSTING PIECE A10V140/31 MA -V
- Group
- A10V 140
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910917585 | ADJUSTING PISTON | 1 | ||
| 2 | R902533337 | PISTON GUIDE | 1 | |
| 3 | R910917588 | OPPOSED PISTON | 1 | |
| R910917590 | PISTON GUIDE | 1 | ||
| 6 | R910917578 | SPRING | 1 | |
| 7 | R902538234 | STOP SCREW | 1 | |
| 11 | R902538202 | STOP SCREW | 1 |
