Unit · AXIAL-PISTON PUMP
A A20VO 520 LR3DN /10L-VZH26K17 -S2106R902538265
Axial piston pump Bosch Rexroth series A20VO, type code AA20VO520LR3DN/10L-VZH26K17-S2106, material number R902538265. Nominal size: NG 520. Axial piston unit: swashplate design, variable (back to back version) (A20V). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 8-hole (H). Working port: SAE flanges, two port B laterally opposite and one port S offset 90°, metric fastening thread (26). Special version no. 2106.
- Number
- R902538265
- Type code
- A A20VO 520 LR3DN /10L-VZH26K17 -S2106
- Group
- A20VO 520
- Edition
- 06/2020

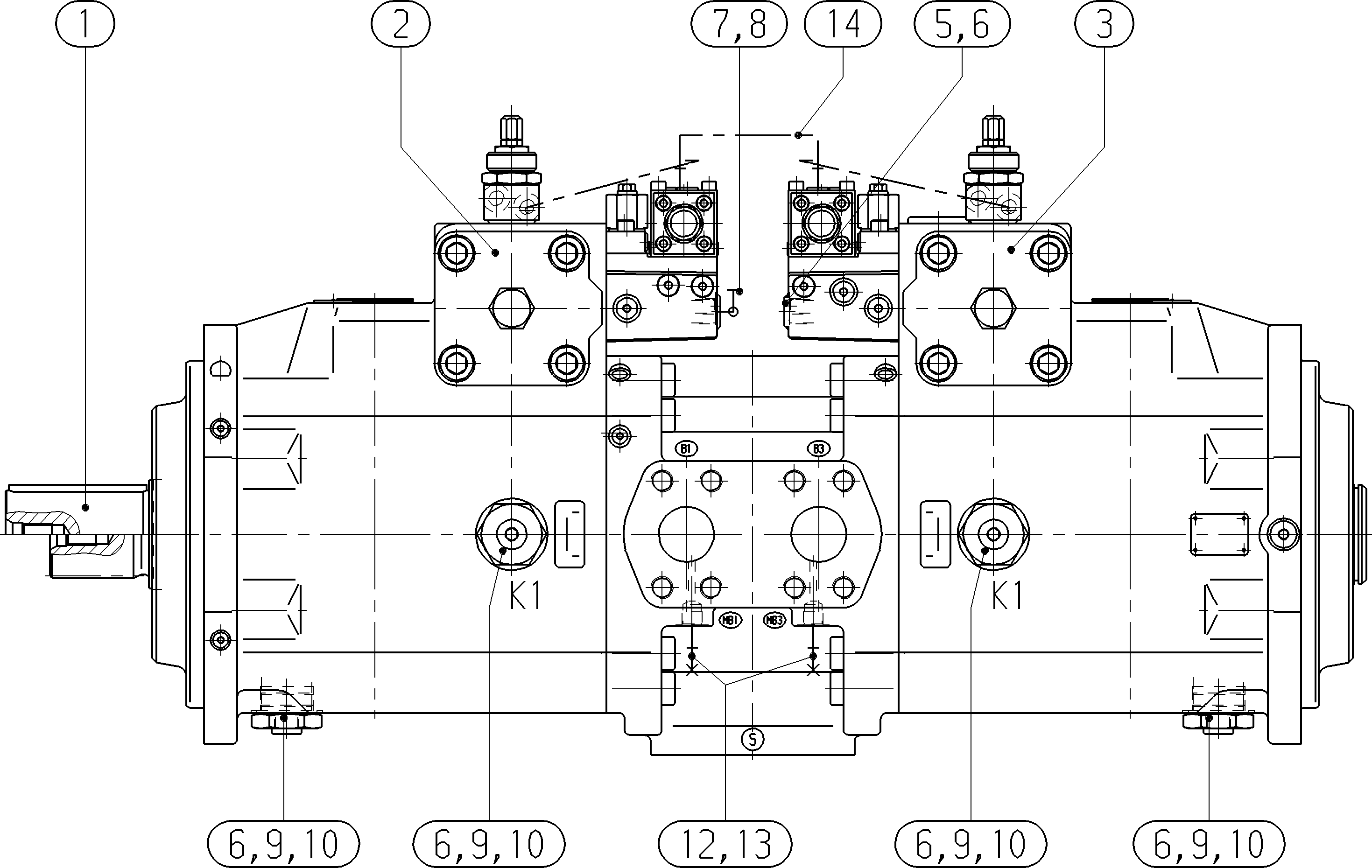

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902537498 | BASE UNIT Assembly parts list →L | 1 | ||
| R902530789 | REGULATOR Assembly parts list →L | 1 | ||
| R902530788 | REGULATOR Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909156654 | SCREW PLUG | 5 | ||
| R910778788 | THREADED FASTENER | 1 | ||
| R910903350 | THREADED FASTENER | 1 | ||
| R910926178 | REDUCTION THREADED JOINT | 4 | ||
| R910600822 | SEAL RING | 4 | ||
| R910755788 | THREADED FASTENER | 2 | ||
| R910968233 | DUMMY | 2 | ||
| R910999726 | PIPING PLAN Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| R902564147 | SHIPPING PROTECTION | 1 | ||
| 81 | R902602008 | SEAL SCREW | 2 | |
| 82 | R910734667 | PLUG | 1 | |
| 83 | R910723126 | PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 520 | 520 |
| Controls for size 520 92050, 92064 | LR3DN | |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 8-hole | H |
| Working port | SAE flanges, two port B laterally opposite and one port S offset 90°, metric fastening thread | 26 |
