Unit · AXIAL-PISTON MOTOR

A A6VLM 250 DA /63W2-VZB027F BR902538852

Axial piston motor Bosch Rexroth series A6VM, type code AA6VLM250DA/63W2-VZB027FB, material number R902538852. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).

Number
R902538852
Type code
A A6VLM 250 DA /63W2-VZB027F B
Group
A6VLM 250
Edition
06/2020

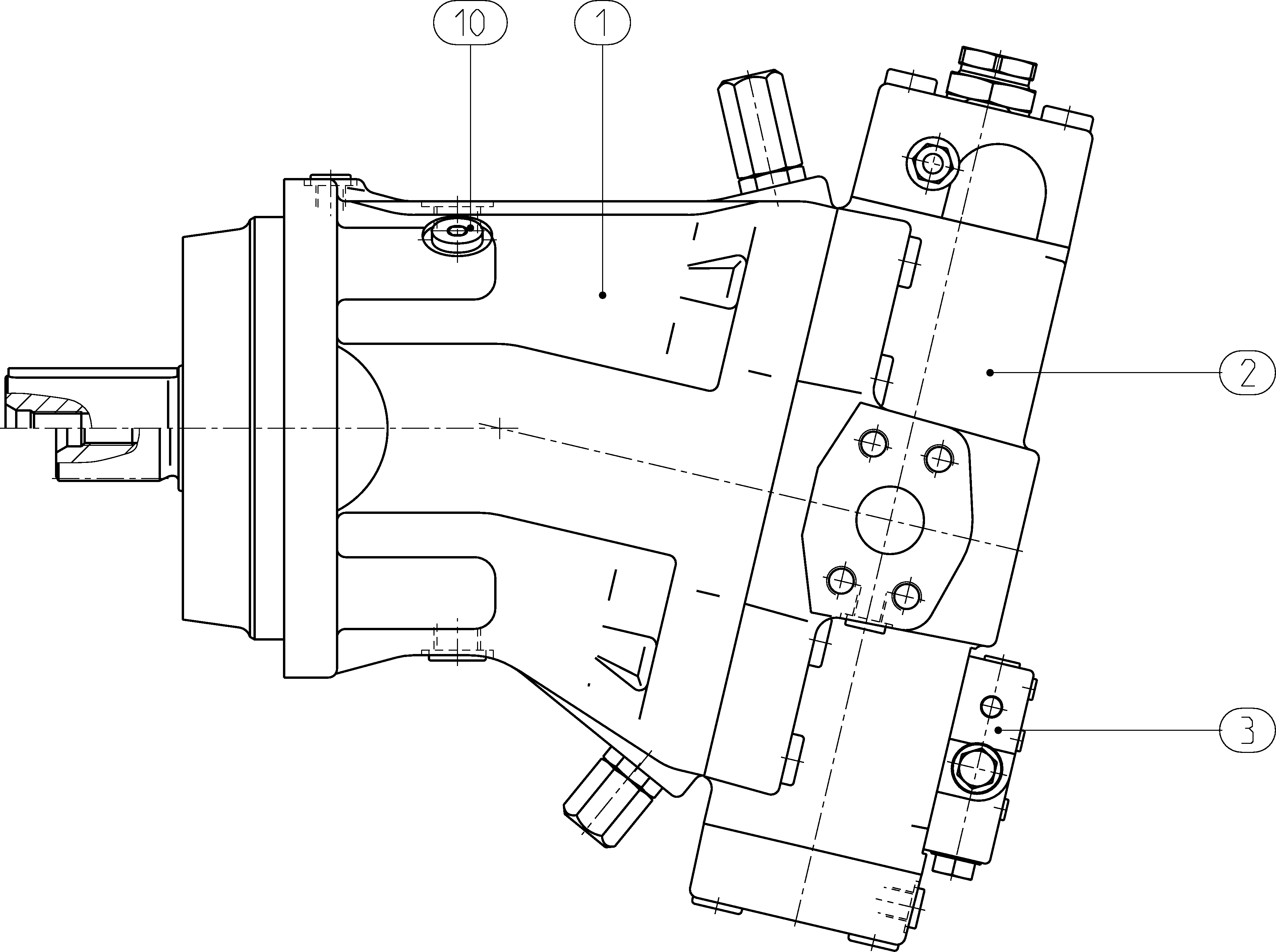

A A6VLM 250 DA /63W2-VZB027F B — Drawing
Pos.NumberNameQtyAdd to inquiry
R902467809BASE UNIT Assembly parts list →L1
R902538855CONTROL Assembly parts list →L1
R910800755FLUSH/BOOST PRESSURE VALVE1
R902151719FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitBent-axis design, variableA6V
Drive shaft bearingLong-life bearingL
Operating modeMotorM
Size (NG)250250
Control deviceAutomatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valveDA
SeriesSeries 6, index 363
Direction of rotationViewed on drive shaft variableW
Setting ranges for displacementVg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max2
Sealing materialFKM (fluoroelastomer)V
Drive shaftSplined shaft DIN 5480Z
Mounting flangeISO 3019-2 4-holeB
Working portSAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7027
Beginning of controlAt Vg max (standard for HD, HZ, EP, EZ, DA)B
