Unit · AXIAL-PISTON PUMP

P A4VSG 250 HD1DT /30R-PZB10KB59NR902538912

Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG250HD1DT/30R-PZB10KB59N, material number R902538912. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 2-hole 1 1/4 in 14T 12/24DP (KB5). Valves: SDVB valve block mounted (9). Filtration: without filter (N).

Number: R902538912
Type code: P A4VSG 250 HD1DT /30R-PZB10KB59N
Group: A4VSG 250
Edition: 06/2020

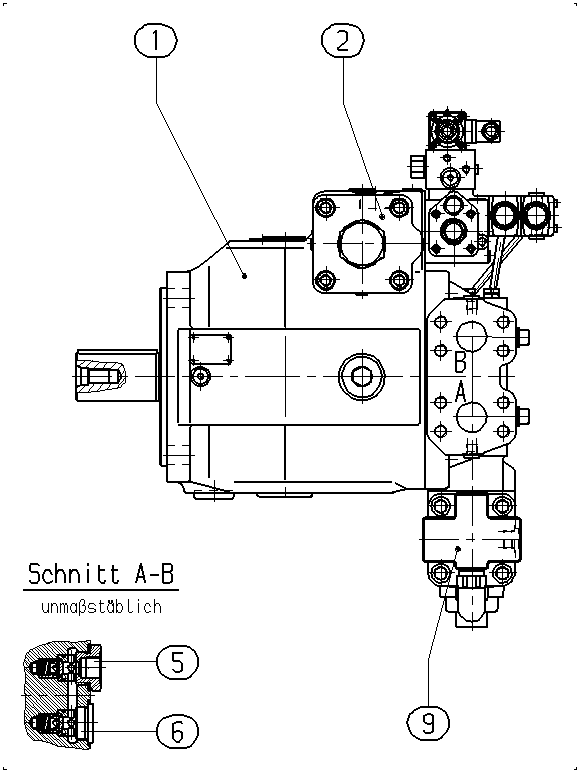

P A4VSG 250 HD1DT /30R-PZB10KB59N — Drawing

Pos.	Number	Name	Qty
	R902510067	BASE UNIT Assembly parts list →L	1
	R910998615	CONTROL Assembly parts list →L	1
	R910948834	VALVE MOUNTING KIT	1
	R910944807	VALVE MOUNTING KIT	1
	R910902407	FLUSHING BLOCK Assembly parts list →L	1
61	R902805709	SHIPPING PROTECTION	2
62	R902602206	SEAL SCREW	1
64	R902602013	SEAL SCREW	1
65	R902602013	SEAL SCREW	1
71	R902568998	FLANGE COVER Assembly parts list →L	1
81	R902602010	SEAL SCREW	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 350 bar, maximum pressure	A4VS
Operating mode	Pump, closed circuit	G
Series	Series 3, index 0	30
Direction of rotation	Viewed on drive shaft clockwise	R
Drive shaft	Splined shaft DIN 5480	Z
Mounting flange	Based on ISO 3019-2 metric 4-hole	B
Working port	SAE flange ports A and B, located on same side, metric fastening thread	10
Through-drive	125, 2-hole 1 1/4 in 14T 12/24DP	KB5
Valves	SDVB valve block mounted	9
Filtration	Without filter	N

Other versions 1

R902538914 PL A4VSG 250 HD1DT /30R-PZB10KB59N
