Unit · CONTROL VALVE
CONTROL VALVE ZVK A4VS ZDRG/30 V -&R902539135
Control valve Bosch Rexroth series A4VSZDR, type code CONTROLVALVEZVKA4VSZDRG/30V-&, material number R902539135.
- Number
- R902539135
- Type code
- CONTROL VALVE ZVK A4VS ZDRG/30 V -&
- Group
- CONTROL VALVE
- Edition
- 05/2020

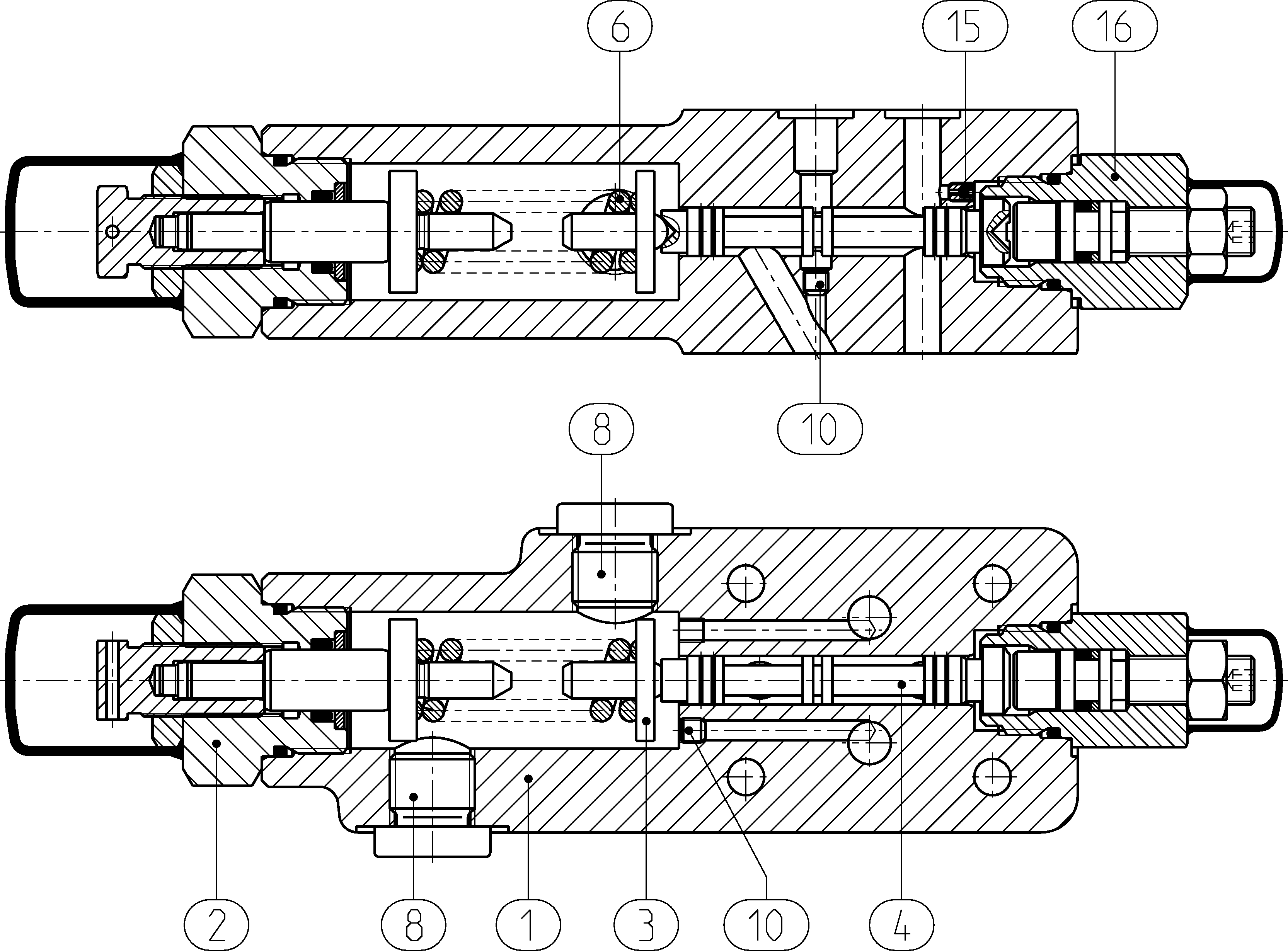

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984824 | VALVE HOUSING | 1 | ||
| R902532285 | CONTROL Assembly parts list →L | 1 | ||
| R910799793 | SPRING DISK | 1 | ||
| R910921026 | VALVE SPOOL | 1 | ||
| R910908077 | COMPRESSION SPRING | 1 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R910914741 | SETSCREW | 2 | ||
| R910902590 | NOZZLE | 1 | ||
| R910960600 | STROKE LIMITER Assembly parts list →L | 1 | ||
| 61 | R900156528 | PLATE | 1 | |
| 62 | R900156528 | PLATE | 1 | |
| 91 | R902556829 | NAMEPLATE | 1 | |
| 92 | R909084286 | GROOVED NAIL | 2 |
