Unit · CONTROL VALVE
CONTROL VALVE ZVK A4VS ZDRG/Y/30 P&R902539157
Control valve Bosch Rexroth series A4VSZDR, type code CONTROLVALVEZVKA4VSZDRG/Y/30P&, material number R902539157.
- Number
- R902539157
- Type code
- CONTROL VALVE ZVK A4VS ZDRG/Y/30 P&
- Group
- CONTROL VALVE
- Edition
- 05/2020

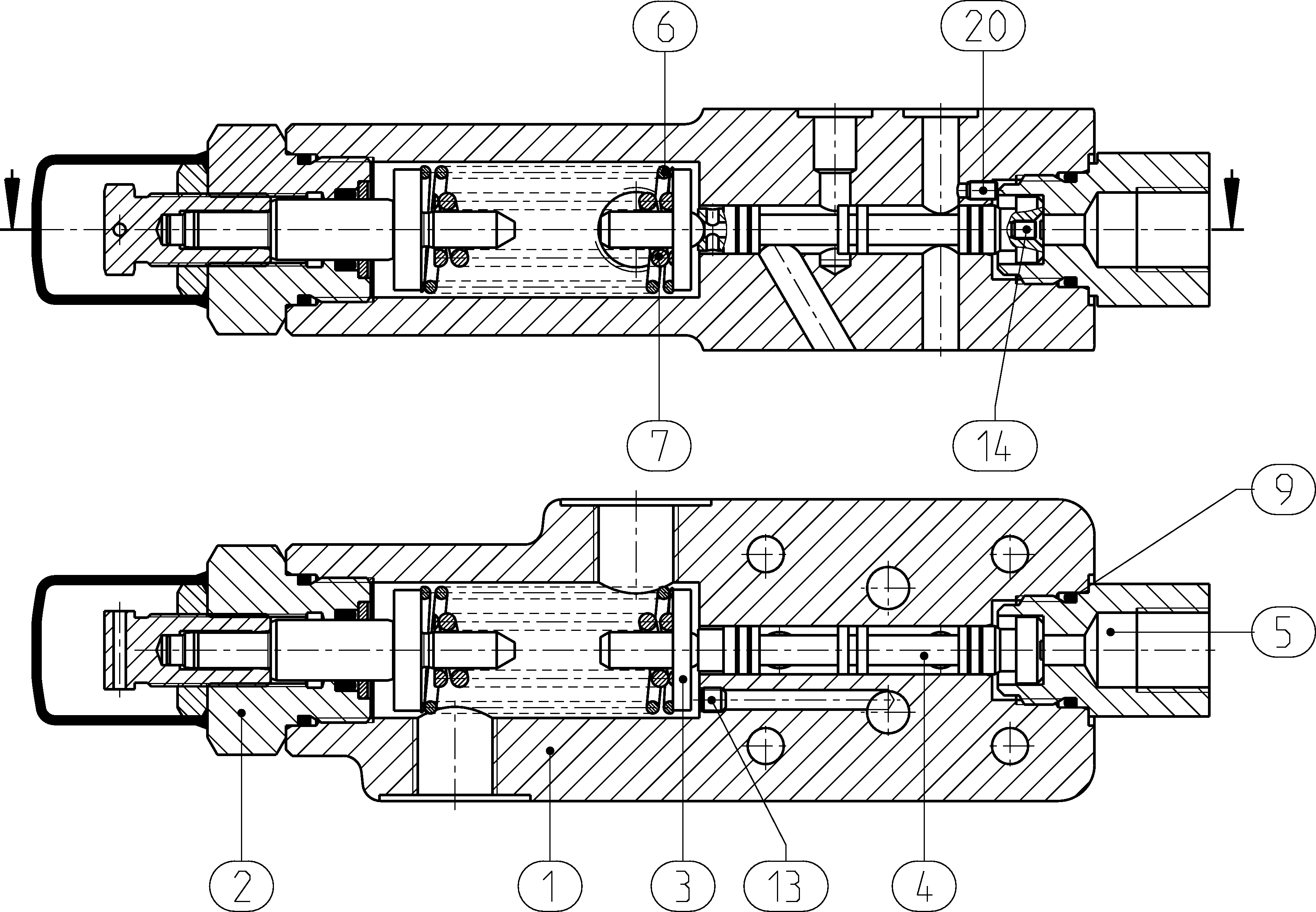

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910799866 | VALVE HOUSING | 1 | ||
| R902532286 | CONTROL Assembly parts list →L | 1 | ||
| R910799793 | SPRING DISK | 1 | ||
| R910799807 | VALVE SPOOL | 1 | ||
| R910904169 | REDUCTION THREADED JOINT | 1 | ||
| R910957585 | COMPRESSION SPRING | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 | ||
| R910401803 | O-RING | 1 | ||
| R910914741 | SETSCREW | 1 | ||
| R910902590 | NOZZLE | 1 | ||
| R910118923 | SETSCREW | 1 | ||
| 61 | R900156528 | PLATE | 1 | |
| 62 | R900156528 | PLATE | 1 | |
| 81 | R902602008 | SEAL SCREW | 3 | |
| 91 | R902556829 | NAMEPLATE | 1 | |
| 92 | R909084286 | GROOVED NAIL | 2 |
