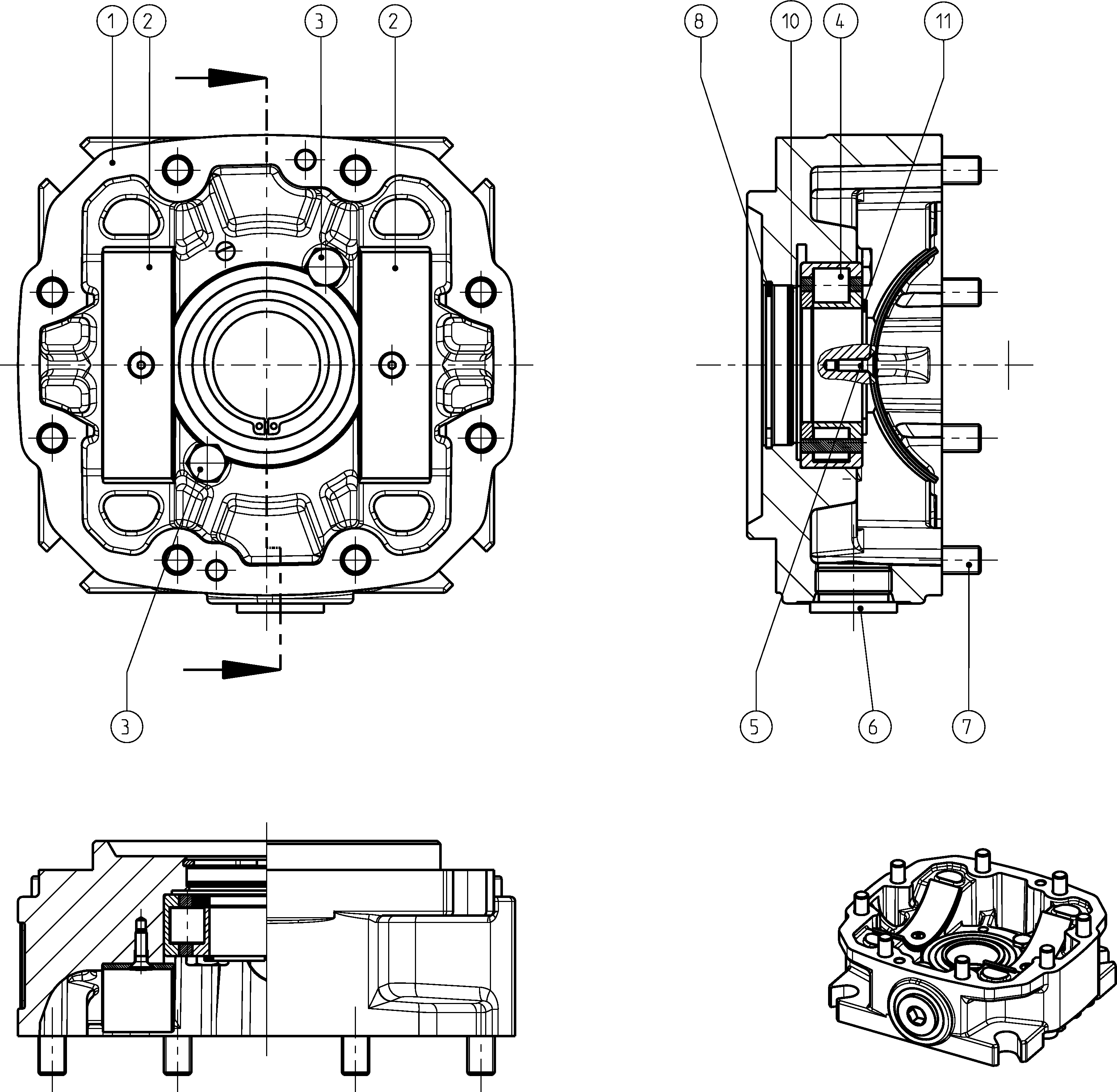

Unit · BEARING FLANGE
BEARINGFLANGEA15V110/10AD4KOMPL&R902540549
Axial piston pump Bosch Rexroth series A15V, type code BEARINGFLANGEA15V110/10AD4KOMPL&, material number R902540549.
- Number
- R902540549
- Type code
- BEARINGFLANGEA15V110/10AD4KOMPL&
- Group
- BEARING FLANGE
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902540548 | BEARING FLANGE | 1 | ||
| R902561103 | BEARING SHELL | 2 | ||
| R902484456 | STOP SCREW | 2 | ||
| R910978477 | CYL. ROLLER BEARING | 1 | ||
| R902571999 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902601857 | SCREW PLUG | 1 | ||
| R902600353 | SOCKET HEAD CAP SCREW | 8 | ||
| R910106046 | RETAINING RING | 1 | ||
| R909830716 | SHIM RING | 2 | ||
| R910114677 | RETAINING RING | 1 |
