Unit · PUMP COMBINATION
LA11VLO210DRS0+A10VG45EP4D1/10R-M090R902541723
Pump combination Bosch Rexroth series A11VO, type code LA11VLO210DRS0+A10VG45EP4D1/10R-M090, material number R902541723. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller with load-sensing (DRS).
- Number
- R902541723
- Type code
- LA11VLO210DRS0+A10VG45EP4D1/10R-M090
- Group
- A11VLO 210
- Edition
- 06/2020

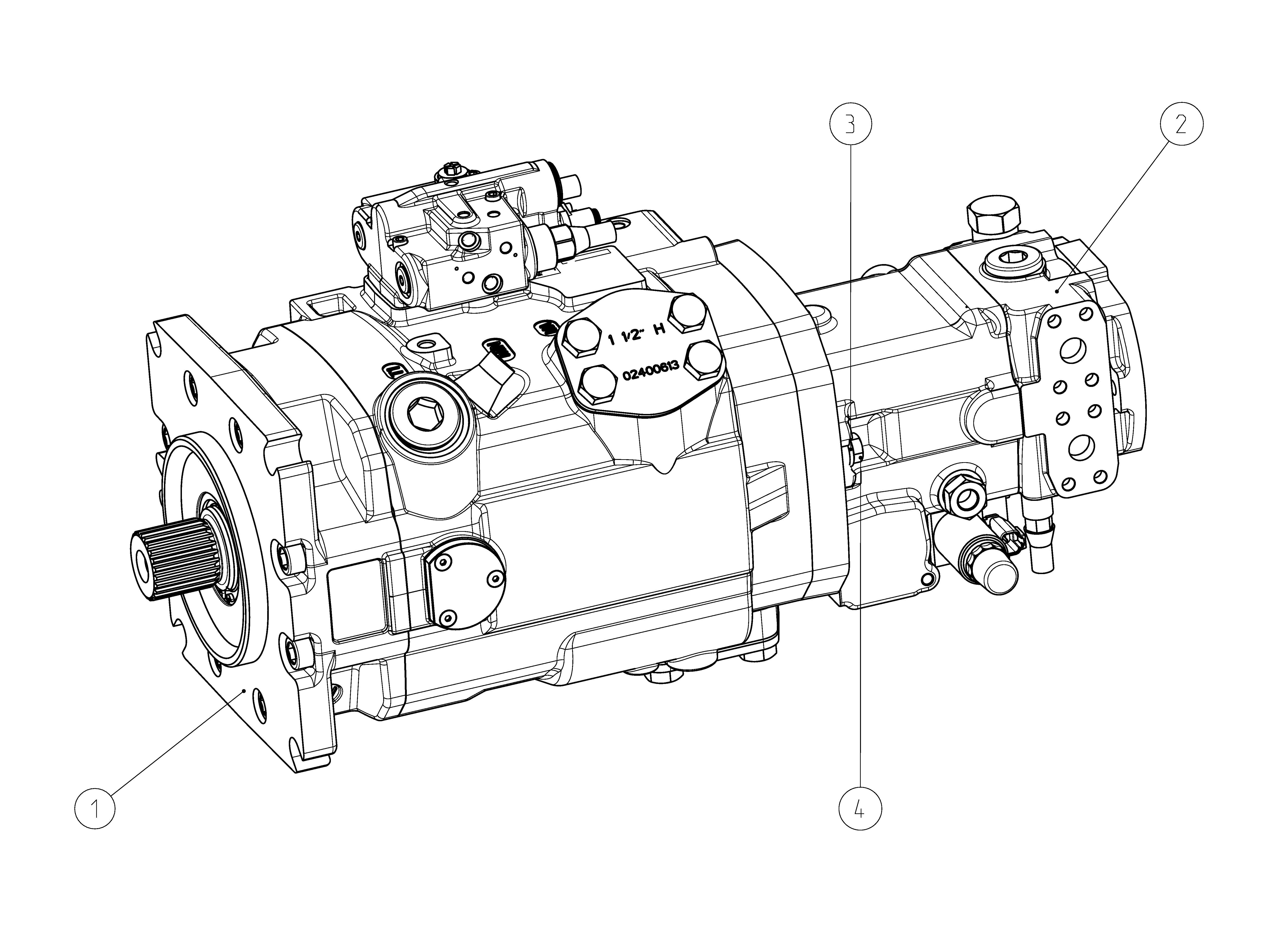

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902541722 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902241675 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650190 | WASHER | 2 | ||
| R910104914 | HEXAGON SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 210 | 210 |
| Control device | Pressure controller with load-sensing | DRS |
| Index | Size 40 … 130 | 0 |
