Unit · BASE UNIT
GA4VSG71'HD'M/11R-VPB10K01R902542339
Base unit Bosch Rexroth series A4VSO, type code GA4VSG71'HD'M/11R-VPB10K01, material number R902542339. Nominal size: NG 71. Axial piston unit: swashplate design (A4VSG).
- Number
- R902542339
- Type code
- GA4VSG71'HD'M/11R-VPB10K01
- Group
- A4VSG 71
- Edition
- 06/2020

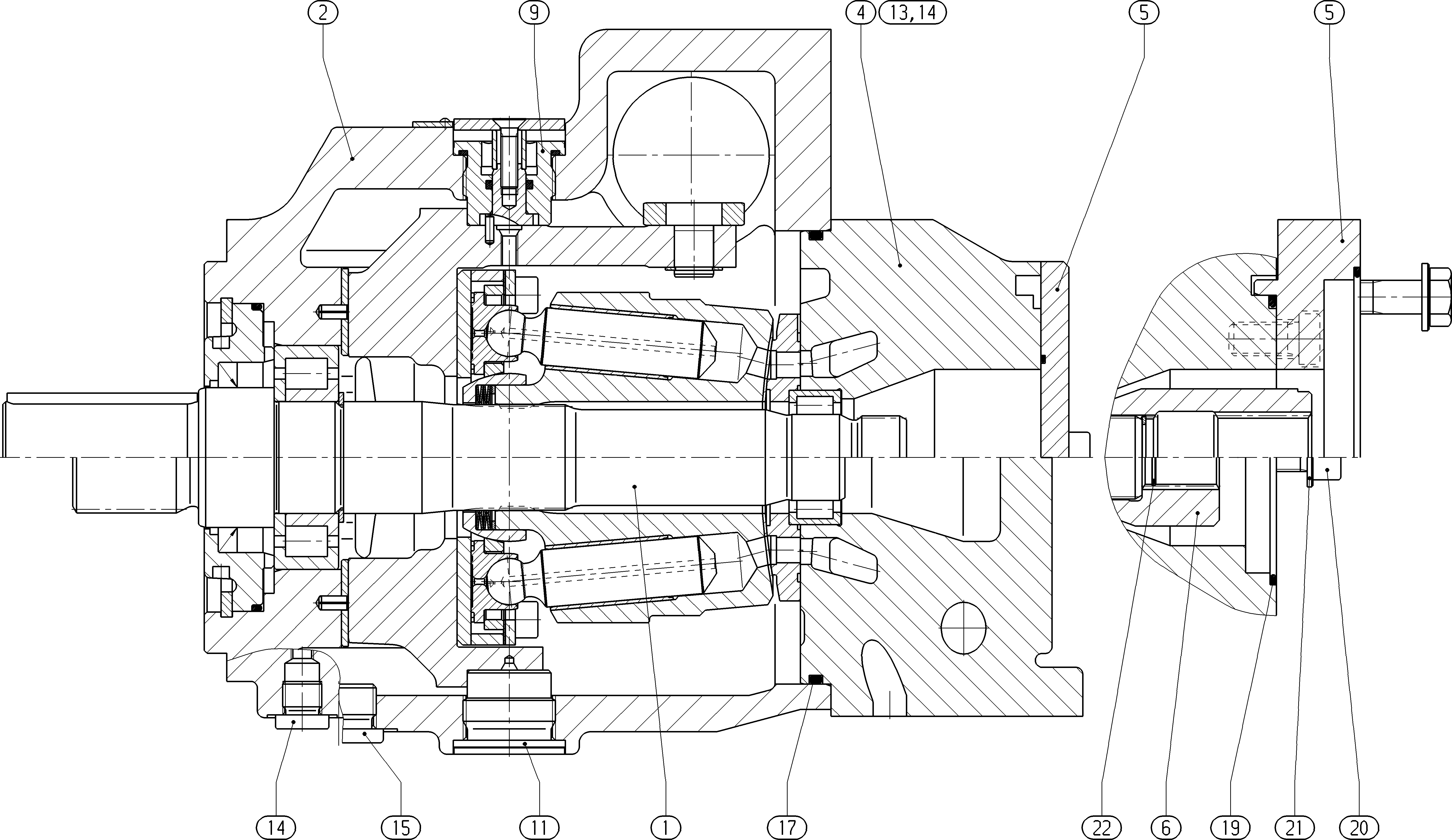

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418713 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910921400 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910944356 | SPLINED COUPLING | 1 | ||
| R910929468 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| R909156984 | SCREW PLUGD | 3 | ||
| R910929999 | O-RINGD | 1 | ||
| R910357049 | O-RINGD | 1 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 71 | 71 |
