Unit · CONTROL

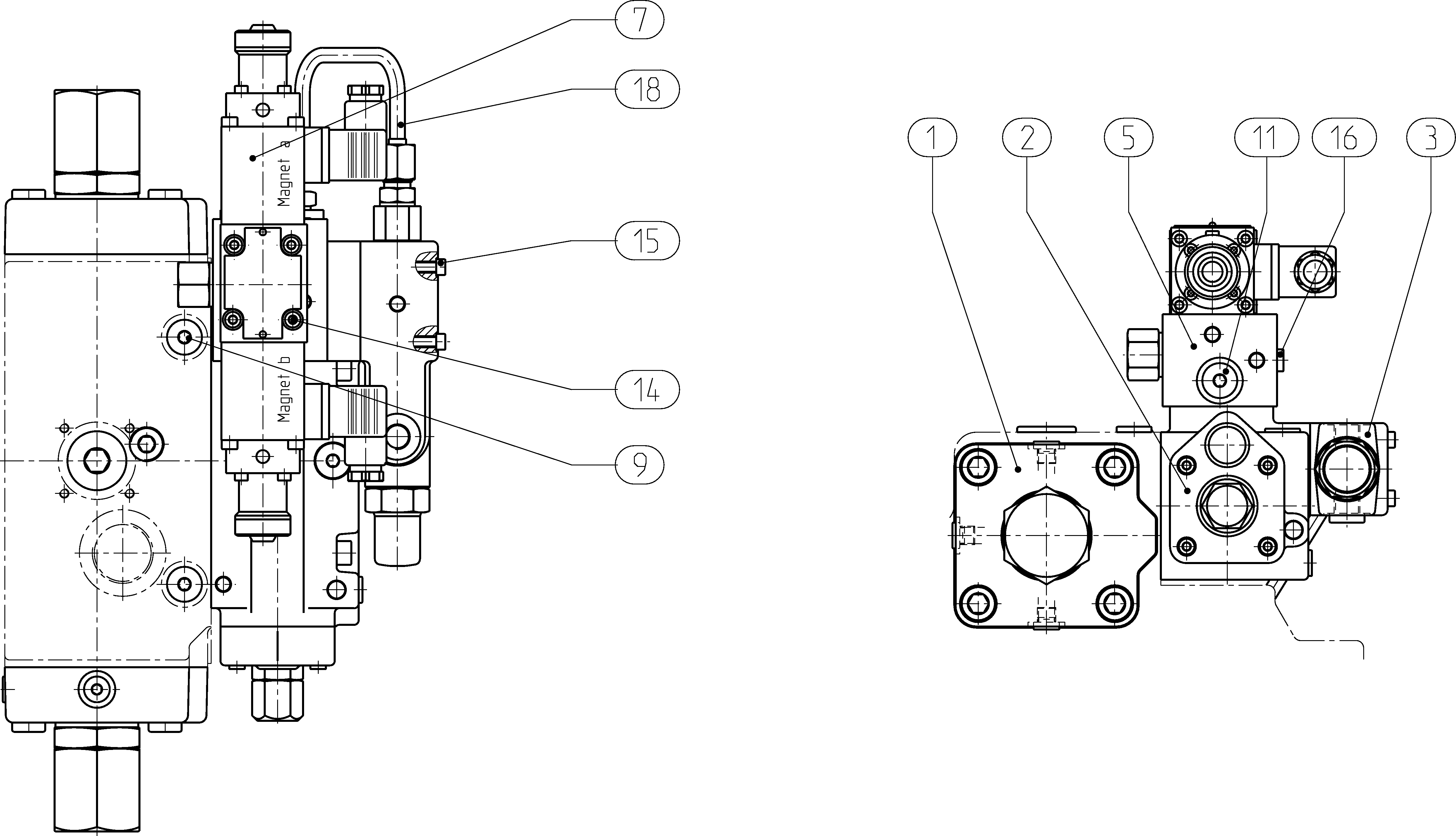

V A4VSG 180 HD1GBT/30R-VR902542347
Control Bosch Rexroth series A4VSO, type code VA4VSG180HD1GBT/30R-V, material number R902542347. Nominal size: NG 180. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902542347
- Type code
- V A4VSG 180 HD1GBT/30R-V
- Group
- A4VSG 180
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902401809 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992874 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989398 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989092 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902405796 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156863 | SCREW PLUG | 3 | ||
| R902403696 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 180 | 180 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T | |
| Series | Series 3, index 0 | 30 |
