Unit · PUMP COMBINATION
LA11VO110DRS0A00/40MR+A4VG105EP4DT1/32RR902542436
Pump combination Bosch Rexroth series A11VO, type code LA11VO110DRS0A00/40MR+A4VG105EP4DT1/32R, material number R902542436. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller with load-sensing (DRS).
- Number
- R902542436
- Type code
- LA11VO110DRS0A00/40MR+A4VG105EP4DT1/32R
- Group
- A11VO 110
- Edition
- 06/2020

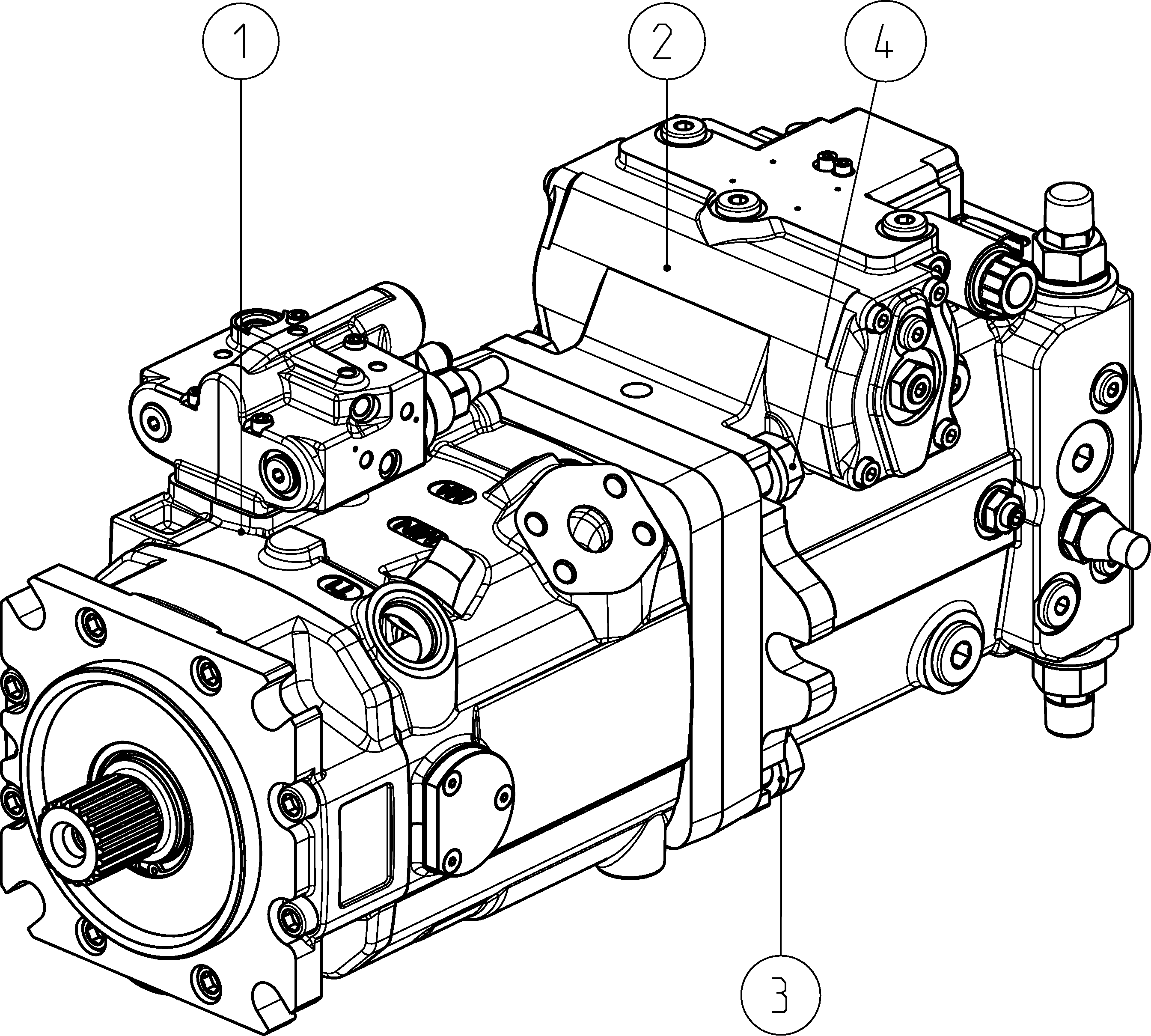

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902562511 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902241902 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909436988 | WASHER | 4 | ||
| R909152538 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 110 | 110 |
| Control device | Pressure controller with load-sensing | DRS |
| Index | Size 40 … 130 | 0 |
