Unit · CONTROL
V A6V M 250 EP2D /63-V020E -SO217R902542440
Control Bosch Rexroth series A6VM, type code VA6VM250EP2D/63-V020E-SO217, material number R902542440. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Swivel angle sensor: electric swivel angle sensor (E). Standard/special version: special version (-S). Special version no. 217.
- Number
- R902542440
- Type code
- V A6V M 250 EP2D /63-V020E -SO217
- Group
- A6VM 250
- Edition
- 06/2020

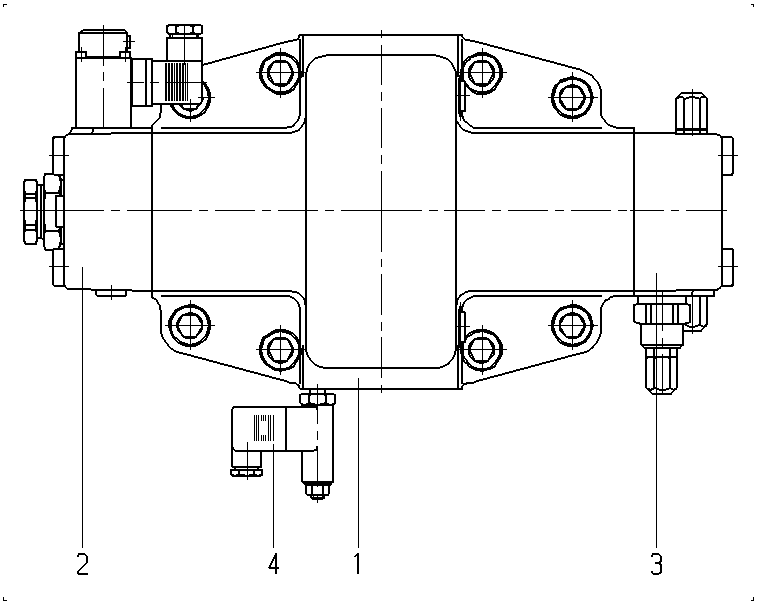

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405430 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910934354 | CONTROL PART Assembly parts list →L | 1 | ||
| R902542441 | COVER Assembly parts list →L | 1 | ||
| R910927063 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Swivel angle sensor | Electric swivel angle sensor | E |
| Standard/special version | Special version | -S |
