Unit · AXIAL-PISTON PUMP
LA11VLO210L5S4AP0/40MRVG3A21SA3S20-0R902543069
Axial piston pump Bosch Rexroth series A11VO, type code LA11VLO210L5S4AP0/40MRVG3A21SA3S20-0, material number R902543069. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: SAE J (SAE 3) (G).
- Number
- R902543069
- Type code
- LA11VLO210L5S4AP0/40MRVG3A21SA3S20-0
- Group
- A11VLO 210
- Edition
- 06/2020

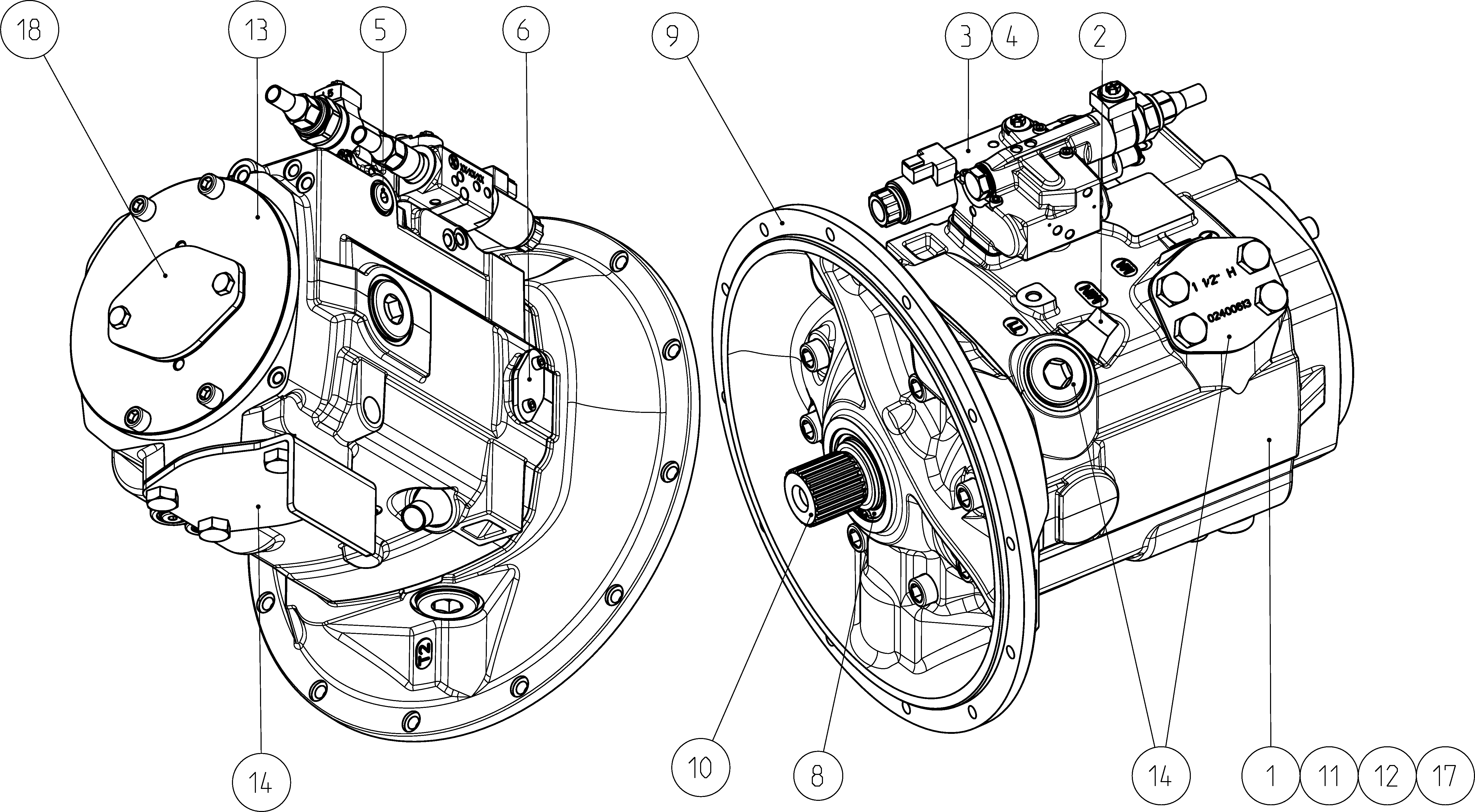

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 0 | R902543067 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 210 | 210 |
| Index | Size 40 … 130 | 0 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | SAE J (SAE 3) | G |
