Unit · BASE UNIT
GA10VZG18DR/10W1-VRC02N00HR902543626
Base unit Bosch Rexroth series A10FZO, type code GA10VZG18DR/10W1-VRC02N00H, material number R902543626. Nominal size: NG 18. Axial piston unit: swashplate design, variable (A10V). Application area: variable-speed drives (Z). Sealing material 003: FKM (fluorocarbon rubber) (V). Drive shaft 003: splined shaft ISO 3019-1 similar to shaft "S" however for higher torque (R). Through drive: without through drive (N00). Connector for solenoids 003: HIRSCHMANN connector – without suppressor diode (H).
- Number
- R902543626
- Type code
- GA10VZG18DR/10W1-VRC02N00H
- Group
- A10VZG 18
- Edition
- 06/2020

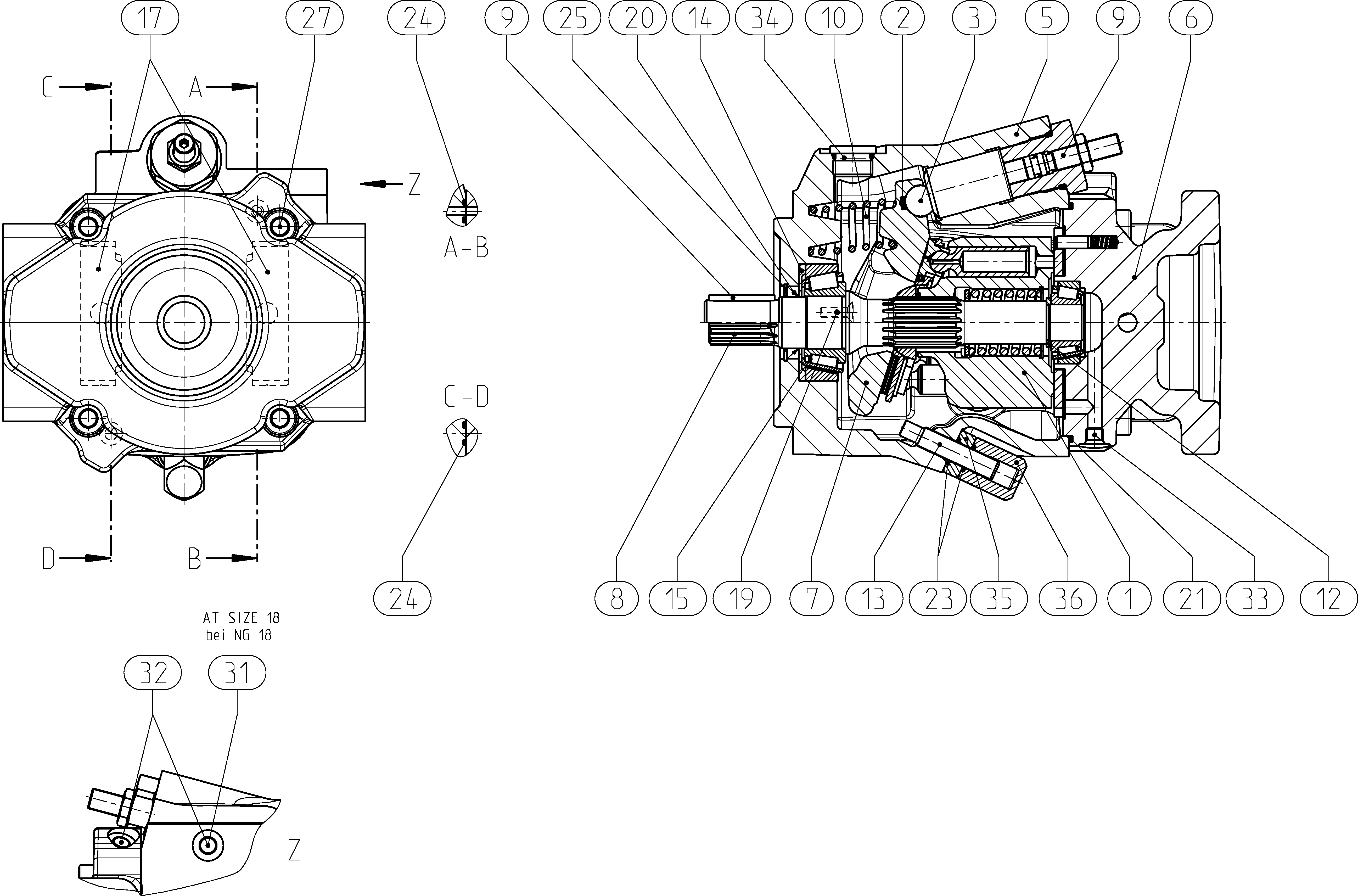

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902543728 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902544066 | PUMP HOUSING | 1 | ||
| R902535095 | CONNECTION PLATE | 1 | ||
| R902543578 | SWASH PLATE | 1 | ||
| R902413744 | DRIVE SHAFT | 1 | ||
| R902543627 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902455142 | COMPRESSION SPRING | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R902464777 | STOP SCREW | 1 | ||
| R902545736 | STOP RING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R909086994 | TAPERED-ROLLER BEARING | 1 | |
| R902454900 | BEARING SHELL | 1 | ||
| 18 | R902454899 | BEARING SHELL | 1 | |
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910404209 | O-RING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R910940735 | R-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910806668 | SOCKET HEAD CAP SCREW | 4 | ||
| 30 | R910901969 | SCREW PLUG | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910757519 | STRAIGHT PIN | 1 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| 37 | R909152074 | SLOTTED SPRING PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A10V |
| Application area | Variable-speed drives | Z |
| Size (NG) | 18 | 18 |
| Series | Series 1, index 0 | 10 |
| Sealing material 003 | FKM (fluorocarbon rubber) | V |
| Drive shaft 003 | Splined shaft ISO 3019-1 similar to shaft "S" however for higher torque | R |
| Through drive | without through drive | N00 |
| Connector for solenoids 003 | HIRSCHMANN connector – without suppressor diode | H |
