Unit · AXIAL-PISTON PUMP
A A4VSO 71 DP /10R-PZB13K68 CS2271R902544868
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO71DP/10R-PZB13K68CS2271, material number R902544868. Nominal size: NG 71. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z).
- Number
- R902544868
- Type code
- A A4VSO 71 DP /10R-PZB13K68 CS2271
- Group
- A4VSO 71
- Edition
- 06/2020

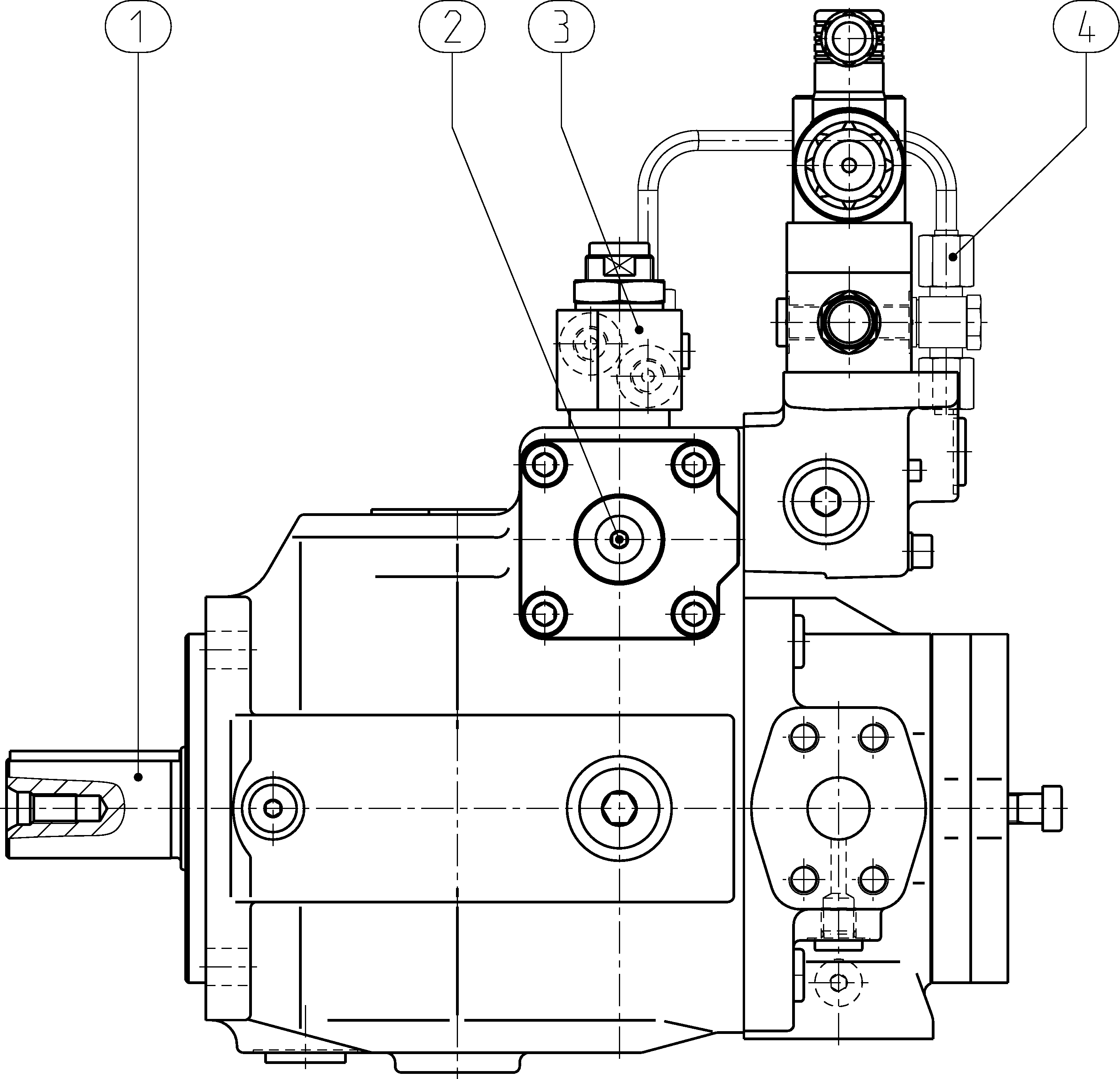

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902425120 | BASE UNIT Assembly parts list →L | 1 | ||
| R902544869 | REGULATOR Assembly parts list →L | 1 | ||
| R902448233 | THROTTLE VALVE Assembly parts list →L | 1 | ||
| R902544875 | PIPING Assembly parts list →L | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 71 | R902602977 | FLANGE COVER | 1 | |
| 81 | R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Through-drive | 2271 | 2271 |
