Unit · AXIAL-PISTON PUMP
LA11VLO280L4DRE2CPK+L10VO45ED72+AZPN &R902544947
Axial piston pump Bosch Rexroth series A11VO, type code LA11VLO280L4DRE2CPK+L10VO45ED72+AZPN&, material number R902544947. Nominal size: NG 280. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO).
- Number
- R902544947
- Type code
- LA11VLO280L4DRE2CPK+L10VO45ED72+AZPN &
- Group
- A11VLO 280
- Edition
- 06/2020

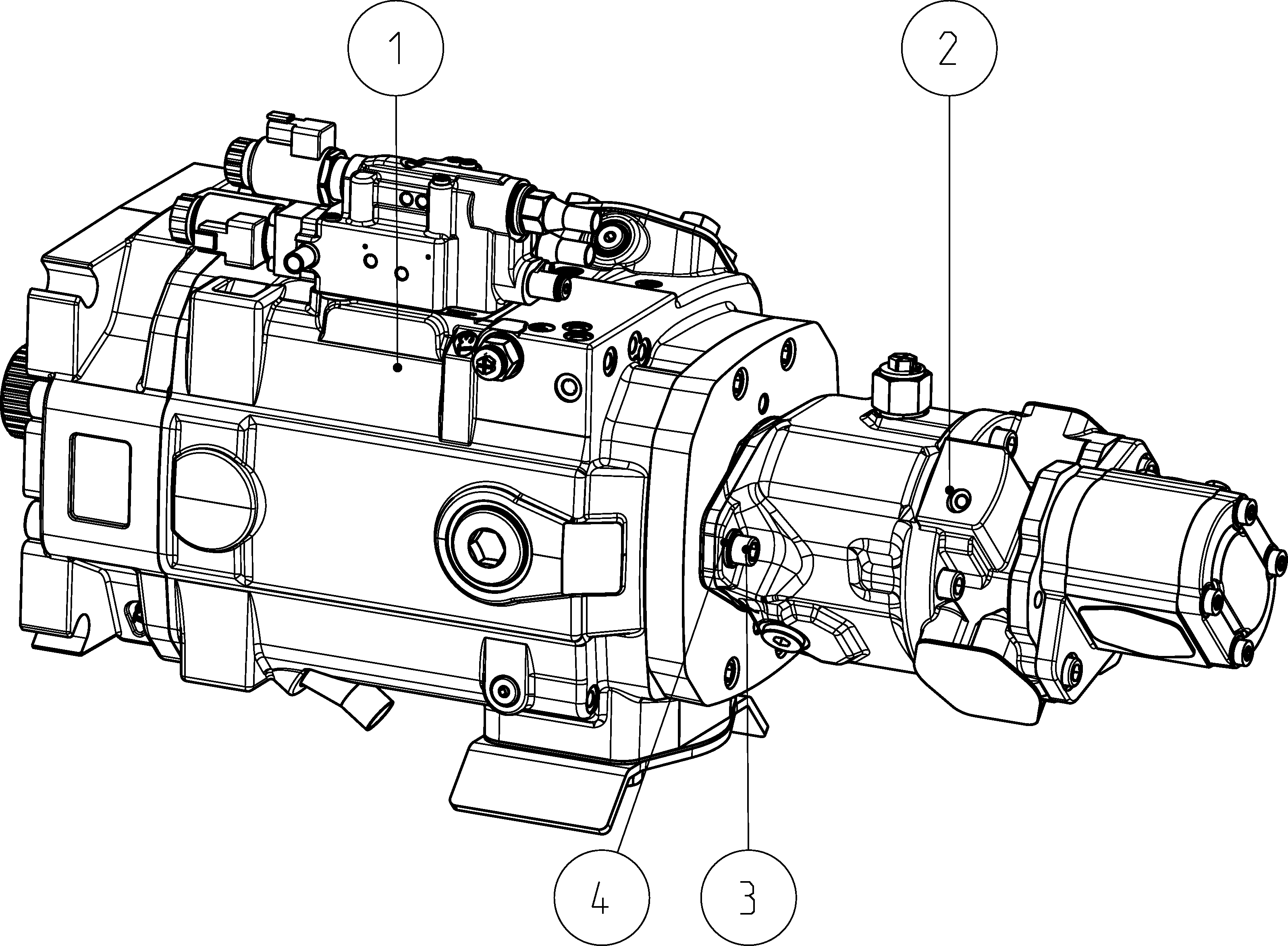

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902553784 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902553565 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650190 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 280 | 280 |
