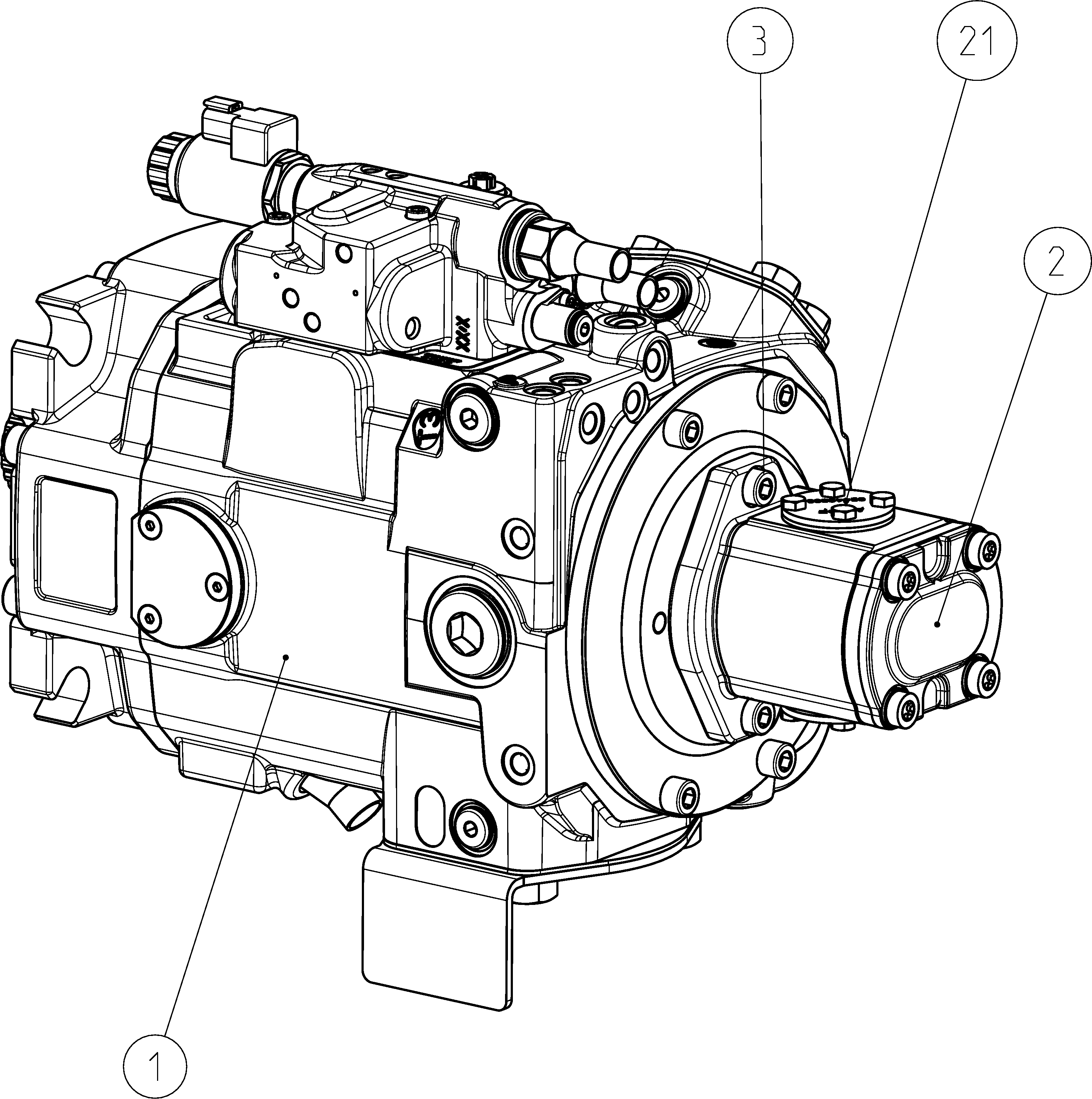

Unit · AXIAL-PISTON PUMP
LA11VO145L4S0APK/40ML+AZPF-11-019LR902545914
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO145L4S0APK/40ML+AZPF-11-019L, material number R902545914. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902545914
- Type code
- LA11VO145L4S0APK/40ML+AZPF-11-019L
- Group
- A11VO 145
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902545187 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 145 | 145 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
