Unit · AXIAL-PISTON PUMP
P AA4VSG 125 HD1 /30R-PSD60KB80NR902546216
Axial piston pump Bosch Rexroth series A4VSG, type code PAA4VSG125HD1/30R-PSD60KB80N, material number R902546216. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: in accordance with ISO 3019-1 SAE 4-hole (D). Working port: SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread (60). Through drives: 160, 4-hole 1 1/4 in 14T 12/24DP (KB8). Valves: without valve block (0). Filtration: without filter (N).
- Number
- R902546216
- Type code
- P AA4VSG 125 HD1 /30R-PSD60KB80N
- Group
- A4VSG 125
- Edition
- 06/2020

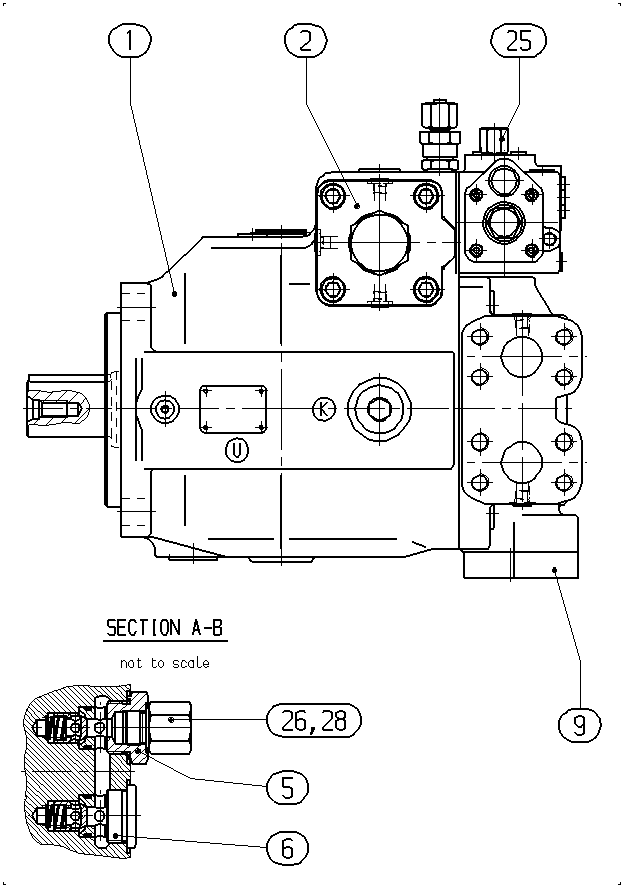

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902546237 | BASE UNIT Assembly parts list →L | 1 | ||
| R902404648 | CONTROL Assembly parts list →L | 1 | ||
| R910929328 | VALVE MOUNTING KIT | 1 | ||
| R910929298 | VALVE MOUNTING KIT | 1 | ||
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910984004 | ADAPTER Assembly parts list →L | 2 | ||
| R910111201 | O-RING | 1 | ||
| R910712477 | ADAPTER | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 2 | |
| 62 | R902603192 | SEAL SCREW | 1 | |
| 64 | R902603190 | SEAL SCREW | 1 | |
| 71 | R902430610 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R910723126 | PLUG | 1 | |
| 82 | R902602014 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | In accordance with ISO 3019-1 SAE 4-hole | D |
| Working port | SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread | 60 |
| Through drives | 160, 4-hole 1 1/4 in 14T 12/24DP | KB8 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
