Unit · BASE UNIT
GAA4VSG125M/30R-PSD60KB8R902546237
Base unit Bosch Rexroth series A4VSG, type code GAA4VSG125M/30R-PSD60KB8, material number R902546237. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: in accordance with ISO 3019-1 SAE 4-hole (D). Working port: SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread (60). Through drives: 160, 4-hole 1 1/4 in 14T 12/24DP (KB8).
- Number
- R902546237
- Type code
- GAA4VSG125M/30R-PSD60KB8
- Group
- A4VSG 125
- Edition
- 06/2020

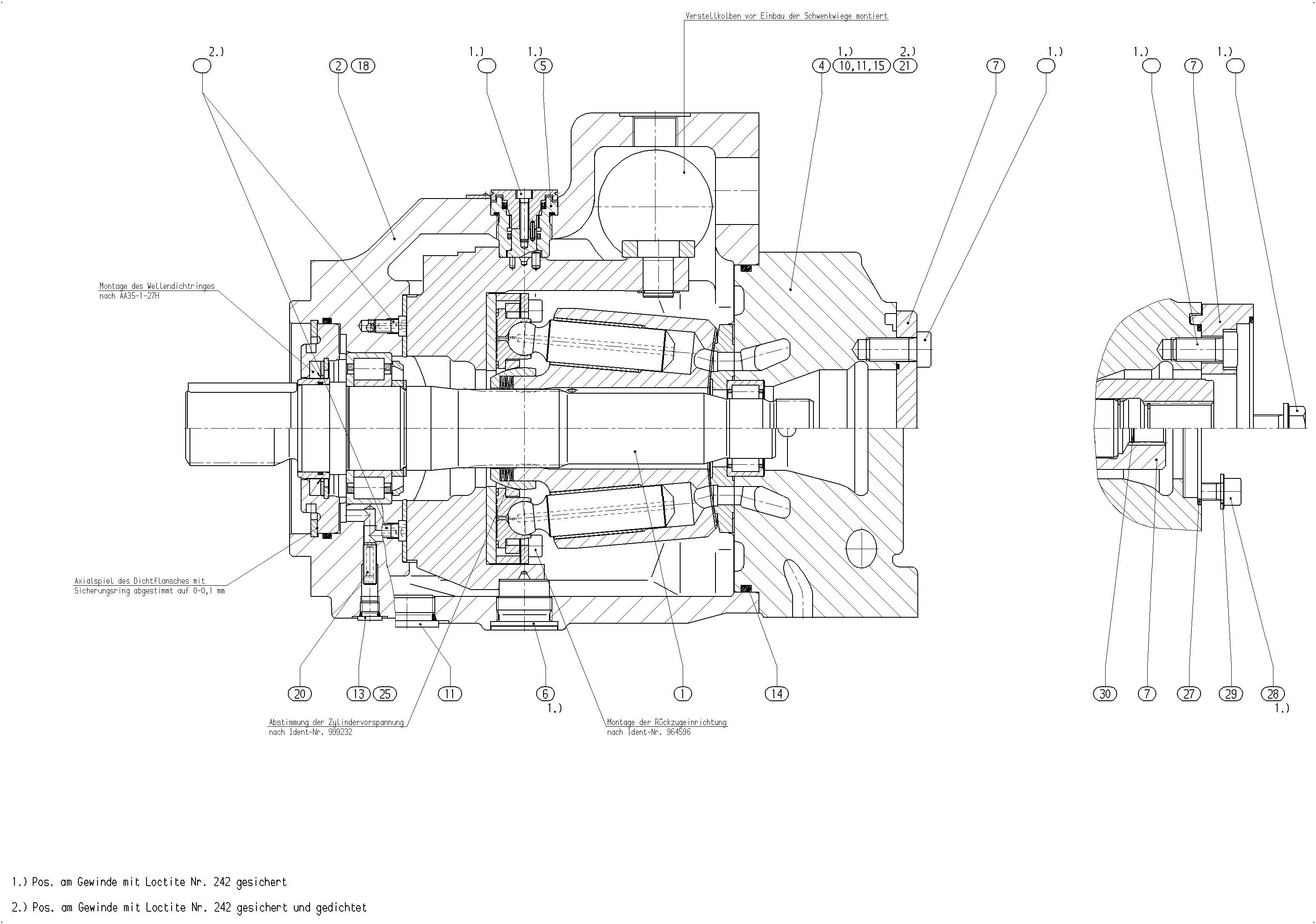

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902404987 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910996492 | PUMP HOUSING | 1 | ||
| R902404045 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910993575 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R902546238 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153378 | SCREW PLUGD | 3 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R910783854 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | In accordance with ISO 3019-1 SAE 4-hole | D |
| Working port | SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread | 60 |
| Through drives | 160, 4-hole 1 1/4 in 14T 12/24DP | KB8 |
