Unit · BASE UNIT
G A10VZO 18 OV /10L-VRC12N00R902546712
Base unit Bosch Rexroth series A10FZO, type code GA10VZO18OV/10L-VRC12N00, material number R902546712. Nominal size: NG 18. Axial piston unit: swashplate design, variable (A10V). Application area: variable-speed drives (Z). Operating mode: pump, open circuit (O). Direction of rotation 003: viewed on drive shaft counter-clockwise (L). Sealing material 003: FKM (fluorocarbon rubber) (V). Drive shaft 003: splined shaft ISO 3019-1 similar to shaft "S" however for higher torque (R). Through drive: without through drive (N00).
- Number
- R902546712
- Type code
- G A10VZO 18 OV /10L-VRC12N00
- Group
- A10VZO 18
- Edition
- 06/2020

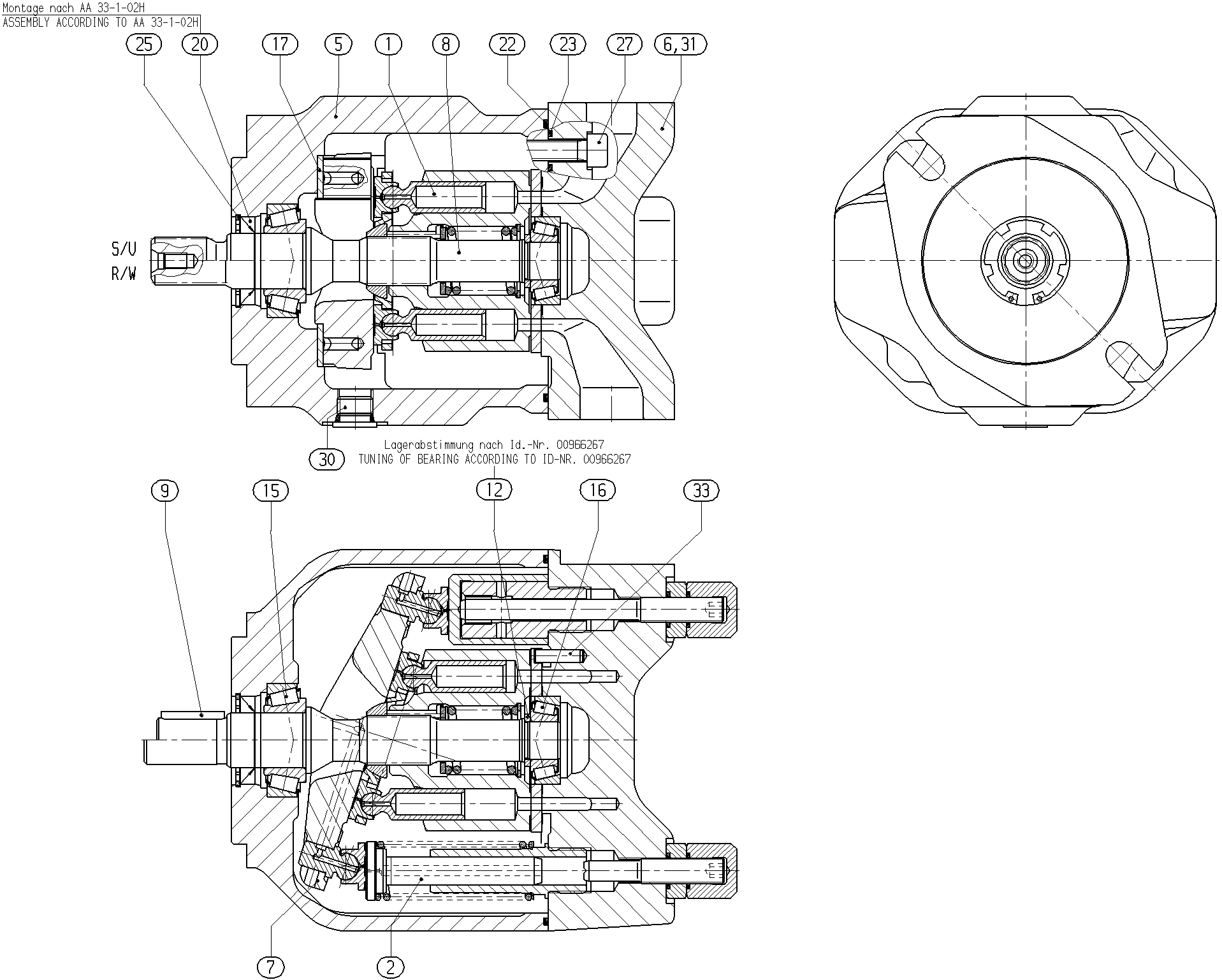

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902546711 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538122 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910925613 | PUMP HOUSING | 1 | ||
| R910947875 | CONNECTION PLATE | 1 | ||
| R910960983 | SWASH PLATE | 1 | ||
| R902413744 | DRIVE SHAFT | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910925266 | BEARING SHELL | 2 | ||
| R910900853 | SHAFT SEALING RINGD | 1 | ||
| R910928325 | O-RINGD | 1 | ||
| R913052100 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910277193 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A10V |
| Application area | Variable-speed drives | Z |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation 003 | Viewed on drive shaft counter-clockwise | L |
| Sealing material 003 | FKM (fluorocarbon rubber) | V |
| Drive shaft 003 | Splined shaft ISO 3019-1 similar to shaft "S" however for higher torque | R |
| Through drive | without through drive | N00 |
