Unit · AXIAL-PISTON MOTOR
A6VM280HZ5000001G/71MWK0S4A49WH-SR902547367
Axial piston motor Bosch Rexroth series A6VM, type code A6VM280HZ5000001G/71MWK0S4A49WH-S, material number R902547367. Nominal size: NG 280. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: two-point control, hydraulic negative control (HZ5). Pressure control/override: without pressure control/override (00). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: short long (G). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-4 (S4). Drive shaft: splined shaft DIN 5480 W60×2×28×9g (A4).
- Number
- R902547367
- Type code
- A6VM280HZ5000001G/71MWK0S4A49WH-S
- Group
- A6VM 280
- Edition
- 06/2020

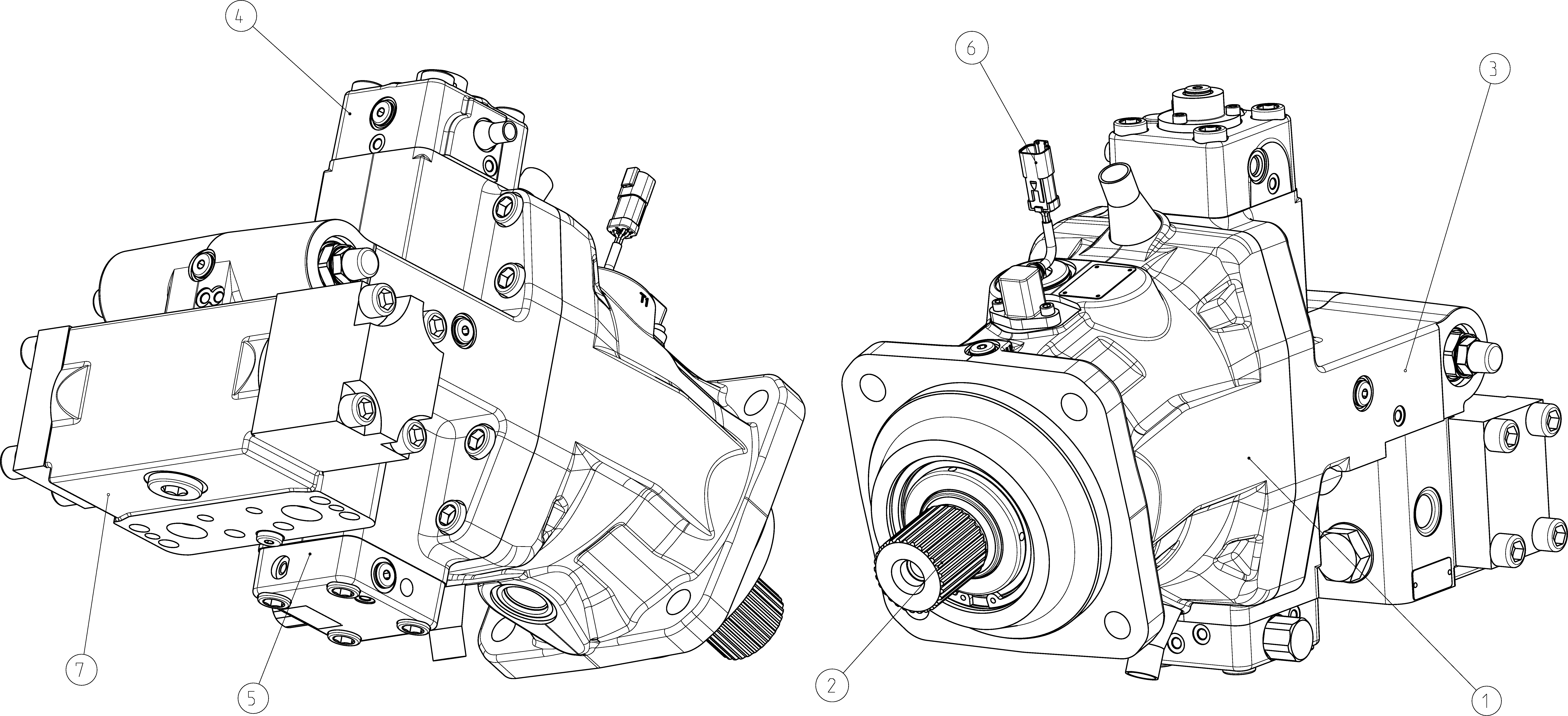

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902547369 | HOUSING Assembly parts list →L | 1 | ||
| R902552073 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902514369 | COVER PLATE Assembly parts list →L | 1 | ||
| R902544980 | CONTROL PART Assembly parts list →L | 1 | ||
| R902550910 | COVER Assembly parts list →L | 1 | ||
| R902085682 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 | ||
| R902477058 | BRAKE VALVE Assembly parts list →L | 1 | ||
| 98 | R902471992 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 280 | 280 |
| Control device | Two-point control, hydraulic negative control | HZ5 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Short long | G |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W60×2×28×9g | A4 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (direct operated) BVD/BVE32 | 9 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Standard/special version | Special version | S |
