Unit · AXIAL-PISTON PUMP
A11VO110+A1VO-M270+AZPF-M90R902547420
Axial piston pump Bosch Rexroth series A11VO, type code A11VO110+A1VO-M270+AZPF-M90, material number R902547420. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O).
- Number
- R902547420
- Type code
- A11VO110+A1VO-M270+AZPF-M90
- Group
- A11VO 110
- Edition
- 06/2020

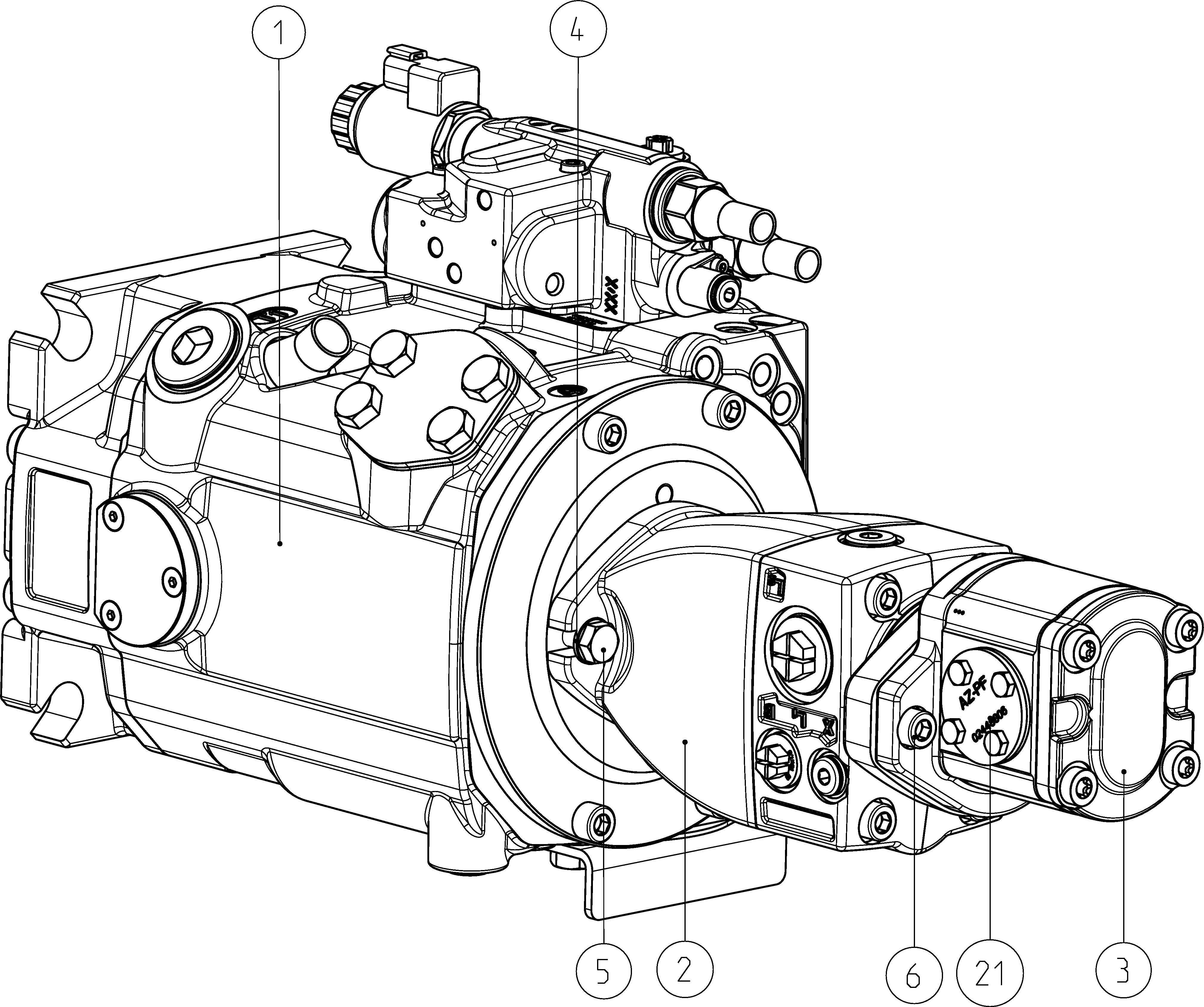

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902547077 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902548535 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510525072 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910186724 | WASHER | 2 | ||
| R910104736 | HEXAGON SCREW | 2 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R902448945 | FLANGE COVER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 110 | 110 |
