Unit · BASE UNIT
G A10VWO 45 OV /52W-VUC64N00R902550709
Base unit Bosch Rexroth series A10VWO, type code GA10VWO45OV/52W-VUC64N00, material number R902550709. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft according to ISO 3019-1 reduced diameter, permissible input torque (U). Mounting flange: ISO 3019-1 2-hole (C). Working port: threaded ports UN thread (ISO 11926) rear (64).
- Number
- R902550709
- Type code
- G A10VWO 45 OV /52W-VUC64N00
- Group
- A10VWO 45
- Edition
- 06/2020

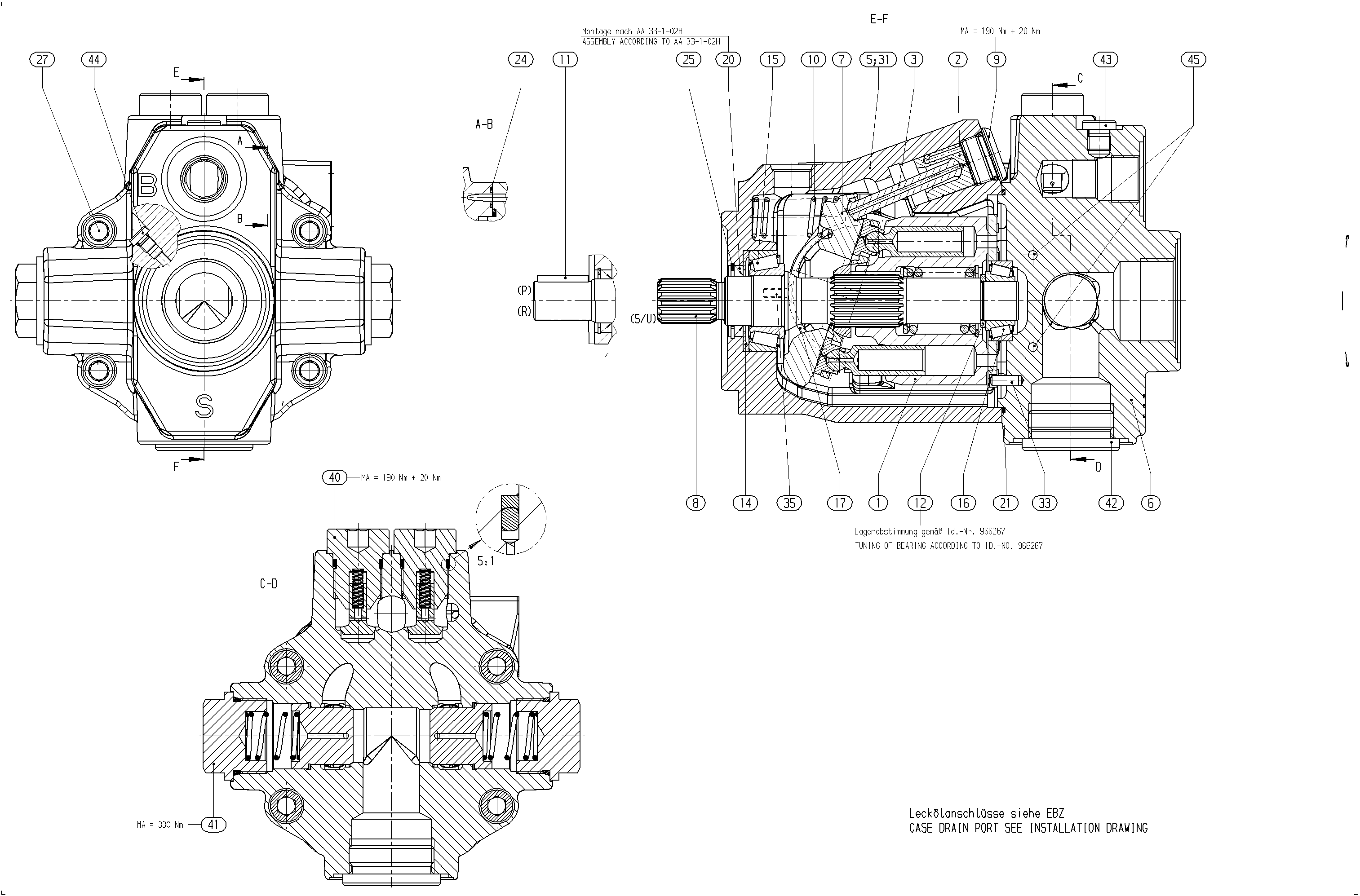

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902480786 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902479603 | PUMP HOUSING | 1 | ||
| R902480677 | CONNECTION PLATE | 1 | ||
| R902443527 | SWASH PLATE | 1 | ||
| R902417387 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RING | 1 | ||
| R913052048 | O-RING | 1 | ||
| R910942133 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910126462 | SOCKET HEAD CAP SCREW | 4 | ||
| 30 | R910967343 | SCREW PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902402125 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R902478789 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R902650452 | SCREW PLUG | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R909156649 | SCREW PLUG | 3 | ||
| R909410142 | THROTTLE PIN | 2 | ||
| 46 | R909400263 | THROTTLE SCREW | 2 | |
| 47 | R909400264 | THROTTLE SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft according to ISO 3019-1 reduced diameter, permissible input torque | U |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | Threaded ports UN thread (ISO 11926) rear | 64 |
