Unit · AXIAL-PISTON PUMP
AH A7V O 250 EP2D /63R-VPB02VR902550993
Axial piston pump Bosch Rexroth series A7VO, type code AHA7VO250EP2D/63R-VPB02V, material number R902550993. Nominal size: NG 250.
- Number
- R902550993
- Type code
- AH A7V O 250 EP2D /63R-VPB02V
- Group
- A7VO 250
- Edition
- 06/2020

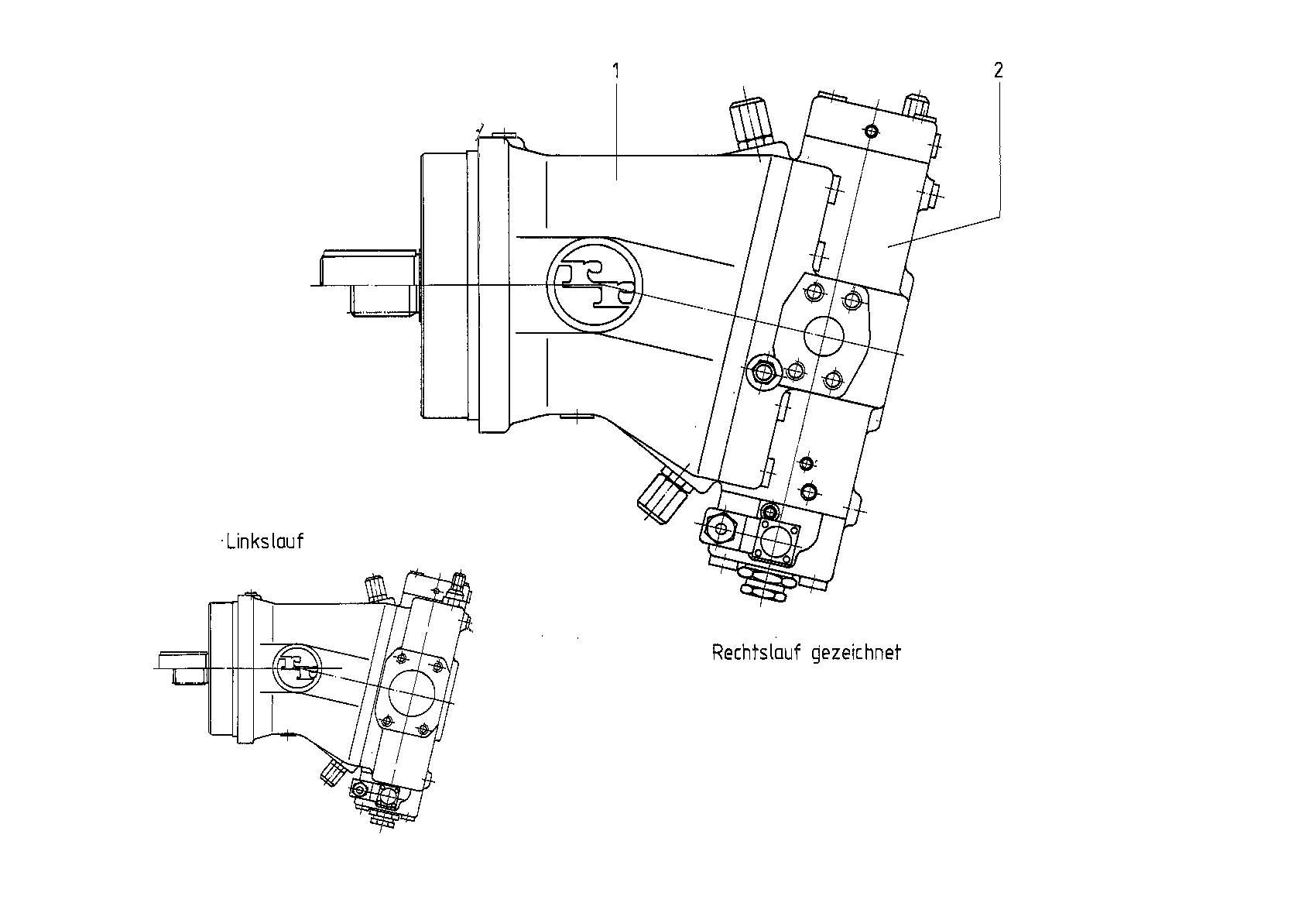

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902421380 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R902550995 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| High-Speed-Version (only mineral oil) | H | |
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| Hydraulic control, with electric proportional valve, with integrated pressure control (fixed setting) Control voltage 24 V | EP2D | |
| Series 6, Index 3 | 63 | |
| FKM (Fluoro-rubber) | V | |
| Keyed parallel shaft to DIN 6885 | P | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With optical swivel angle indicator | V |
