Unit · AXIAL-PISTON PUMP
A11VLO145DRA00/40ML+A11VO40DR/10LNSC12NR902551416
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO145DRA00/40ML+A11VO40DR/10LNSC12N, material number R902551416. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller (DR).
- Number
- R902551416
- Type code
- A11VLO145DRA00/40ML+A11VO40DR/10LNSC12N
- Group
- A11VLO 145
- Edition
- 06/2020

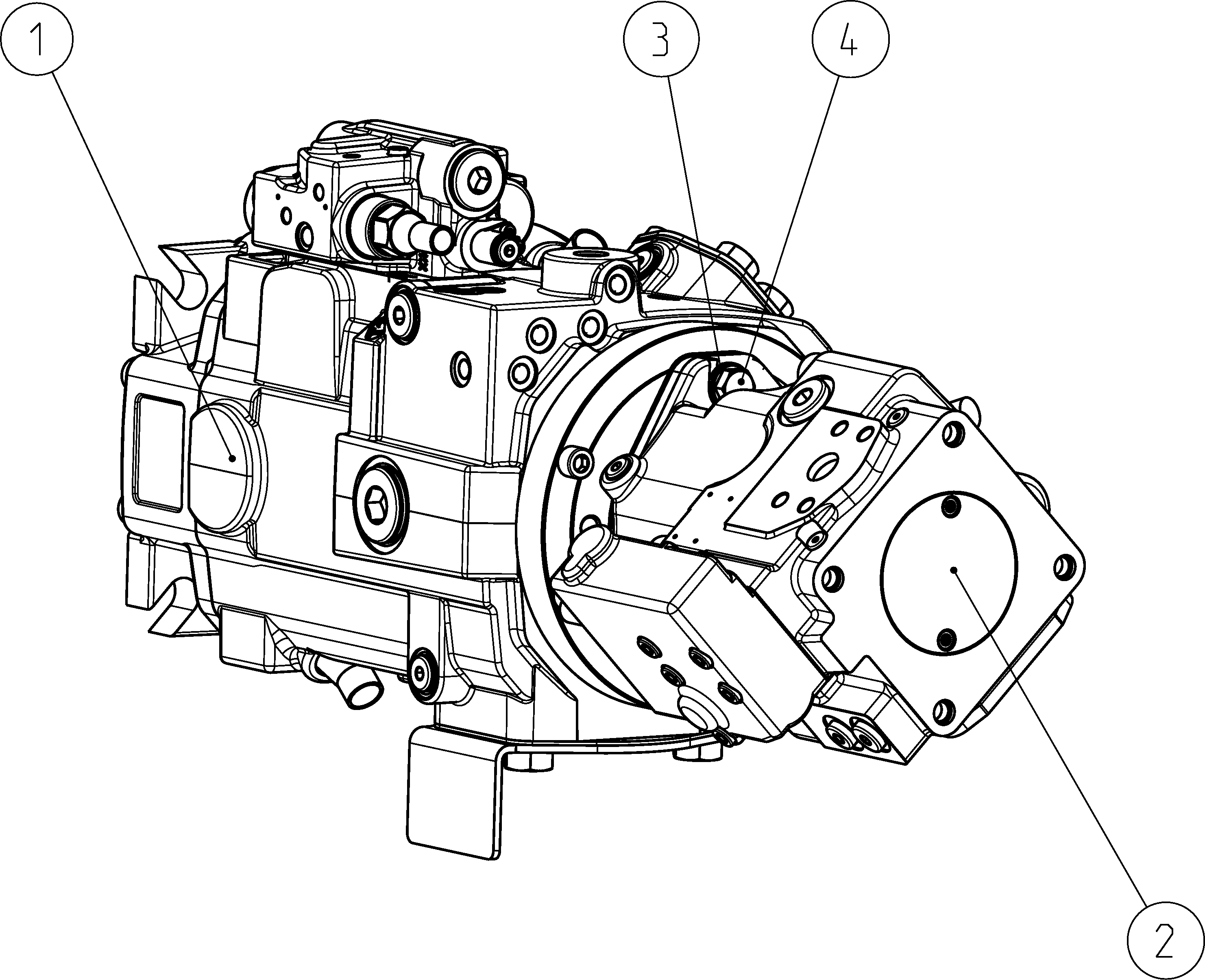

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902551418 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902253647 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650190 | WASHER | 2 | ||
| R910104914 | HEXAGON SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 145 | 145 |
| Control device | Pressure controller | DR |
| Index | Size 40 … 130 | 0 |
