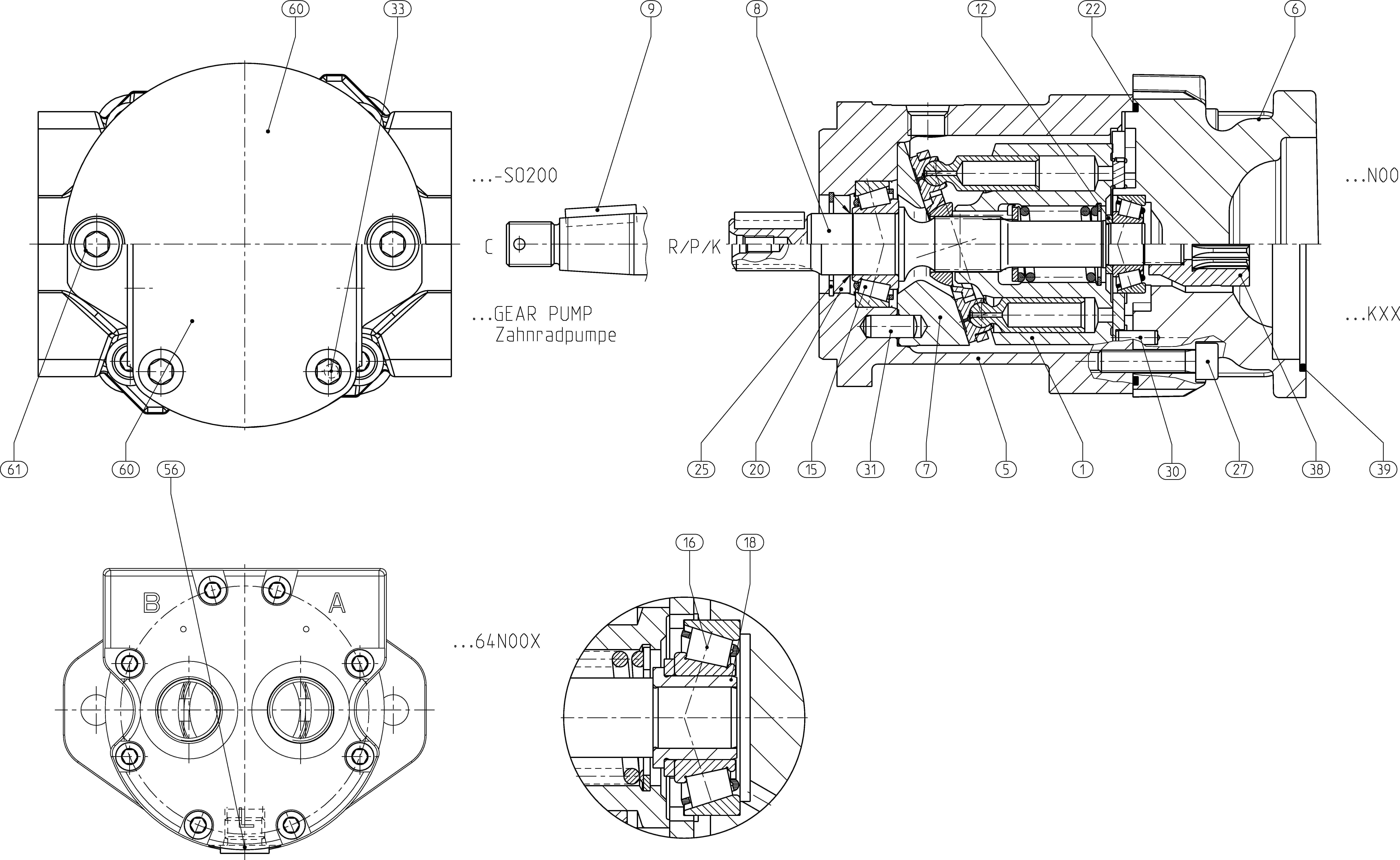

Unit · AXIAL-PISTON PUMP
A A10FZG010/10W-VSC02K52R902551741
Axial piston pump Bosch Rexroth series A10FZO, type code AA10FZG010/10W-VSC02K52, material number R902551741. Nominal size: NG 10. Axial piston unit: swashplate design, fixed, nominal pressure 315 bar, maximum pressure (A10F). Application area: variable-speed drives (Z). Operating mode: pump, open and closed circuit (G). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: based on ISO 3019-1 (SAE) (C). Working port: SAE flange ports ISO 6162 A and B, opposite sides, metric fastening thread (02). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R902551741
- Type code
- A A10FZG010/10W-VSC02K52
- Group
- A10FZG 10
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902543710 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902491360 | MOTOR HOUSING | 1 | ||
| R902562411 | CONNECTION PLATE | 1 | ||
| R902409356 | CAM PLATE | 1 | ||
| R902544649 | DRIVE SHAFT | 1 | ||
| R902409778 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R902514741 | BUSHING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R909157977 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R909083047 | SOCKET HEAD CAP SCREW | 4 | ||
| R910757519 | STRAIGHT PIN | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909152074 | SLOTTED SPRING PIN | 1 | ||
| R902463180 | SPLINED COUPLING | 1 | ||
| R913034535 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed, nominal pressure 315 bar, maximum pressure | A10F |
| Application area | Variable-speed drives | Z |
| Operating mode | Pump, open and closed circuit | G |
| Size (NG) Geometric displacement | 10 | 010 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | Based on ISO 3019-1 (SAE) | C |
| Working port | SAE flange ports ISO 6162 A and B, opposite sides, metric fastening thread | 02 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
