Unit · PUMP COMBINATION
LA10VO63EP2D/53L+LA10VO63EP2D/53LR902551851
Pump combination Bosch Rexroth series A10VO, type code LA10VO63EP2D/53L+LA10VO63EP2D/53L, material number R902551851. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure control U = 24 V (EP2D). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902551851
- Type code
- LA10VO63EP2D/53L+LA10VO63EP2D/53L
- Group
- A10VO 63
- Edition
- 06/2020

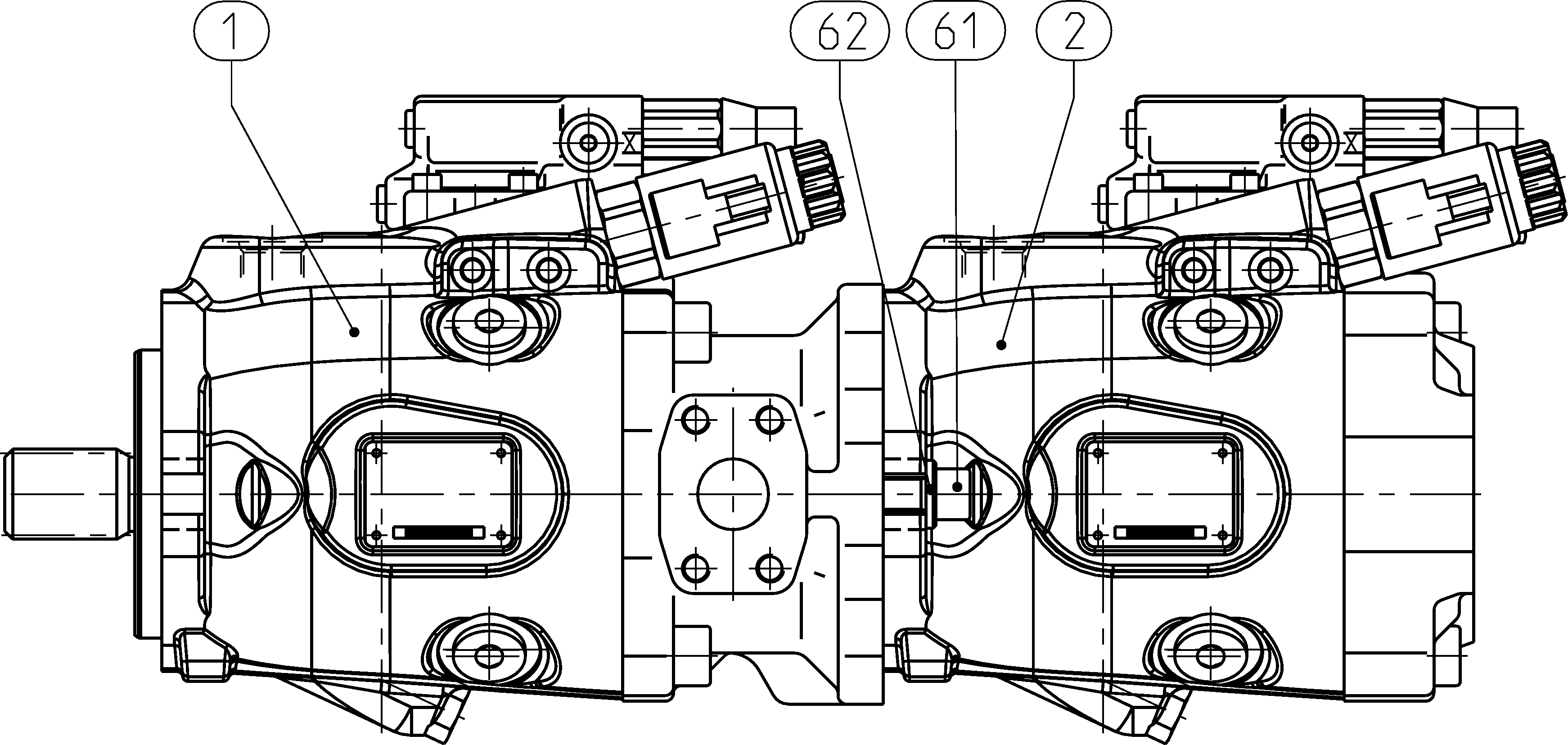

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902551849 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902551850 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650190 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | with pressure control U = 24 V | EP2D |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
