Unit · AXIAL-PISTON PUMP
LA11VLO210DGT8AP0/40MRVE4T21SB3S40-SR902552378
Axial piston pump Bosch Rexroth series A11VO, type code LA11VLO210DGT8AP0/40MRVE4T21SB3S40-S, material number R902552378. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Drive shaft: splined shaft ANSI B92.1a‒1976 for combination pump (T). Standard/special version: special version (S).
- Number
- R902552378
- Type code
- LA11VLO210DGT8AP0/40MRVE4T21SB3S40-S
- Group
- A11VLO 210
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

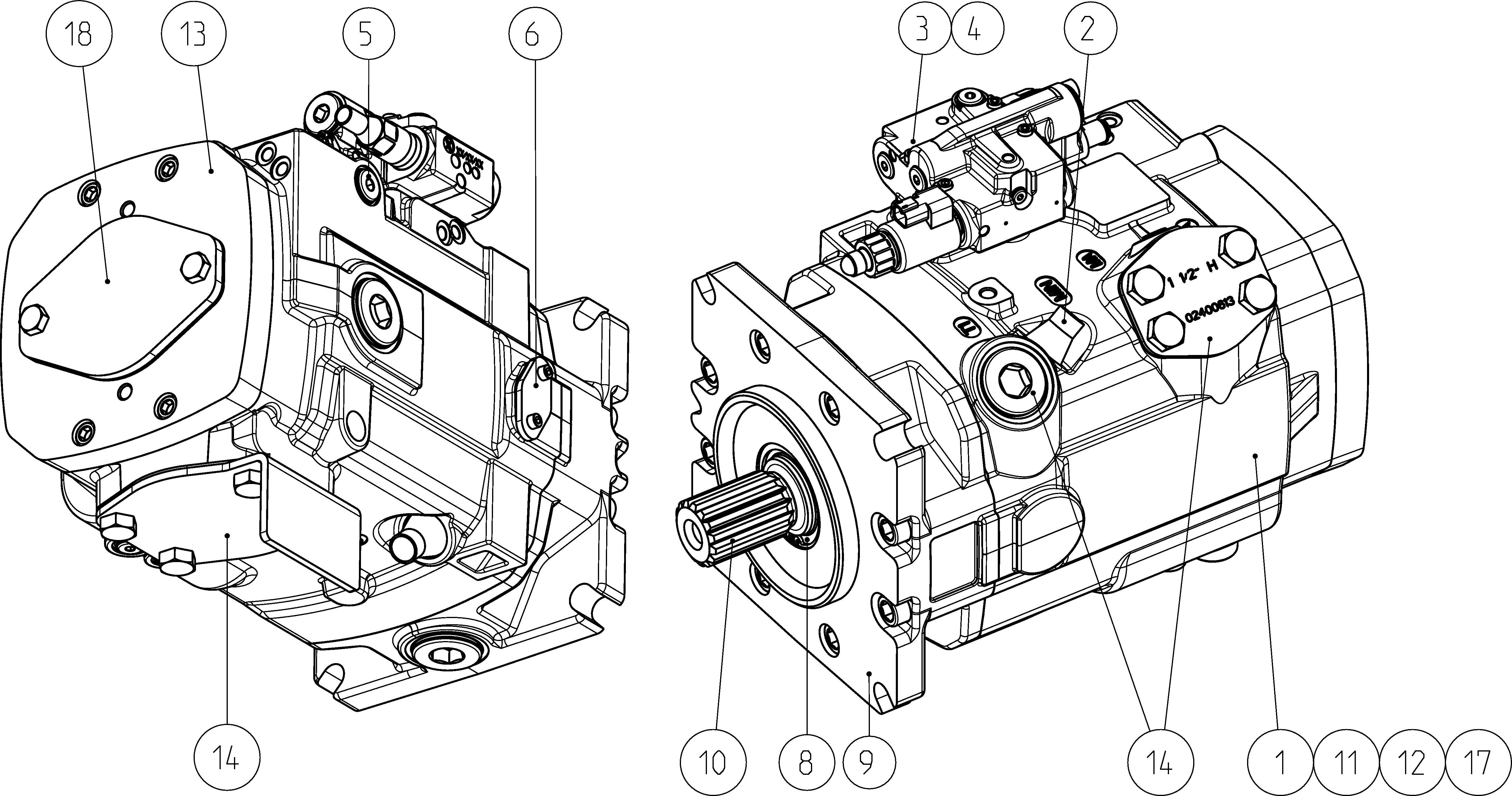

| R902552379 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 210 | 210 |
| Index | Size 40 … 130 | 0 |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for combination pump | T |
| Standard/special version | Special version | S |
