Unit · BASE UNIT
GAA4VSG180M/30R-PSD60K07R902553848
Base unit Bosch Rexroth series A4VSG, type code GAA4VSG180M/30R-PSD60K07, material number R902553848. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: in accordance with ISO 3019-1 SAE 4-hole (D). Working port: SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread (60). Through drives: 127-2 (C) 1 1/4 in 14T 12/24DP (K07).
- Number
- R902553848
- Type code
- GAA4VSG180M/30R-PSD60K07
- Group
- A4VSG 180
- Edition
- 06/2020

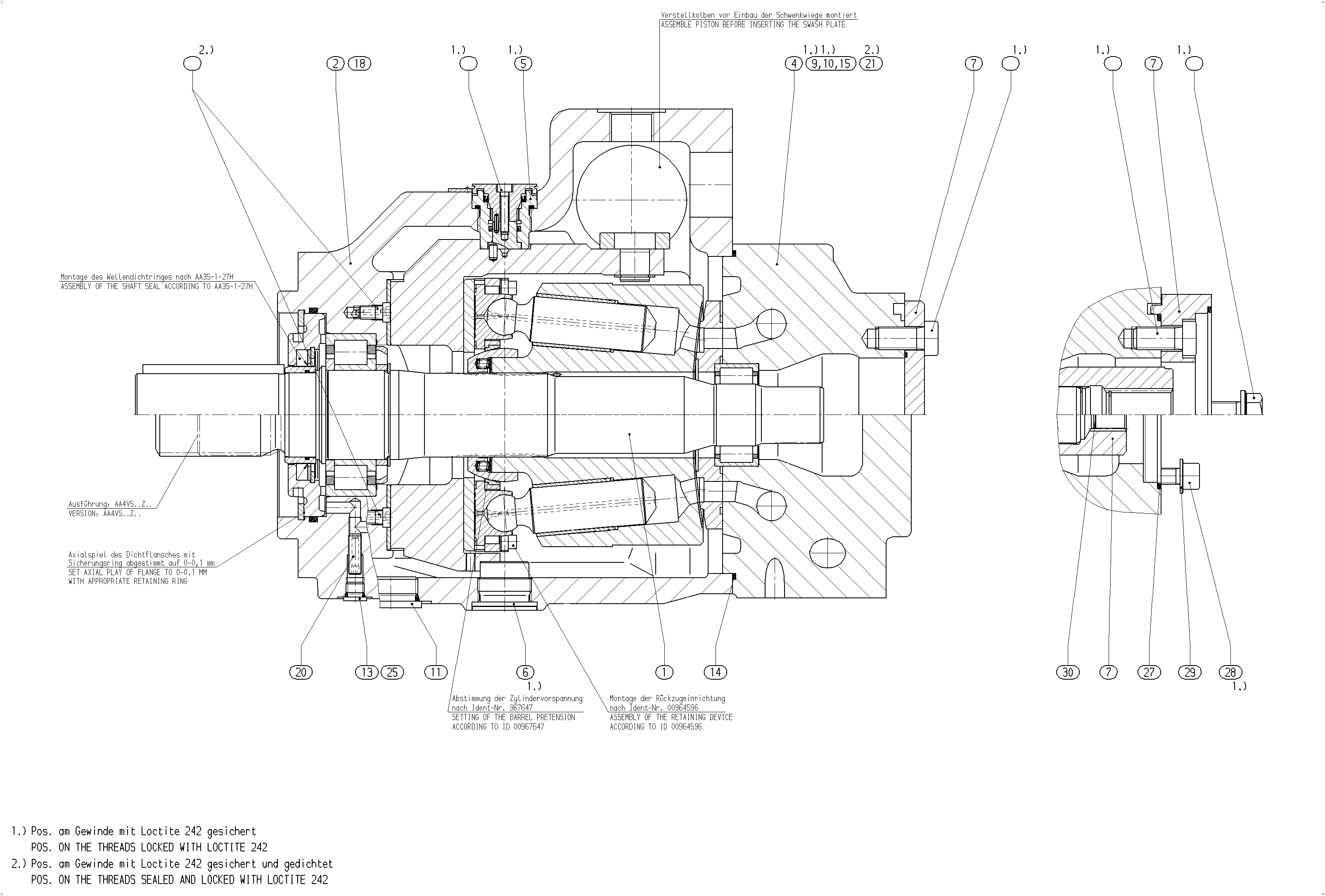

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902412630 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910998681 | PUMP HOUSING | 1 | ||
| R902412646 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910993575 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910798355 | STUD BOLT Assembly parts list →L | 1 | ||
| R910984099 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 4 | ||
| R910209228 | SOCKET HEAD CAP SCREW | 4 | ||
| R910932817 | SCREW PLUGD | 3 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R910928484 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910995345 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi SAE (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | In accordance with ISO 3019-1 SAE 4-hole | D |
| Working port | SAE flange ports A and B, UNC fastening thread located on same side, metric fastening thread | 60 |
| Through drives | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
