Unit · AXIAL-PISTON PUMP

P A4VSG 40 HD3A /11R-VPB10K040NR902554301

Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG40HD3A/11R-VPB10K040N, material number R902554301. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 101-2 (B) 1 in 15T 16/32DP (K04). Valves: without valve block (0). Filtration: without filter (N).

Number: R902554301
Type code: P A4VSG 40 HD3A /11R-VPB10K040N
Group: A4VSG 40
Edition: 06/2020

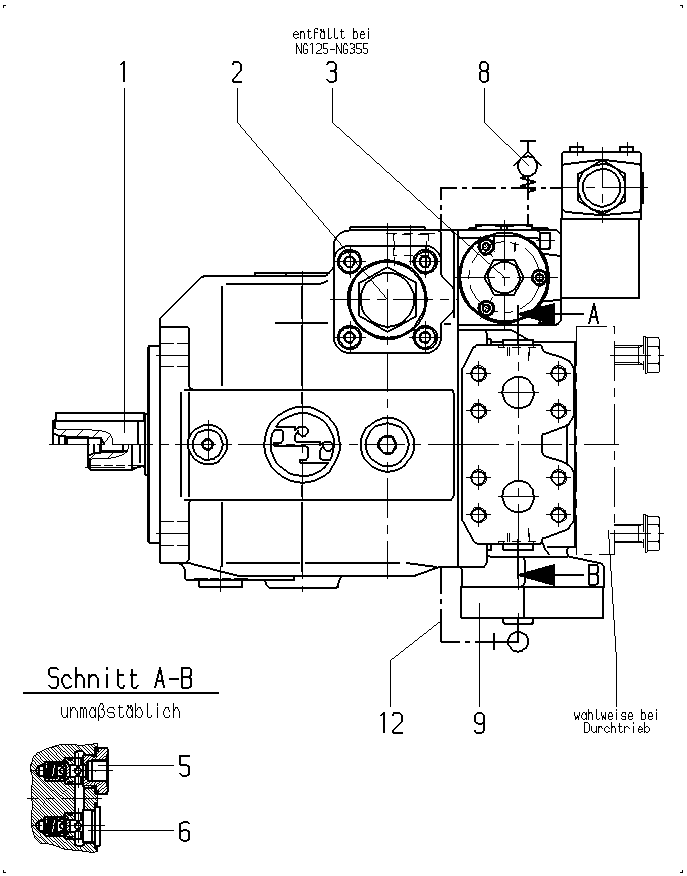

P A4VSG 40 HD3A /11R-VPB10K040N — Drawing

Pos.	Number	Name	Qty
	R902554300	BASE UNIT Assembly parts list →L	1
	R902554299	CONTROL Assembly parts list →L	1
	R910933289	SPRING PACK Assembly parts list →L	1
	R910918760	VALVE MOUNTING KIT	1
	R910918761	VALVE MOUNTING KIT	1
	R910920008	CHECK VALVE	1
	R902413156	CONNECTION PLATE Assembly parts list →L	1
	R910925317	PIPING PLAN Assembly parts list →L	1
61	R902805707	SHIPPING PROTECTION	2
62	R902602011	SEAL SCREW	1
64	R902602010	SEAL SCREW	1
71	R902418324	FLANGE COVER Assembly parts list →L	1
81	R902602008	SEAL SCREW	2
82	R910723126	PLUG	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 350 bar, maximum pressure	A4VS
Operating mode	Pump, closed circuit	G
Size (NG)	40	40
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Parallel keyed shaft DIN 6885	P
Mounting flange	Based on ISO 3019-2 metric 4-hole	B
Working port	SAE flange ports A and B, located on same side, metric fastening thread	10
Through-drive	101-2 (B) 1 in 15T 16/32DP	K04
Valves	Without valve block	0
Filtration	Without filter	N
