Unit · BASE UNIT
GA10VM85DG/52W2-VWC10N000R902554651
Base unit Bosch Rexroth series A10VM, type code GA10VM85DG/52W2-VWC10N000, material number R902554651. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control direct operated, external control pressure supply without on/off valve (DG). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (2). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for reduced torque (W). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side (10N00). Valves: without valve (0).
- Number
- R902554651
- Type code
- GA10VM85DG/52W2-VWC10N000
- Group
- A10VM 85
- Edition
- 06/2020

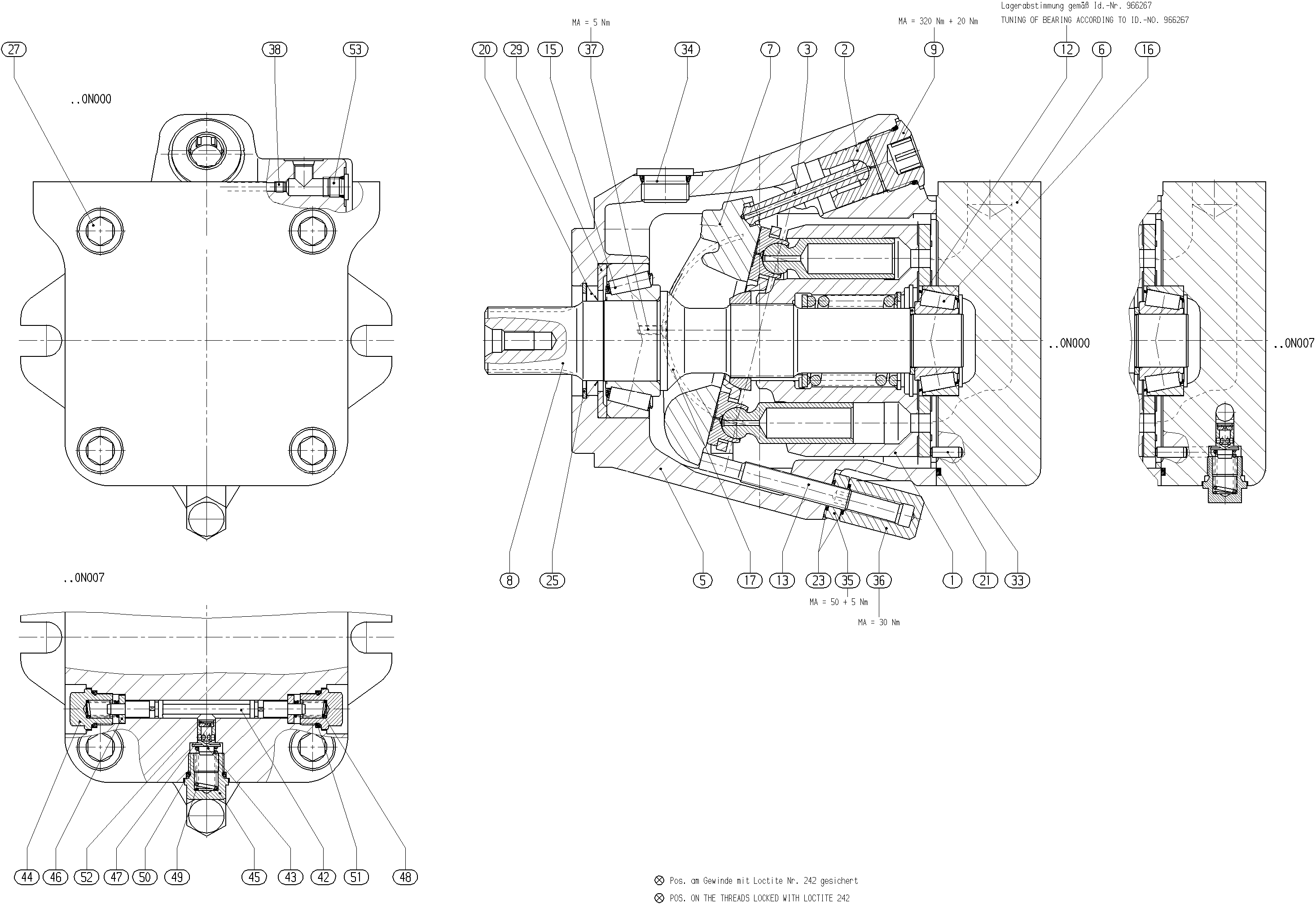

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998961 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R902432858 | MOTOR HOUSING | 1 | ||
| R902432851 | CONNECTION PLATE | 1 | ||
| R902443497 | SWASH PLATE | 1 | ||
| R902414392 | DRIVE SHAFT | 1 | ||
| R902447584 | SCREW PLUG | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902433454 | STOP SCREW | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910990277 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R913052062 | O-RINGD | 1 | ||
| R910919314 | O-RING | 2 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R902402391 | STOP RING | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910989878 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 85 | 85 |
| Control devices | Two-point control direct operated, external control pressure supply without on/off valve | DG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 2 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for reduced torque | W |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side | 10N00 |
| Valves | Without valve | 0 |
