Unit · AXIAL-PISTON PUMP
LA11VO280LRDRS0A00/40MRVE4A41EE4A40-0R902555149
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO280LRDRS0A00/40MRVE4A41EE4A40-0, material number R902555149. Nominal size: NG 280. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off (LRD). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S).
- Number
- R902555149
- Type code
- LA11VO280LRDRS0A00/40MRVE4A41EE4A40-0
- Group
- A11VO 280
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

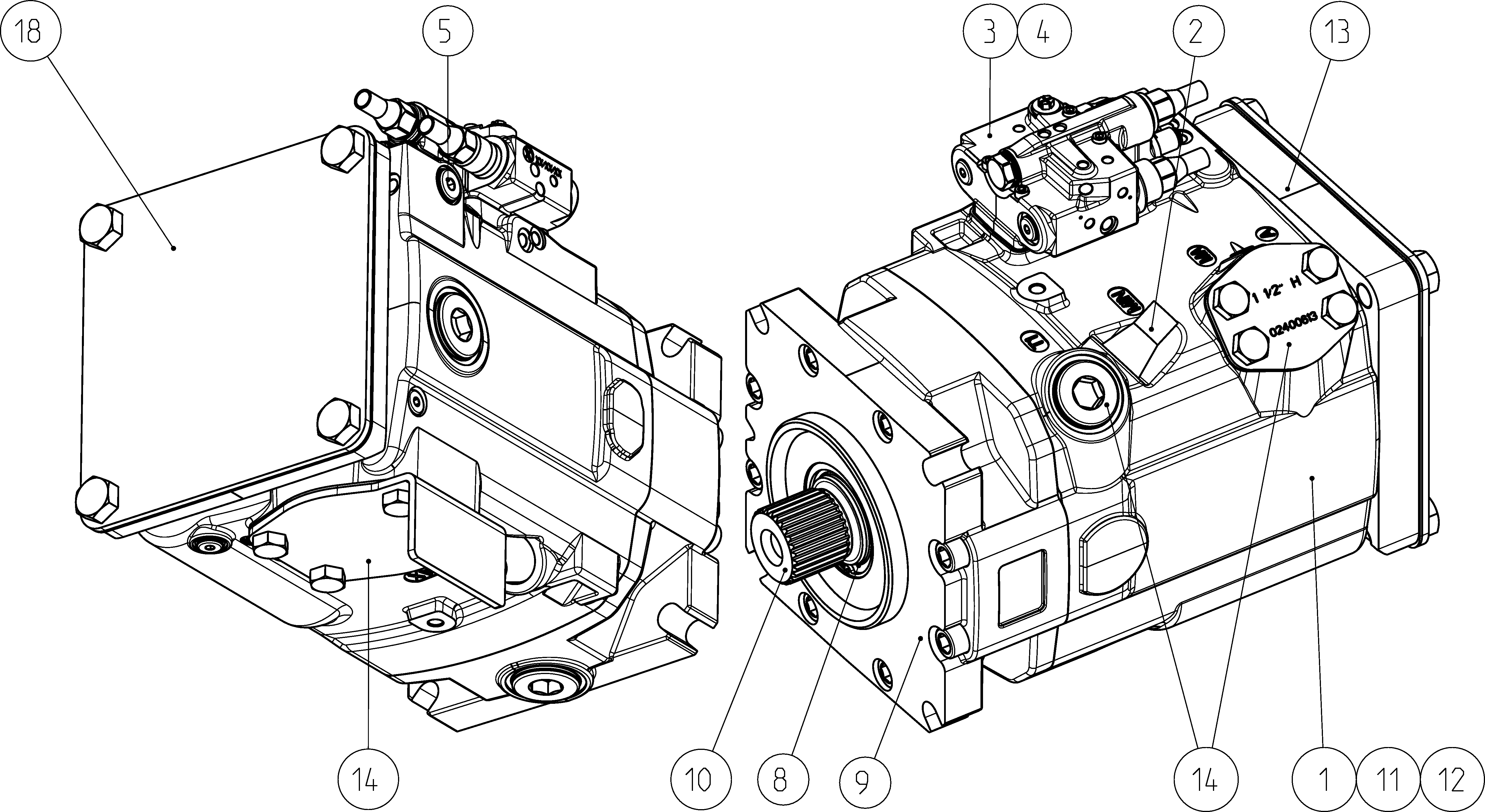

| R902555150 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 280 | 280 |
| Control device | Power controller fixed setting, with pressure cut-off | LRD |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
