Unit · AXIAL-PISTON MOTOR
A6VE280HZX000001H/71CWV0Z4T2900-SR902555915
Axial piston motor Bosch Rexroth series A6VE, type code A6VE280HZX000001H/71CWV0Z4T2900-S, material number R902555915. Nominal size: NG 280. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve (1). Setting range for displacement: short extra long (H). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 260-4 (Z4). Working port: port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (direct operated) BVD32, BVE32 (9). Valve: without valve (0). Speed sensor: without speed sensor (0).
- Number
- R902555915
- Type code
- A6VE280HZX000001H/71CWV0Z4T2900-S
- Group
- A6VE 280
- Edition
- 06/2020

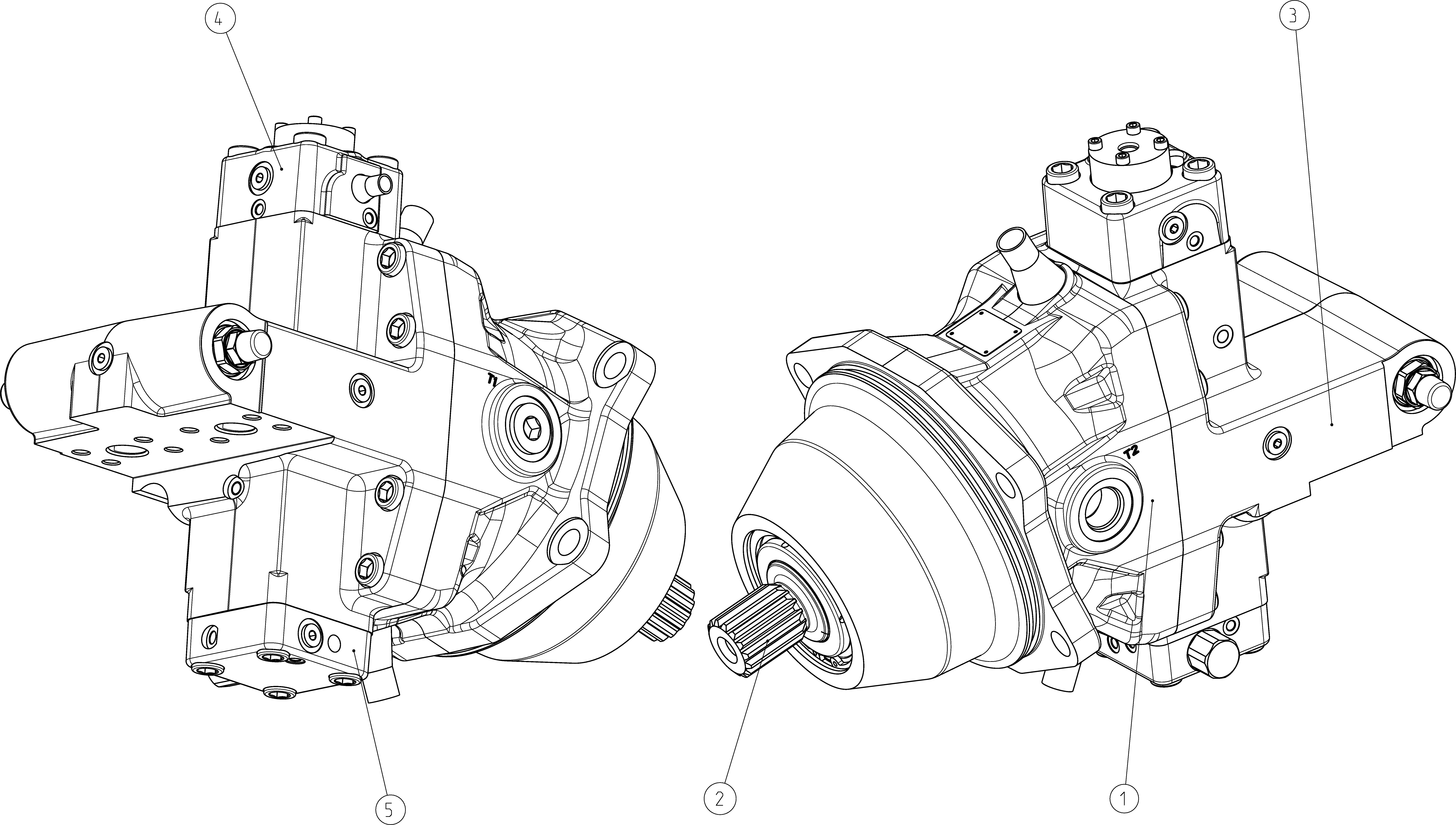

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902548782 | HOUSING Assembly parts list →L | 1 | ||
| R902535808 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902555917 | COVER PLATE Assembly parts list →L | 1 | ||
| R902549161 | CONTROL PART Assembly parts list →L | 1 | ||
| R902519868 | COVER Assembly parts list →L | 1 | ||
| 98 | R902471992 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 280 | 280 |
| Pressure control/override | Without pressure control/override | 00 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve | 1 |
| Setting range for displacement | short extra long | H |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 260-4 | Z4 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (direct operated) BVD32, BVE32 | 9 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
