Unit · PUMP COMBINATION
A15VSO210LRDRE2+A15VSO210LRDRE2+A10VSR902555965
Pump combination Bosch Rexroth series A15VSO, type code A15VSO210LRDRE2+A15VSO210LRDRE2+A10VS, material number R902555965. Nominal size: NG 210. Axial piston unit: variable swashplate design, nominal pressure 5100 psi (350 bar), maximum pressure 6100 psi (420 bar) (A15V). Operating mode: pump, Without charge pump open circuit (SO).
- Number
- R902555965
- Type code
- A15VSO210LRDRE2+A15VSO210LRDRE2+A10VS
- Group
- A15VSO 210
- Edition
- 07/2020

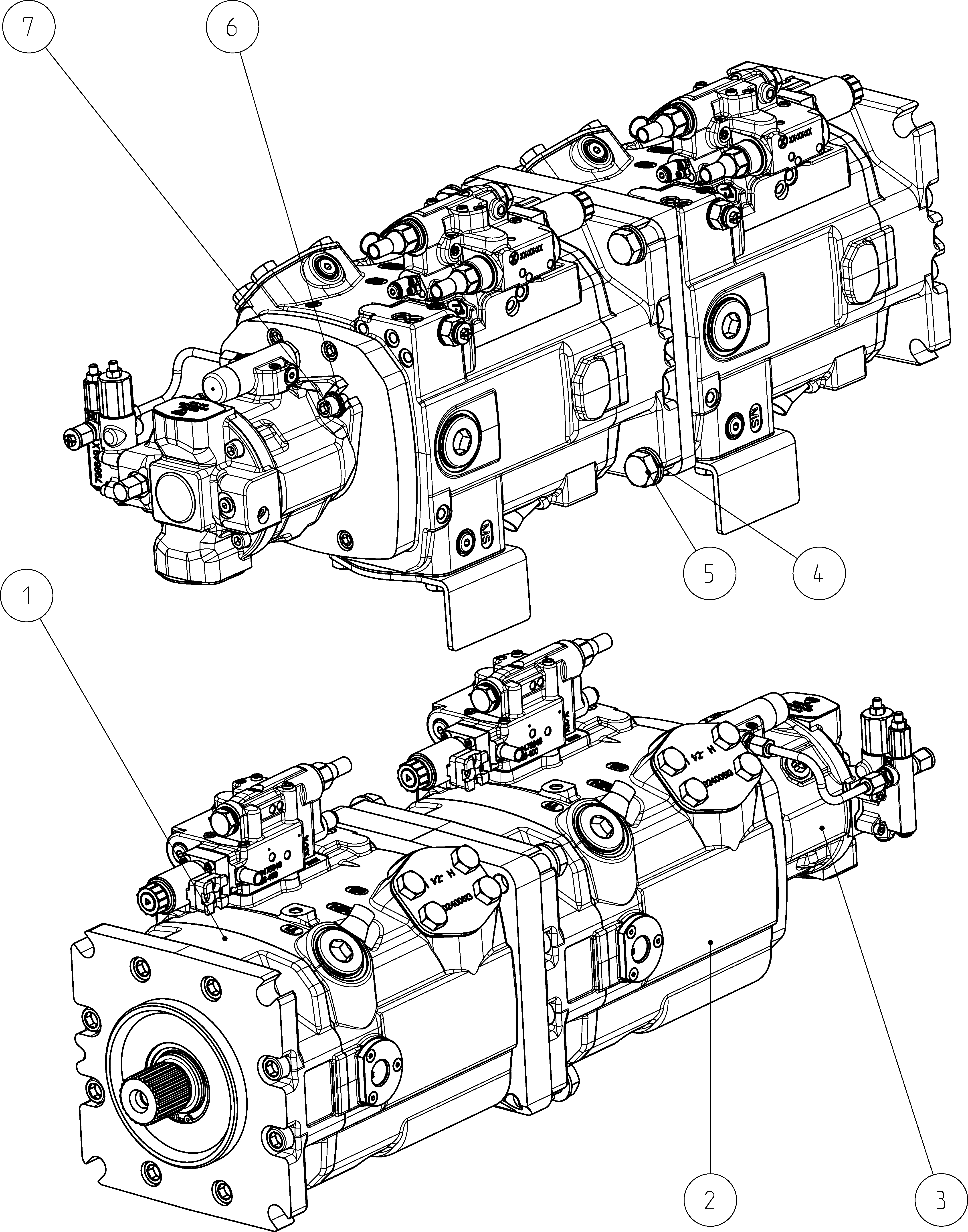

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902547329 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902555967 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902556135 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650194 | WASHER | 4 | ||
| R909084826 | HEXAGON SCREW | 4 | ||
| R902650190 | WASHER | 2 | ||
| R910109754 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable swashplate design, nominal pressure 5100 psi (350 bar), maximum pressure 6100 psi (420 bar) | A15V |
| Operating mode | Pump, Without charge pump open circuit | SO |
| Size (NG) | 210 | 210 |
