Unit · PUMP COMBINATION
A15VSO280DRDGA0V/11MR+A15VSO280DRDGA0R902556334
Pump combination Bosch Rexroth series A15VSO, type code A15VSO280DRDGA0V/11MR+A15VSO280DRDGA0, material number R902556334. Nominal size: NG 280. Axial piston unit: variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar (A15V). Operating mode: pump, Without charge pump open circuit (SO). Depressurized basic position and external control pressure supply: basic position maximum swivel angle (Vg max), without external control pressure supply (standard for power and pressure controllers) (A). Connector for solenoids: without connector (without solenoid, only for hydraulic control) (0). Swivel angle sensor: optical swivel angle indicator (only for A15VSO) (V). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN (M). Direction of rotation: viewed on drive shaft Clockwise (R).
- Number
- R902556334
- Type code
- A15VSO280DRDGA0V/11MR+A15VSO280DRDGA0
- Group
- A15VSO 280
- Edition
- 06/2020

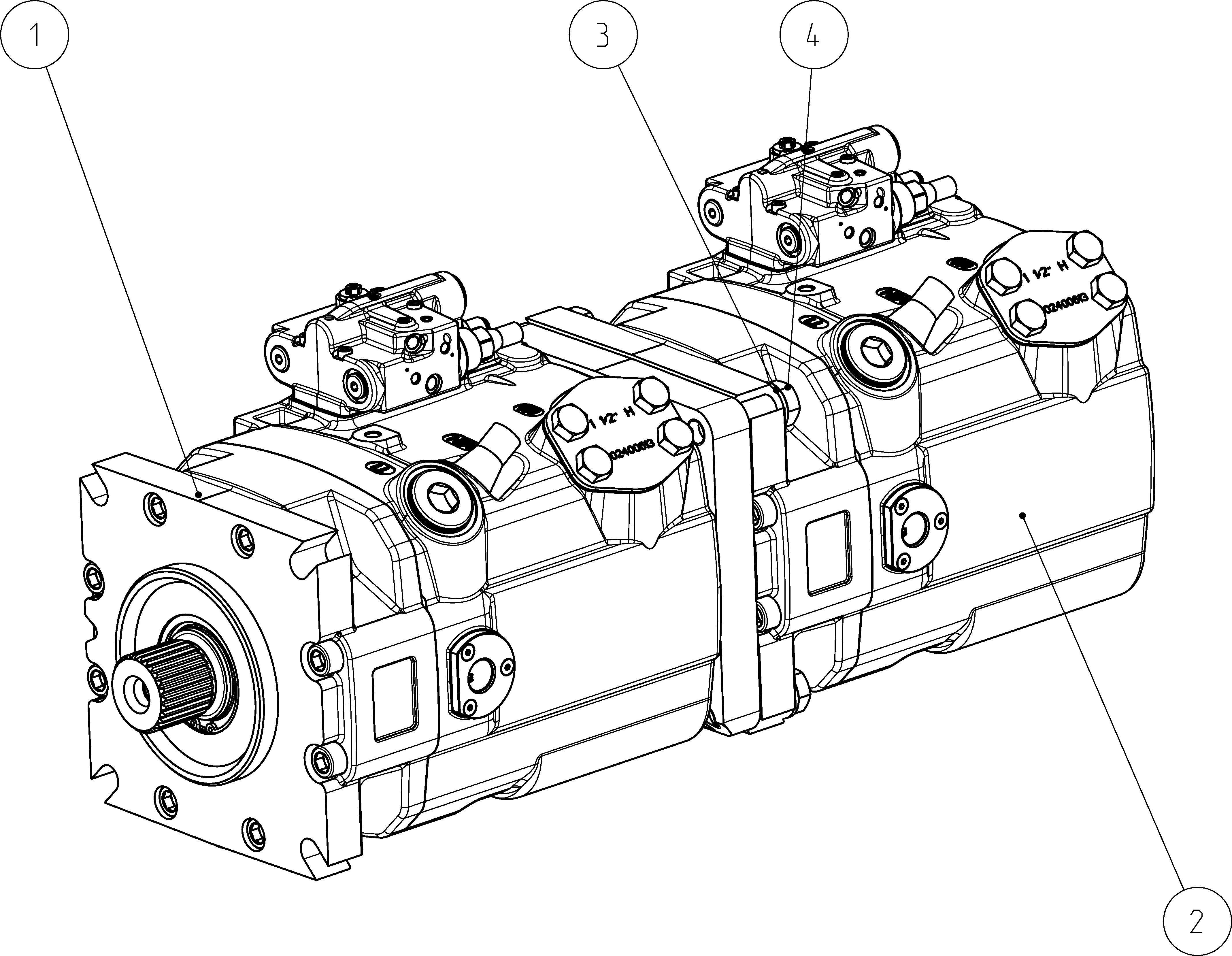

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902556336 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902556338 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650194 | WASHER | 4 | ||
| R910105104 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar | A15V |
| Operating mode | Pump, Without charge pump open circuit | SO |
| Size (NG) | 280 | 280 |
| Depressurized basic position and external control pressure supply | Basic position maximum swivel angle (Vg max), without external control pressure supply (standard for power and pressure controllers) | A |
| Connector for solenoids | Without connector (without solenoid, only for hydraulic control) | 0 |
| Swivel angle sensor | Optical swivel angle indicator (only for A15VSO) | V |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN | M |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
