Unit · AXIAL-PISTON PUMP
LA11VO110E2DRBP0/40MLVD4A11EU0000-0R902556750
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO110E2DRBP0/40MLVD4A11EU0000-0, material number R902556750. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: SAE J744 ‒ 4-hole (D).
- Number
- R902556750
- Type code
- LA11VO110E2DRBP0/40MLVD4A11EU0000-0
- Group
- A11VO 110
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

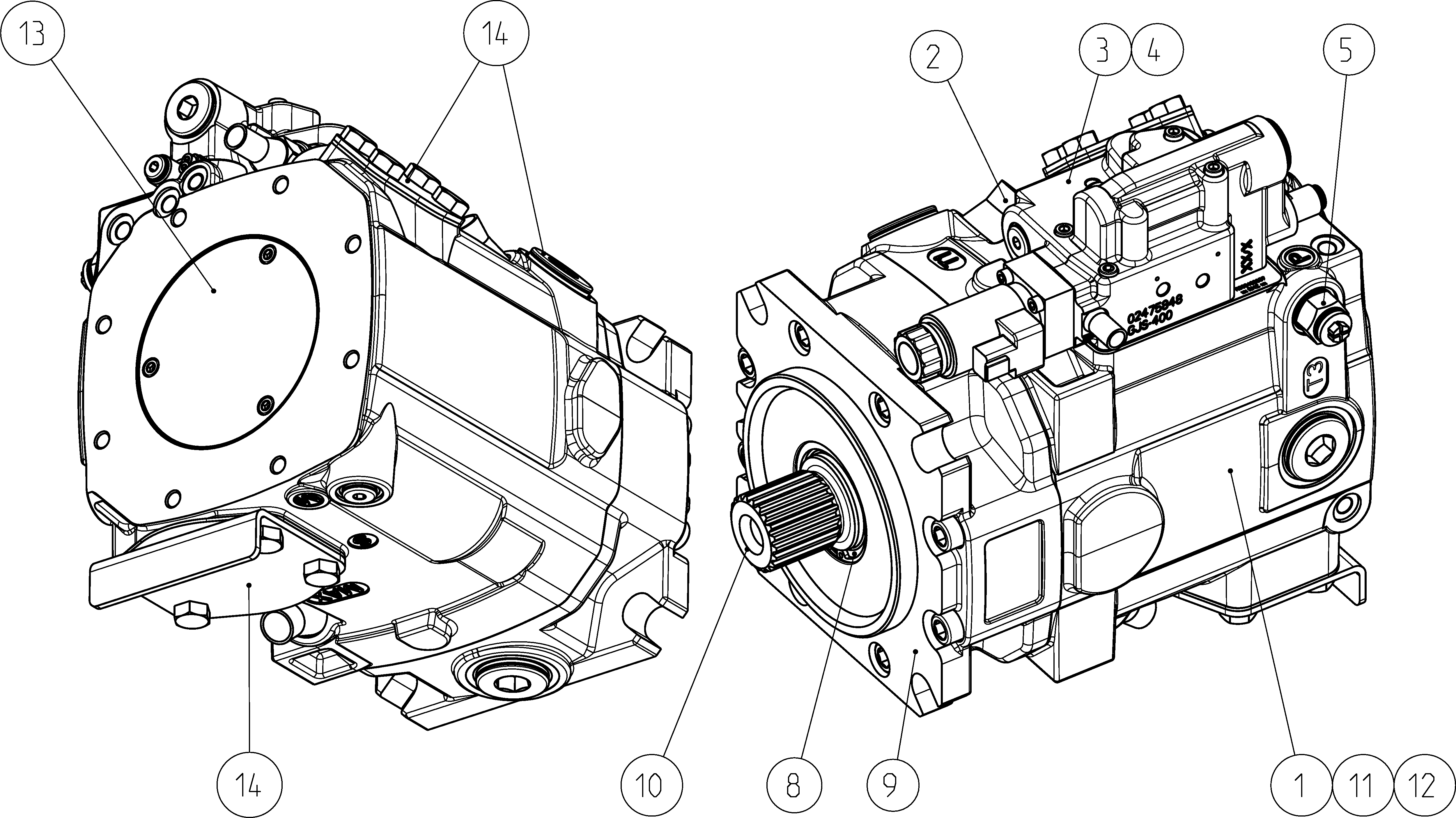

| R902556751 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 110 | 110 |
| Index | Size 40 … 130 | 0 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | SAE J744 ‒ 4-hole | D |
