Unit · AXIAL-PISTON PUMP
LA11VO175DRS0A00/40MRVE4T11EU0000-SR902556762
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO175DRS0A00/40MRVE4T11EU0000-S, material number R902556762. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: pressure controller with load-sensing (DRS). Drive shaft: splined shaft ANSI B92.1a‒1976 for combination pump (T). Standard/special version: special version (S).
- Number
- R902556762
- Type code
- LA11VO175DRS0A00/40MRVE4T11EU0000-S
- Group
- A11VO 175
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

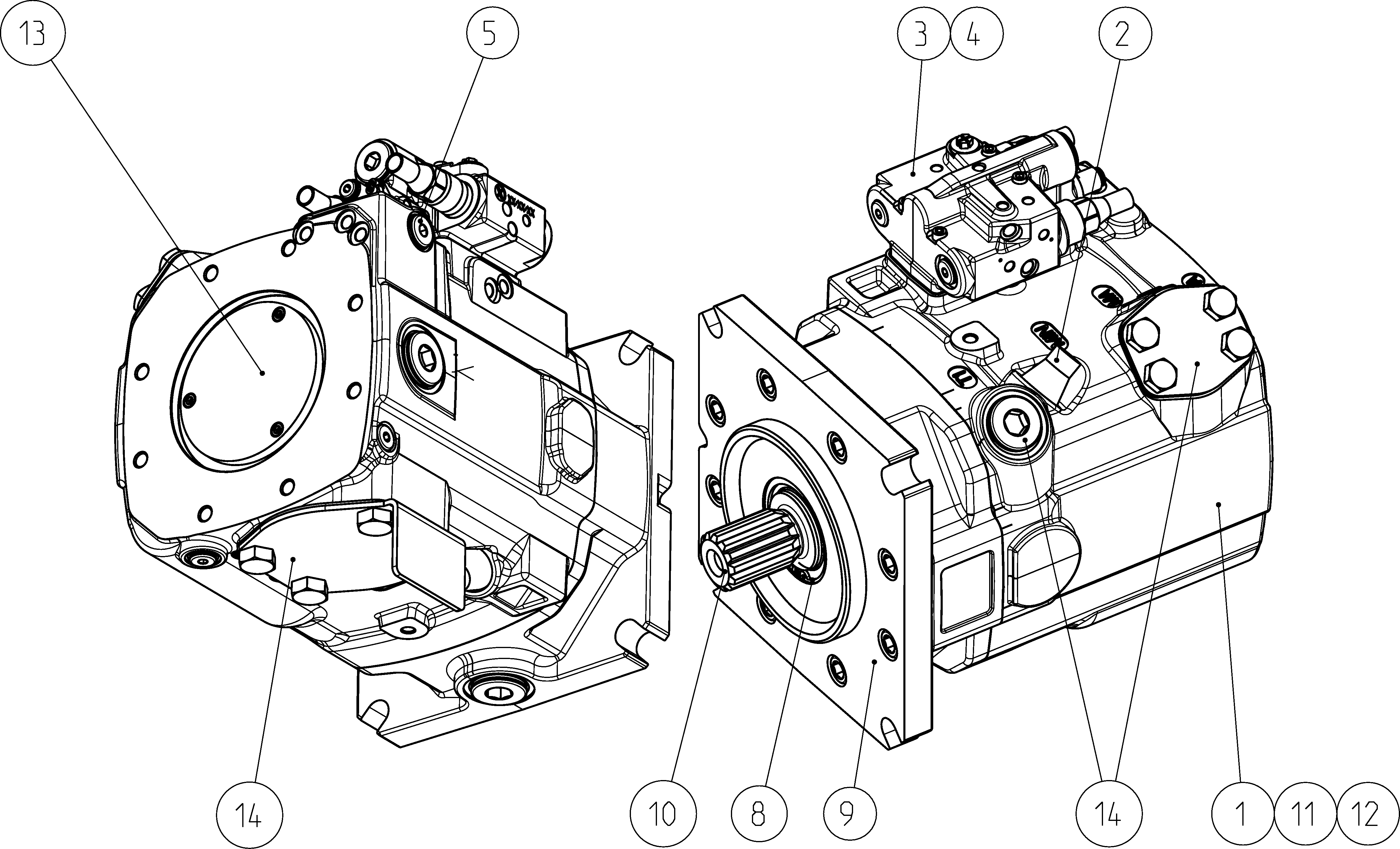

| R902556763 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 175 | 175 |
| Control device | Pressure controller with load-sensing | DRS |
| Index | Size 40 … 130 | 0 |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for combination pump | T |
| Standard/special version | Special version | S |
