Unit · BASE UNIT
GE A10VSO140 OV /31R-PSB12N00 LRR902557386
Base unit Bosch Rexroth series A10VSO, type code GEA10VSO140OV/31R-PSB12N00LR, material number R902557386. Nominal size: NG 140. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902557386
- Type code
- GE A10VSO140 OV /31R-PSB12N00 LR
- Group
- A10VSO 140
- Edition
- 06/2020

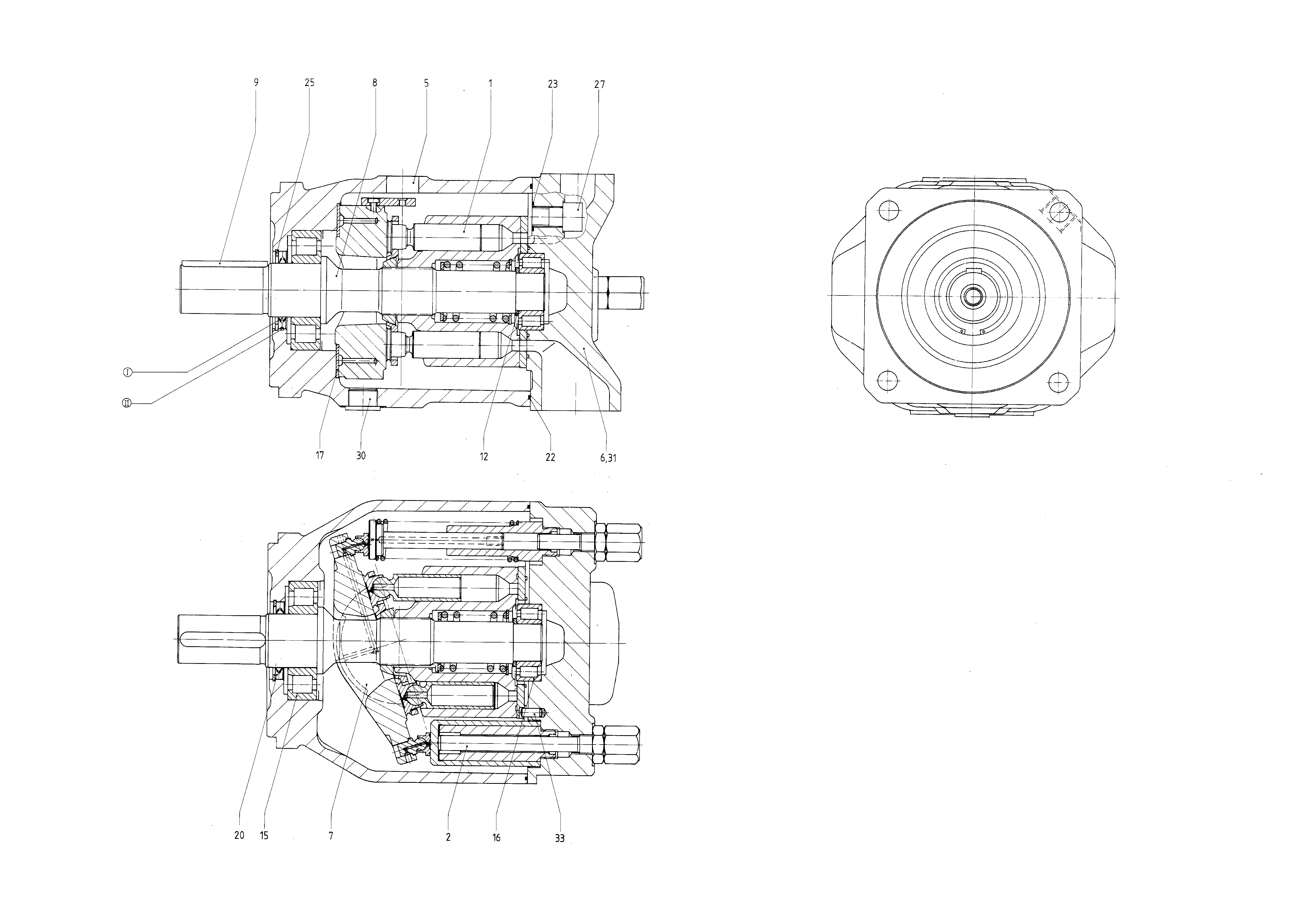

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483660 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538158 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910962417 | PUMP HOUSING | 1 | ||
| R902534416 | CONNECTION PLATE | 1 | ||
| R910961083 | SWASH PLATE | 1 | ||
| R902558259 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910934966 | CYL. ROLLER BEARING | 1 | ||
| R910931557 | CYL. ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910931540 | SHAFT SEALING RING | 1 | ||
| R910930460 | O-RINGD | 1 | ||
| R913053033 | R-RINGD | 4 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
