Unit · BASE UNIT
GA10VZG008OV/10W-VSC03N00R902558566
Base unit Bosch Rexroth series A10FZO, type code GA10VZG008OV/10W-VSC03N00, material number R902558566. Nominal size: NG 8. Axial piston unit: swashplate design, variable (A10V). Application area: variable-speed drives (Z). Sealing material 003: FKM (fluorocarbon rubber) (V). Drive shaft 003: splined shaft standard shaft ISO 3019-1 (S). Through drive: without through drive (N00).
- Number
- R902558566
- Type code
- GA10VZG008OV/10W-VSC03N00
- Group
- A10VZG 8
- Edition
- 06/2020

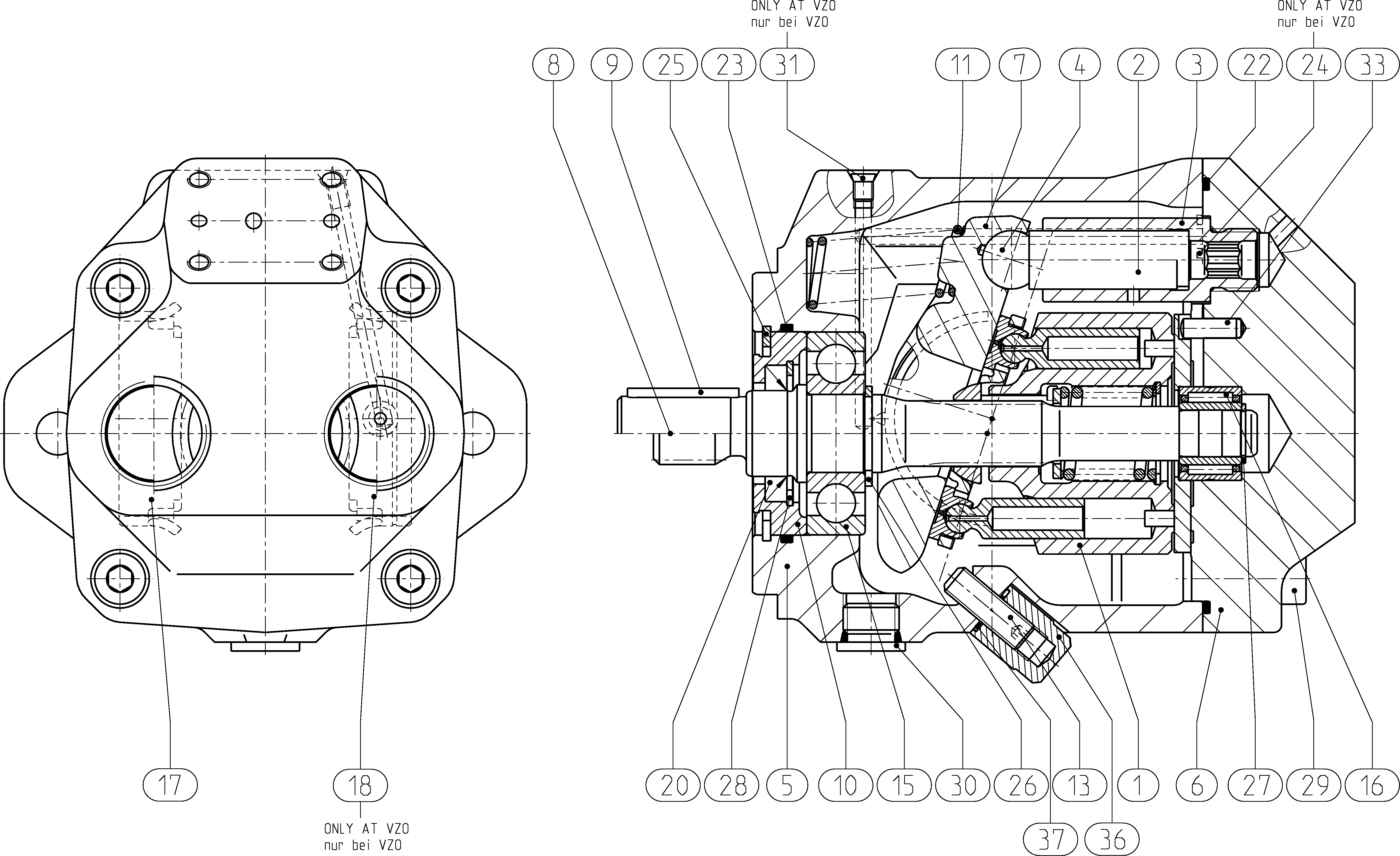

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902543707 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910989745 | ADJUSTING PISTON | 1 | ||
| R910984013 | PISTON GUIDE | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902543334 | PUMP HOUSING | 1 | ||
| R902543333 | CONNECTION PLATE | 1 | ||
| R902543335 | SWASH PLATE | 1 | ||
| R902413728 | DRIVE SHAFT | 1 | ||
| R910987961 | SEALING FLANGE | 1 | ||
| R910984023 | COMPRESSION SPRING | 1 | ||
| R910918608 | SETSCREW | 1 | ||
| R910984871 | DEEP-GROOVE BALL BEARING | 1 | ||
| R910984012 | NEEDLE BEARING | 1 | ||
| R910972683 | BEARING SHELL | 2 | ||
| R902400728 | ROTARY SHAFT LIP SEALD | 1 | ||
| R902650501 | O-RINGD | 1 | ||
| R910977816 | O-RINGD | 1 | ||
| R910791555 | V-RING | 1 | ||
| R910984021 | RETAINING RING | 1 | ||
| R910984872 | V-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110183 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R910757519 | STRAIGHT PIN | 1 | ||
| R902493938 | CAP NUT | 1 | ||
| R910642827 | BONDED SEAL RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A10V |
| Application area | Variable-speed drives | Z |
| Size (NG) | 8 | 008 |
| Series | Series 1, index 0 | 10 |
| Sealing material 003 | FKM (fluorocarbon rubber) | V |
| Drive shaft 003 | Splined shaft standard shaft ISO 3019-1 | S |
| Through drive | without through drive | N00 |
