Unit · CONTROL
V A4VSO 500 HDGB /30R -VR902560806
Control Bosch Rexroth series A4VSO, type code VA4VSO500HDGB/30R-V, material number R902560806. Nominal size: NG 500. Axial piston unit: swashplate design, variable (A4VSO). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902560806
- Type code
- V A4VSO 500 HDGB /30R -V
- Group
- A4VSO 500
- Edition
- 06/2020

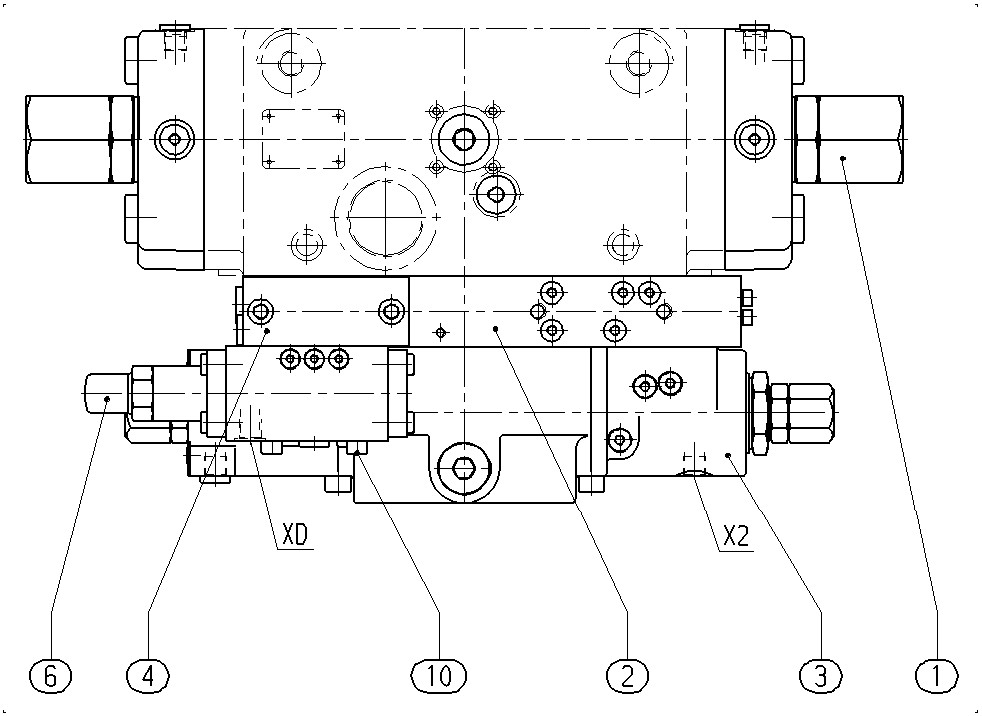

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971764 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902513665 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910931555 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910928162 | PLATE Assembly parts list →L | 1 | ||
| R910960925 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A4VSO |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| With remote pressure control in B | GB | |
| Series | Series 3, index 0 | 30 |
