Unit · BASE UNIT
GAA4VSO40M/10R-VSD63N00-SO859R902561153
Base unit Bosch Rexroth series A4VSO, type code GAA4VSO40M/10R-VSD63N00-SO859, material number R902561153. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Through drive: without through drive and auxiliary pump (N00). Special version no. 859.
- Number
- R902561153
- Type code
- GAA4VSO40M/10R-VSD63N00-SO859
- Group
- A4VSO 40
- Edition
- 06/2020

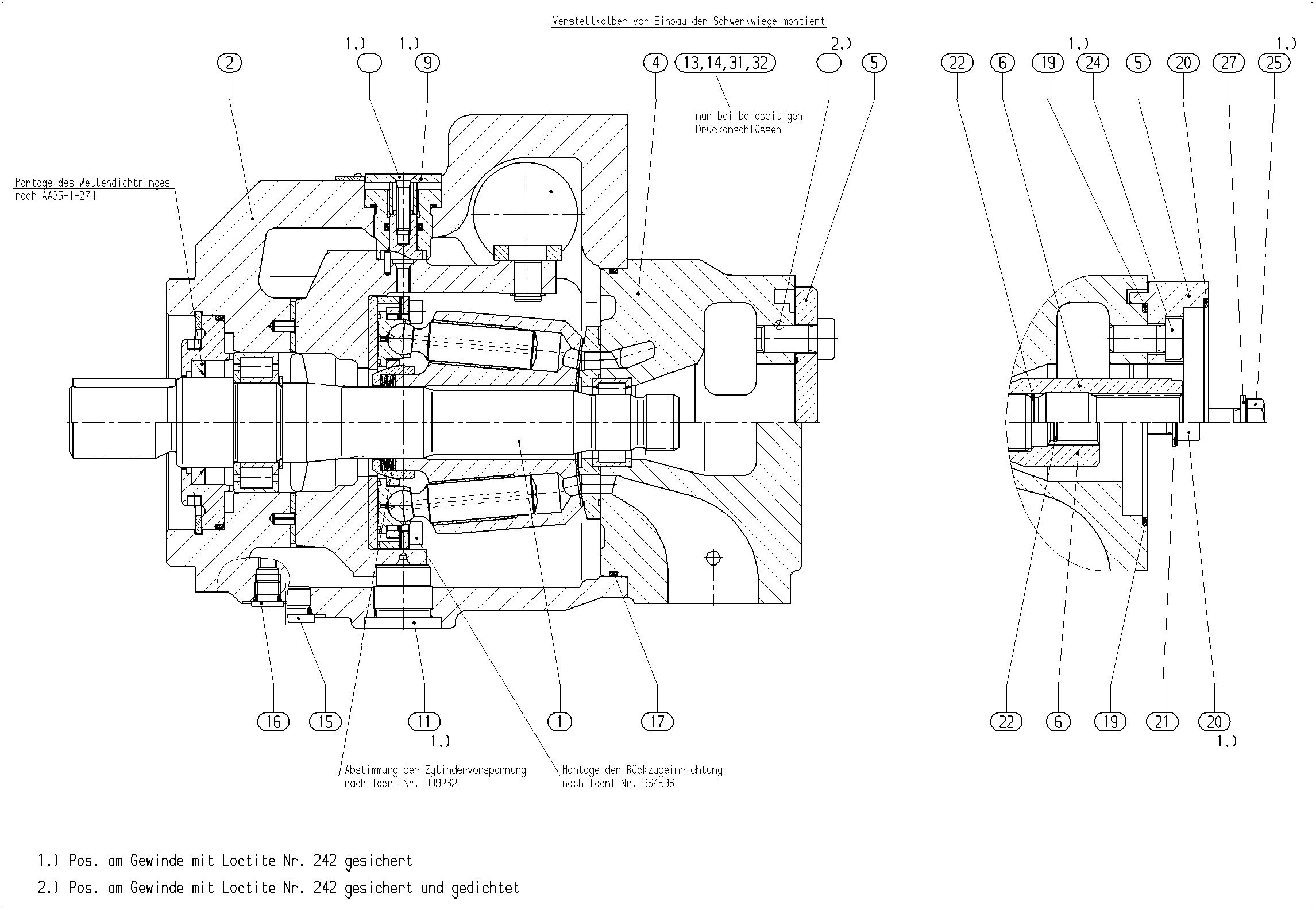

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902421482 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910944637 | CONNECTION PLATE | 1 | ||
| R910904271 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910904272 | STUD BOLT Assembly parts list →L | 1 | ||
| R910126594 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 3 | ||
| R910764647 | SCREW PLUGD | 1 | ||
| R910186961 | O-RINGD | 1 | ||
| R909156654 | SCREW PLUG | 1 | ||
| R909153930 | SCREW PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 40 | 40 |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Through drive | without through drive and auxiliary pump | N00 |
