Unit · AXIAL-PISTON PUMP
P A4VSG 71 HD1T /11R-PZB10K310NR902562610
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG71HD1T/11R-PZB10K310N, material number R902562610. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 4-hole 32×2×14×9g (K31). Valves: without valve block (0). Filtration: without filter (N).
- Number
- R902562610
- Type code
- P A4VSG 71 HD1T /11R-PZB10K310N
- Group
- A4VSG 71
- Edition
- 06/2020

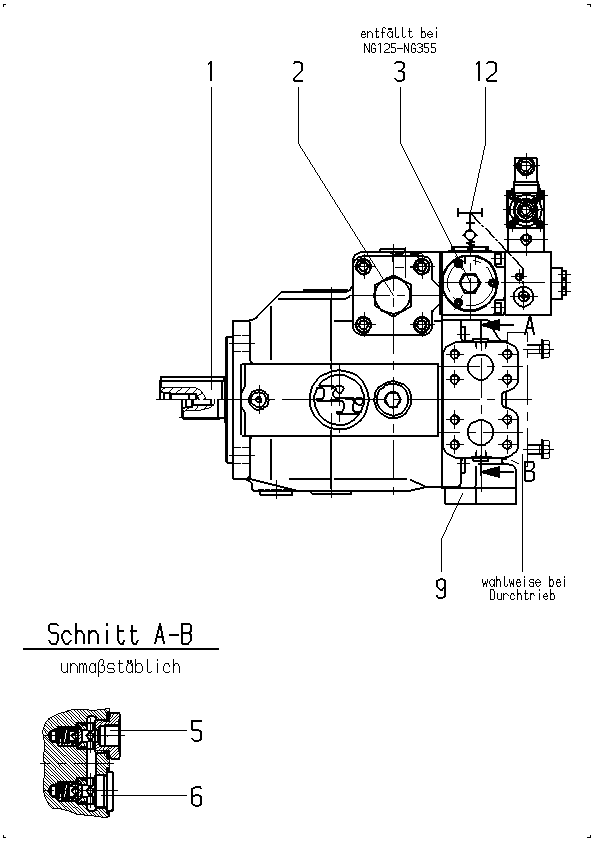

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902562612 | BASE UNIT Assembly parts list →L | 1 | ||
| R902562609 | CONTROL Assembly parts list →L | 1 | ||
| R910920956 | SPRING PACK Assembly parts list →L | 1 | ||
| R910925136 | VALVE MOUNTING KIT | 1 | ||
| R910925179 | VALVE MOUNTING KIT | 1 | ||
| 8 | R910926624 | PIPING PLAN Assembly parts list →L | 1 | |
| R902412338 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 2 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 64 | R902602010 | SEAL SCREW | 1 | |
| 71 | R902430609 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R910723126 | PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 125, 4-hole 32×2×14×9g | K31 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
