Unit · BASE UNIT
GA4VSG355K/30R-VZB10KB4R902564897
Base unit Bosch Rexroth series A4VSG, type code GA4VSG355K/30R-VZB10KB4, material number R902564897. Nominal size: NG 355. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 100, 2-hole 1 in 15T 16/32DP (KB4).
- Number
- R902564897
- Type code
- GA4VSG355K/30R-VZB10KB4
- Group
- A4VSG 355
- Edition
- 07/2020

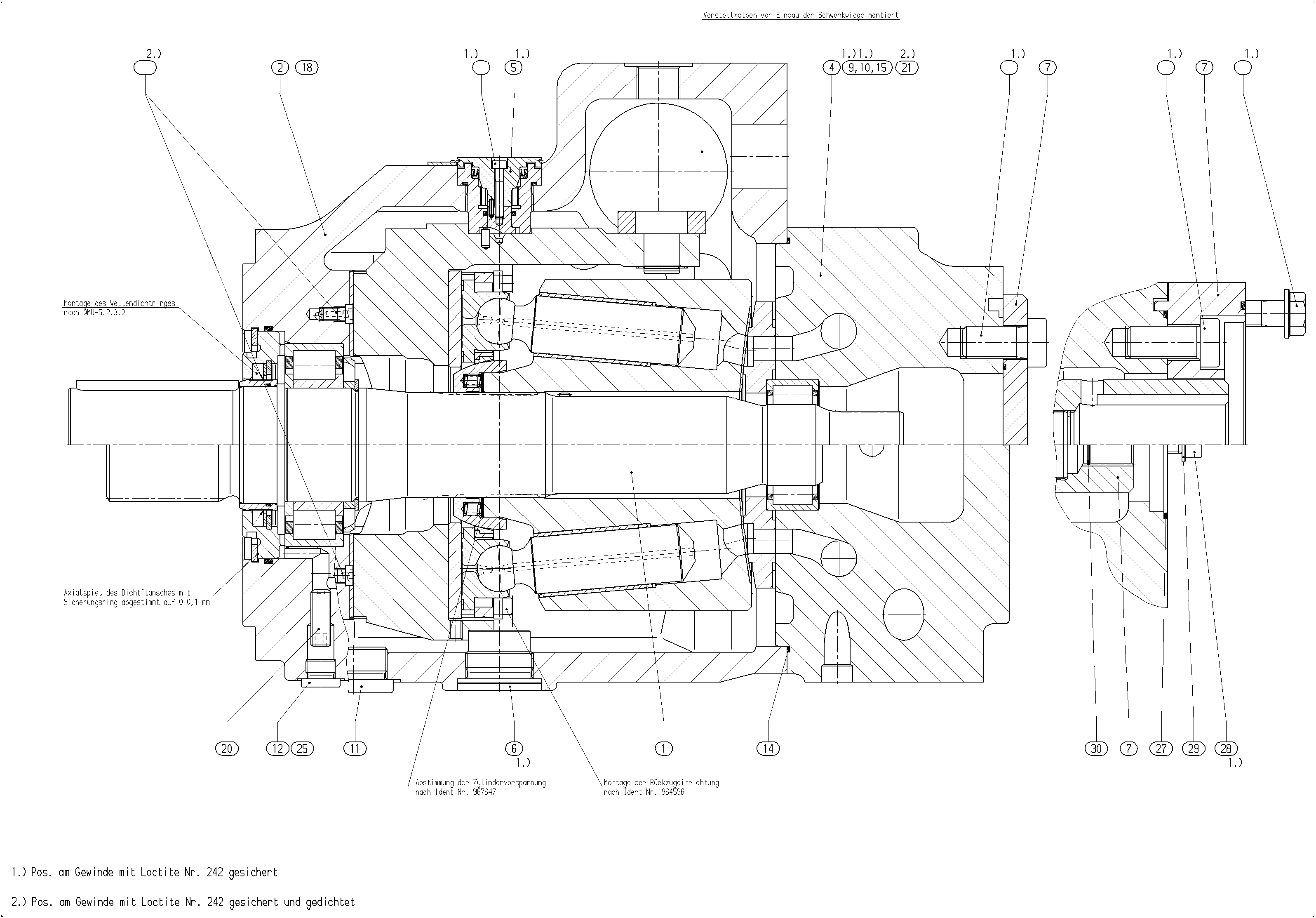

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998199 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910993566 | PUMP HOUSING | 1 | ||
| R902564898 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910970633 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910963097 | STUD BOLT Assembly parts list →L | 1 | ||
| R902497519 | SPLINED COUPLING | 1 | ||
| R910924900 | SOCKET HEAD CAP SCREW | 4 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 4 | ||
| R910942229 | SCREW PLUGD | 3 | ||
| R909156651 | SCREW PLUG | 1 | ||
| R910940898 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910993564 | THROTTLE SCREW | 1 | ||
| R910834491 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 | ||
| R910936812 | O-RING | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650190 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 355 | 355 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 100, 2-hole 1 in 15T 16/32DP | KB4 |
