Unit · AXIAL-PISTON PUMP
LA28VLO280D21CPK/11CRVE4A4PB3S40-SR902565481
Axial piston pump Bosch Rexroth series A28VLO, type code LA28VLO280D21CPK/11CRVE4A4PB3S40-S, material number R902565481. Axial piston unit 280: variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar Painted ● (LA28V). Operating mode 280: pump, open circuit With charge pump ● (LO). 2nd pump control device: identical to 1st pump (1). Depressurized basic position and external control pressure supply: basic position minimum swivel angle (Vg min), with external control pressure supply (integrated shuttle valve, standard for positive stroke control) (C). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: with electric swivel angle sensor Power supply 8 V – 32V DC (K). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: SAE J744 165-4 (E4). Drive shaft: splined shaft DIN 5480 W60x2x28x9g (A4). Rotary group version: premium version, efficiency and speed optimized (P). Speed sensor 280: without sensor (0). Standard/special version 280: special version (S).
- Number
- R902565481
- Type code
- LA28VLO280D21CPK/11CRVE4A4PB3S40-S
- Group
- A28VLO 280
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

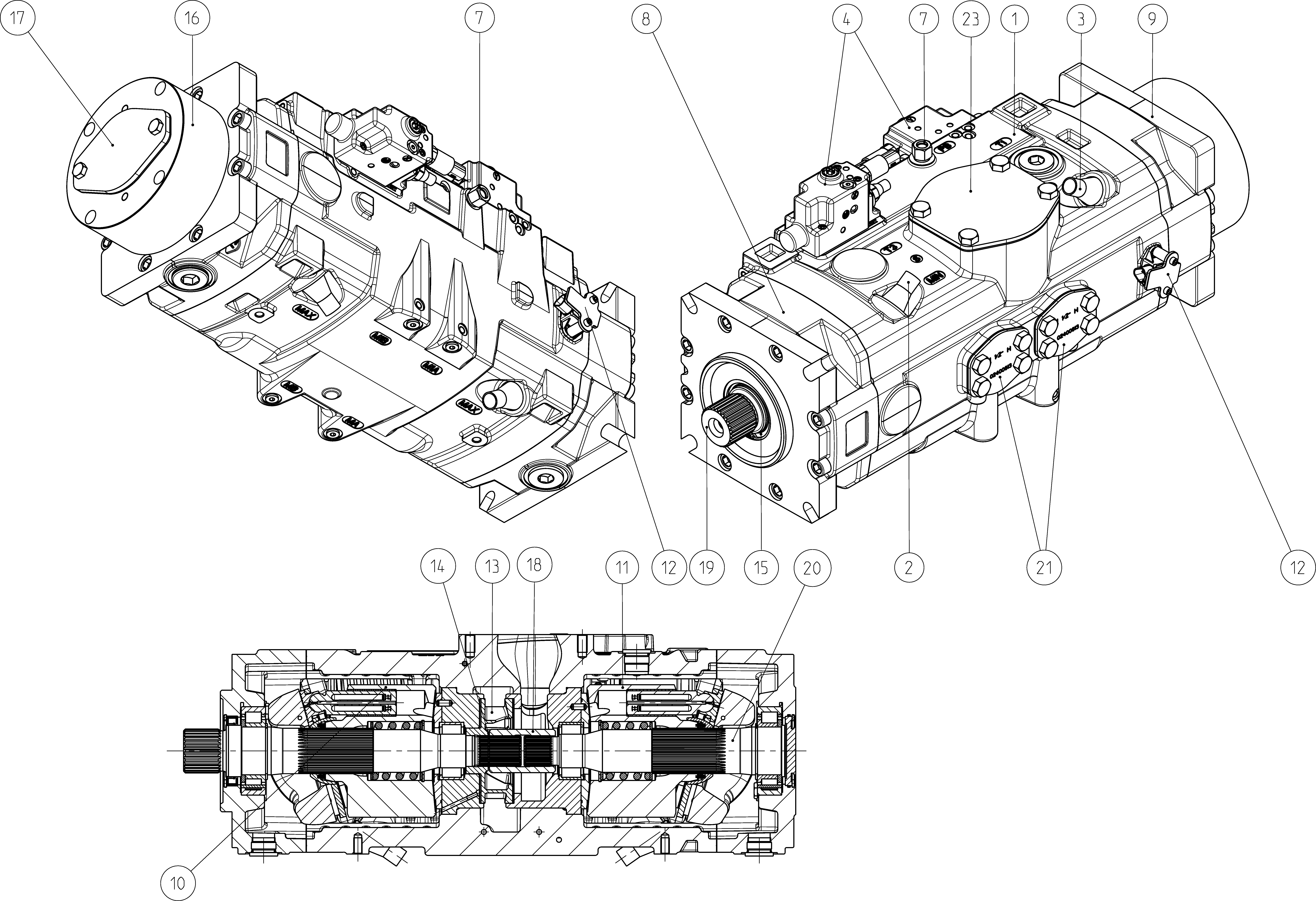

| R902565482 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit 280 | Variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar Painted ● | LA28V |
| Operating mode 280 | Pump, open circuit With charge pump ● | LO |
| 2nd pump control device | Identical to 1st pump | 1 |
| Depressurized basic position and external control pressure supply | Basic position minimum swivel angle (Vg min), with external control pressure supply (integrated shuttle valve, standard for positive stroke control) | C |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | With electric swivel angle sensor Power supply 8 V – 32V DC | K |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | SAE J744 165-4 | E4 |
| Drive shaft | Splined shaft DIN 5480 W60x2x28x9g | A4 |
| Rotary group version | Premium version, efficiency and speed optimized | P |
| Speed sensor 280 | Without sensor | 0 |
| Standard/special version 280 | Special version | S |
