Unit · CONTROL
V A6V M 1000 HD3 /63-V157E -SO128R902571729
Control Bosch Rexroth series A6VM, type code VA6VM1000HD3/63-V157E-SO128, material number R902571729. Nominal size: NG 1000. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 35 bar (HD3). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 (157). Swivel angle sensor: electric swivel angle sensor (E). Standard/special version: special version (-S). Special version no. 128.
- Number
- R902571729
- Type code
- V A6V M 1000 HD3 /63-V157E -SO128
- Group
- A6VM 1000
- Edition
- 06/2020

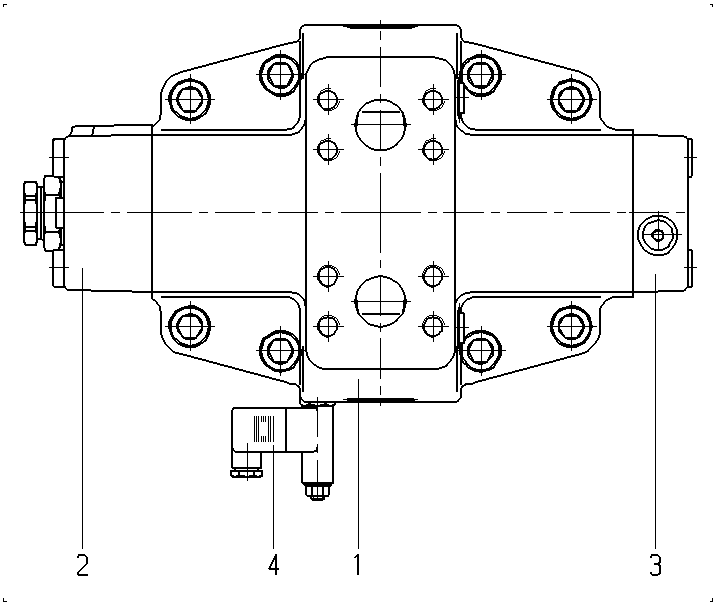

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902495376 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902446338 | CONTROL PART Assembly parts list →L | 1 | ||
| R910975363 | COVER Assembly parts list →L | 1 | ||
| R910963273 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 1000 | 1000 |
| Control device | Proportional control, hydraulic ΔpSt = 35 bar | HD3 |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite + at rear Flushing and boost-pressure valve, mounted 7 | 157 |
| Swivel angle sensor | Electric swivel angle sensor | E |
| Standard/special version | Special version | -S |
