Unit · DIRECTIONAL-CONTROL VALVE
G A10V O 85 OV /52L-VRC12K04 -SO 97R902574558
Axial piston pump Bosch Rexroth series A10VO, type code GA10VO85OV/52L-VRC12K04-SO97, material number R902574558. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 97.
- Number
- R902574558
- Type code
- G A10V O 85 OV /52L-VRC12K04 -SO 97
- Group
- A10VO 85
- Edition
- 06/2020

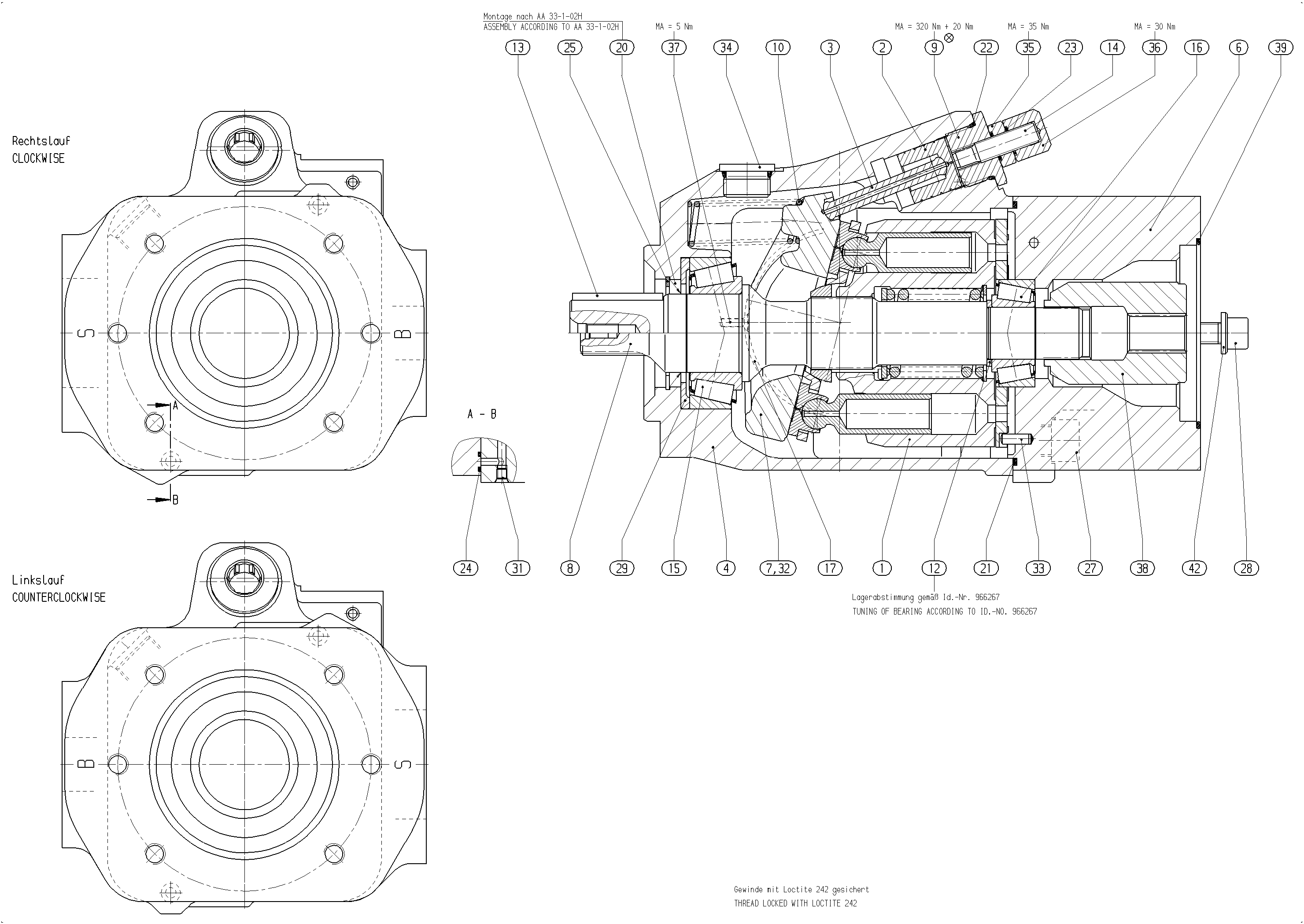

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902473199 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R902407504 | PUMP HOUSING | 1 | ||
| R902412519 | CONNECTION PLATE | 1 | ||
| R902443501 | SWASH PLATE | 1 | ||
| R902422403 | DRIVE SHAFT | 1 | ||
| R902566187 | SCREW PLUG | 1 | ||
| R910573345 | COMPRESSION SPRING | 1 | ||
| 11 | R902436105 | SPLINED COUPLING | 1 | |
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902532356 | STOP SCREW | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910990277 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R913052062 | O-RINGD | 1 | ||
| R910973148 | O-RING | 1 | ||
| R910919314 | O-RING | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R902402391 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910925530 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902426516 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910903349 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910640182 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
