Unit · BASE UNIT
G A10V M 85 OV /52W1-VRC10N000 -SO969R902575538
Base unit Bosch Rexroth series A10VM, type code GA10VM85OV/52W1-VRC10N000-SO969, material number R902575538. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side (10N00). Valves: without valve (0). Special version no. 969.
- Number
- R902575538
- Type code
- G A10V M 85 OV /52W1-VRC10N000 -SO969
- Group
- A10VM 85
- Edition
- 07/2020

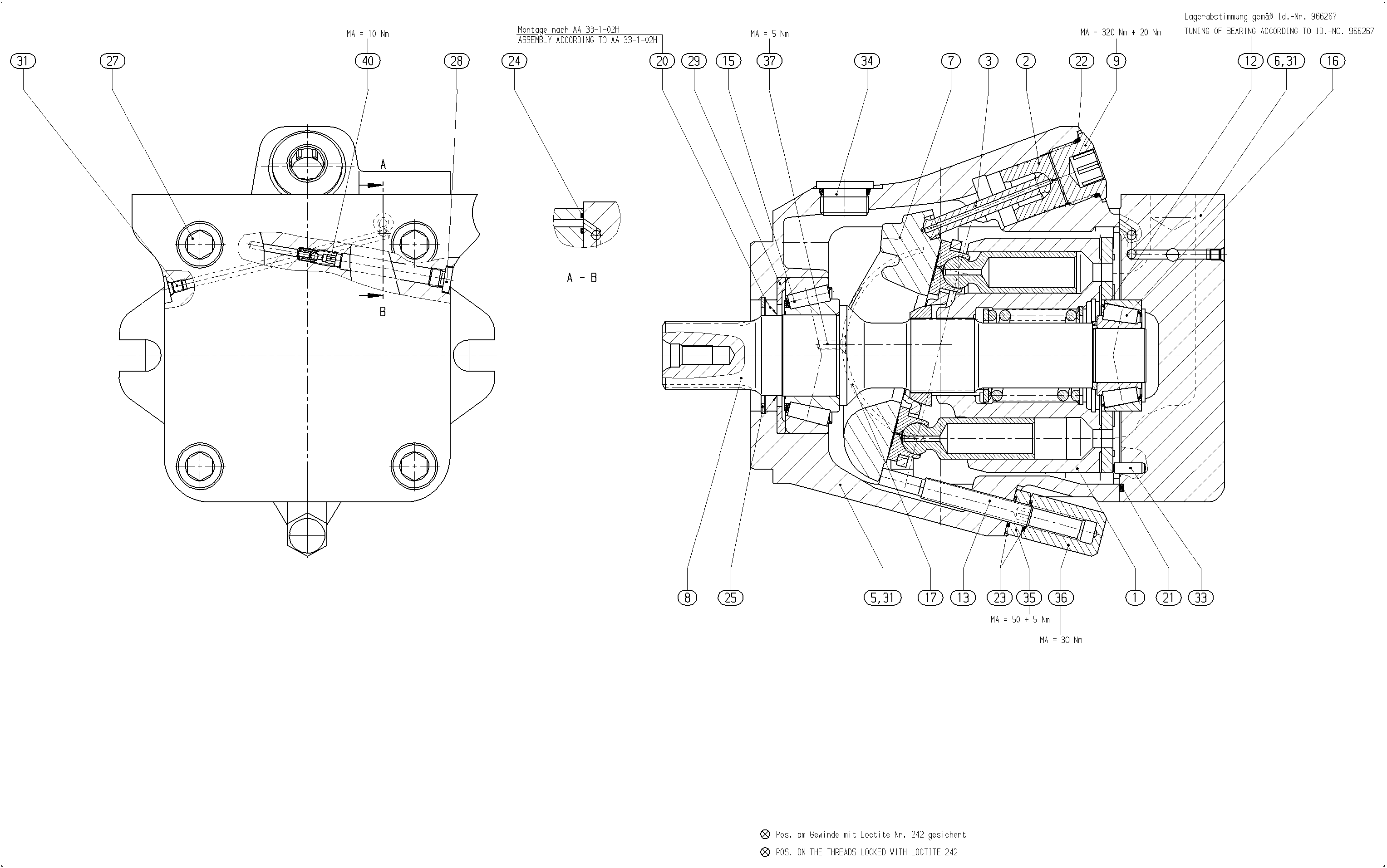

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998961 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R902423357 | MOTOR HOUSING | 1 | ||
| R902575539 | CONNECTION PLATE | 1 | ||
| R902443497 | SWASH PLATE | 1 | ||
| R902422477 | DRIVE SHAFT | 1 | ||
| R902447584 | SCREW PLUG | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902410509 | STOP SCREW | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910990277 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R913052062 | O-RINGD | 1 | ||
| R910919314 | O-RING | 2 | ||
| R910942133 | R-RINGD | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R902402391 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910989878 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 85 | 85 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side | 10N00 |
| Valves | Without valve | 0 |
