Unit · AXIAL-PISTON MOTOR
A2F28W3Z8R909069721
Axial piston motor Bosch Rexroth series A2FM, type code A2F28W3Z8, material number R909069721. Axial piston unit: bent-axis design, fixed displacement (A2F).
- Number
- R909069721
- Type code
- A2F28W3Z8
- Group
- A2F 28
- Edition
- 01/2019

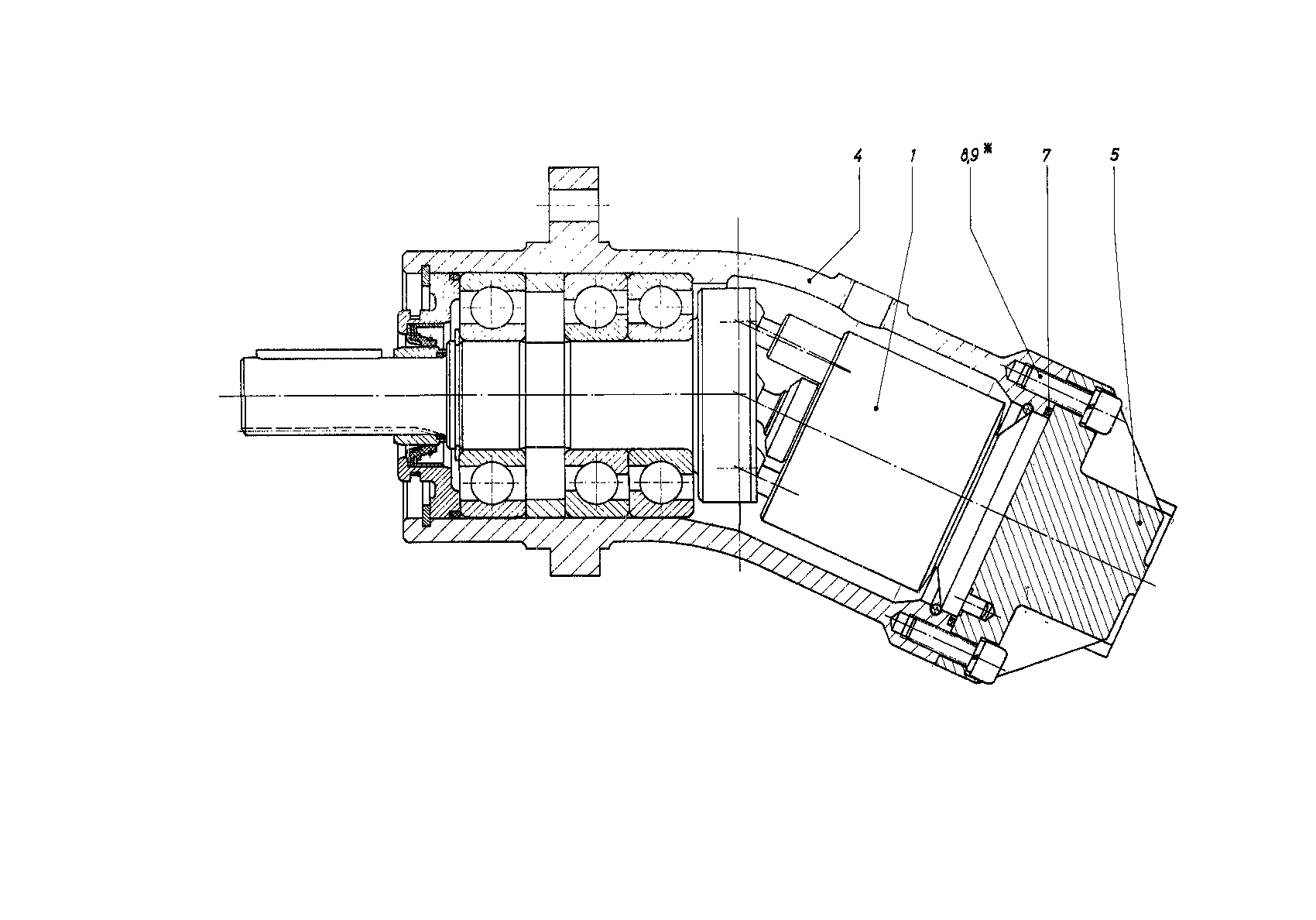

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909066748 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909066744 | HOUSING | 1 | ||
| R909060395 | CONNECTION PLATE | 1 | ||
| R909084461 | O-RINGD | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083250 | SPRING LOCK WASHER | 6 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, fixed displacement | A2F |
